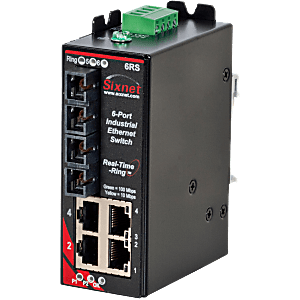

High-speed 6-port managed Ethernet switch for industrial connectivity
Item number SLX-6RS-5SC-D1
The Sixnet® 6-port Managed Industrial Ethernet Switch enables fast Ethernet connectivity for industrial equipment in extreme industrial settings. Rugged and high-performing with a range of advanced control, monitoring and security features deployable through a web browser. Four 10/100BaseTX RJ-45 ports and two 100BaseFX singlemode 20km fibers ports with SC connectors.
Deliver outstanding switch performance to maritime, oil & gas, transportation, utility and energy applications. Well suited for use as a fiber optic ring manager or an aggregation switch.
Durable, hardened metal DIN-rail mountable enclosures offer extended shock and vibration protection and electrical noise and surge immunity. Suitable for the most demanding industrial environments.
Connect devices to up to 6 ports, including four 10/100BaseTX copper ports and two 100BaseFX singlemode 20km fibers ports with SC connectors.
Auto-sensing for speed, flow and MDIX. Ethernet switching technology makes RJ-45 ports full/half duplex capable.
Ffeatures are easily configurable from a web browser or CLI management. Set up RSTP/MSTP, VLAN, priority queuing, IGMP, SNMP, RMON and port mirroring to your specifications.
Route Ethernet messages only out the appropriate port and enable priority queuing (QoS/CoS/DS). Broadcast and multicast with storm protection.
Real-Time Ring technology and Rapid Spanning Tree Protocol (RSTP) provide network redundancy. Monitor ring and spanning tree health status via web browser.
Stay informed about switch health and power using LED status indicators and configurable alarm output.
IEEE 802.3 compliance. Suitable for hazardous environments with UL Class I, Division 2 listing and CE and CSA certifications. ABS Type approval for shipboard applications. Over 1 million hours MTBF and operating temperature of -40 °C to 85 °C.
Monitor power, port and ring status through a web browser in real time using Modbus/TCP monitoring.
Port-based MAC address filtering and HTTPS, SSH, SSL and SNMPv3 protocols deliver a high level of security to your network connections. Supports up to 2048 MAC addresses.
Dual redundant power inputs (10-30 VDC) with surge protection.
