Communicate securely across your network with fast performance and versatile connectivity.
Item number NT24K-10GX2-SC

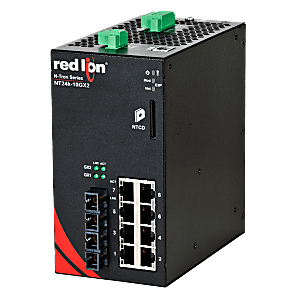

The N-Tron® NT24k 10-Port Managed Gigabit Industrial Ethernet Switch is one of the easiest to deploy Ethernet switches in the industry. Simplified use, uncompromised performance and multiple configurations to fit your automation and industrial needs. Eight copper 10/100/1000BaseTX ports and two 1000BaseFX 550m, multimode fiber ports with SC connectors.
Operates in extreme temperatures from -40° C to 85° C along with high shock and vibration tolerance. Designed to handle the most demanding environments.
Eight 10/100/1000BaseTX RJ-45 ports and two 1000BaseFX multimode fiber ports with SC connectors
Auto-sensing for MDIX, speed and flow control. Supports full/half duplex operation and full wire speed.
The N-Tron NT24k managed Ethernet switch connects industrial operations to data reliably and efficiently. It provides an industry-ready way to move data across industrial networks.
Protect against unauthorized access with built-in security features: IEEE 802.1X port and user authentication (RADIUS), SNMP communication protocols, SSH/SSL/HTTPS, 16,000 MAC addresses and support for event logs and syslogs.
High availability protocols (SNTP/RSTP, N-Ring), VLANs, Quality of Service (QoS), port trunking and mirroring, and IGMP auto-configuration maximize uptime and keep mission critical operations running.
Comes with N-Tron’s N-Ring™ ~30ms healing technology. Pre-configured N-Ring ports make it easy to add new NT24k-series switches. Reconfigure by changing the ring from “auto-member” to “manager.”
Ease of use enhancements make VLAN configurations easier than ever. The graphical display shows a logical view of the switch, including the VLAN port and tag configuration.
Monitor multiple N-View™-capable switches from a single window. This Windows-based software reduces downtime by centralizing firmware management, grouping devices and scheduling firmware updates.
With advanced management, performance and security features provided right out of the box, you have tools you need now—and as your network needs grow.
Suitable for hazardous environments with UL Class I, Division 2 listing and CE certifications. IEEE 1613 and NEMA TS1/TS2 compliance. ABS Type approval for shipboard applications. Over 2 million hours MTBF.
Redundant power input (10-49 VDC). ESD and surge protection diodes on all copper ports.
