Samsung to Modbus TCP/RTU - Up to 16 Indoor Units

Samsung NASA VRF systems to Modbus TCP/RTU Application

Item number IN770AIR00SO000

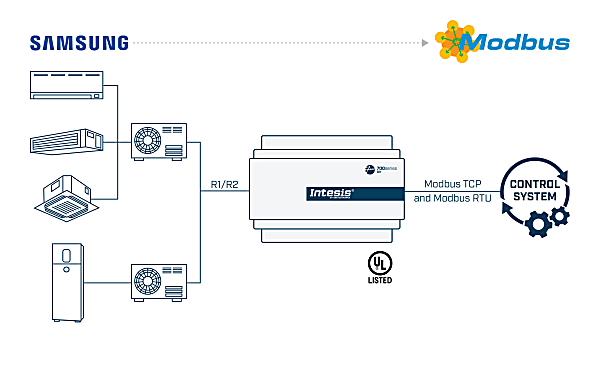

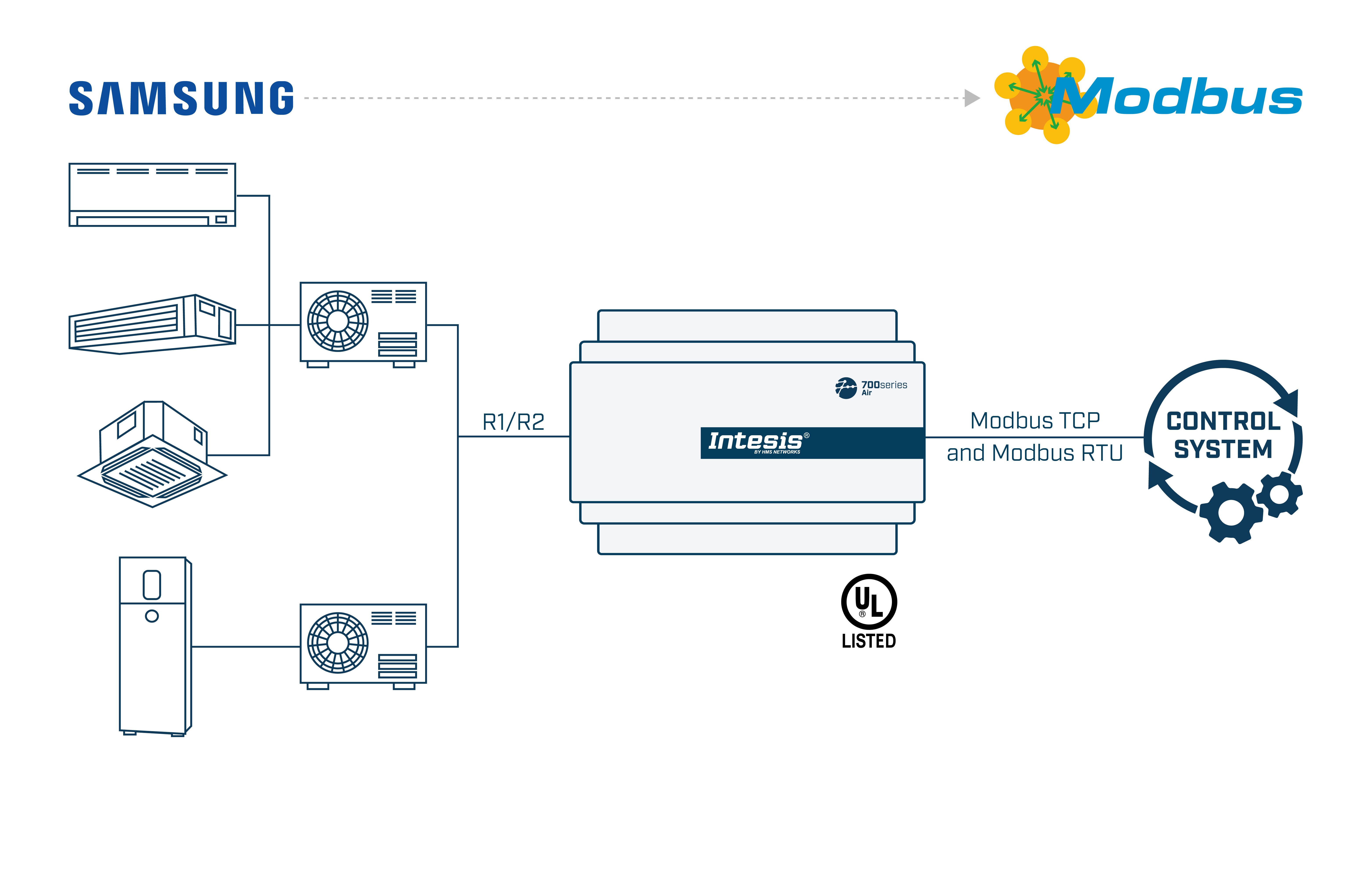

The Samsung application has been specially designed to allow bidirectional control and monitoring of Samsung NASA VRF systems from a BMS, SCADA, PLC, or any other device working as a Modbus client. The solution allows the integration of up to 16 indoor units from a single interface.

Features and benefits

  • Simultaneous Modbus TCP and RTU management

    The gateway is a Modbus server and is able to manage both Modbus TCP and Modbus RTU simultaneously.

  • Direct access to the outdoor unit

    Connection is simple, as the interface connects directly to the outdoor unit’s communication bus.

  • Automatic identification

    A scan function is available for automatic identification of the units present in the VRF system.

  • Outdoor unit signals

    Signals assigned to the outdoor unit are available to be used in the integration.

  • Individual indoor unit energy consumption signals

    Energy consumption signals from each indoor unit are available, so they can be checked individually.

  • Multiple TCP client support

    The interface supports up to 6 TCP clients (incoming sockets).

  • WindFree supported

    This interface supports the WindFree™ Cooling technology and all the advantages it brings.

  • Commissioning-friendly approach with Intesis MAPS

    Templates can be imported and reused as often as needed, significantly reducing commissioning time.

Related Software

Intesis MAPS

Take the complexity out of the integration process: Create your project with a predefined template, configure the needed parameters, enable the desired signals, and check the communication between the gateway and the system.
