Intesis MAPS
Take the complexity out of the integration process: Create your project with a predefined template, configure the needed parameters, enable the desired signals, and check the communication between the gateway and the system.
Daikin to Modbus TCP/RTU - Up to 64 Indoor Units
Item number IN770AIR00MO000
The Daikin application has been specially designed to allow bidirectional control and monitoring of Daikin HVAC (DIII-NET) from a BMS, SCADA, PLC, or any other device working as a Modbus client. The solution allows the integration of up to 64 indoor units from a single interface.
The gateway is a Modbus server and can manage both Modbus TCP and Modbus RTU simultaneously.

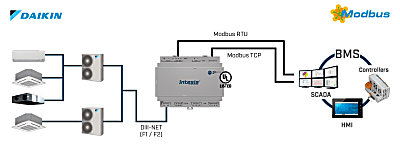

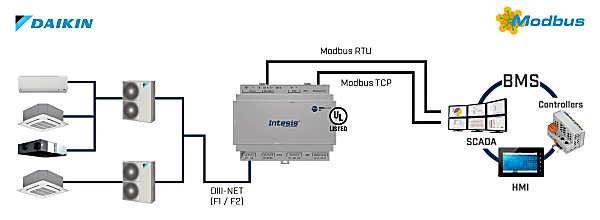

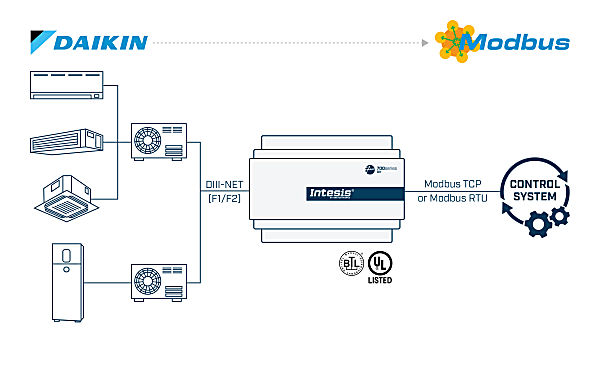

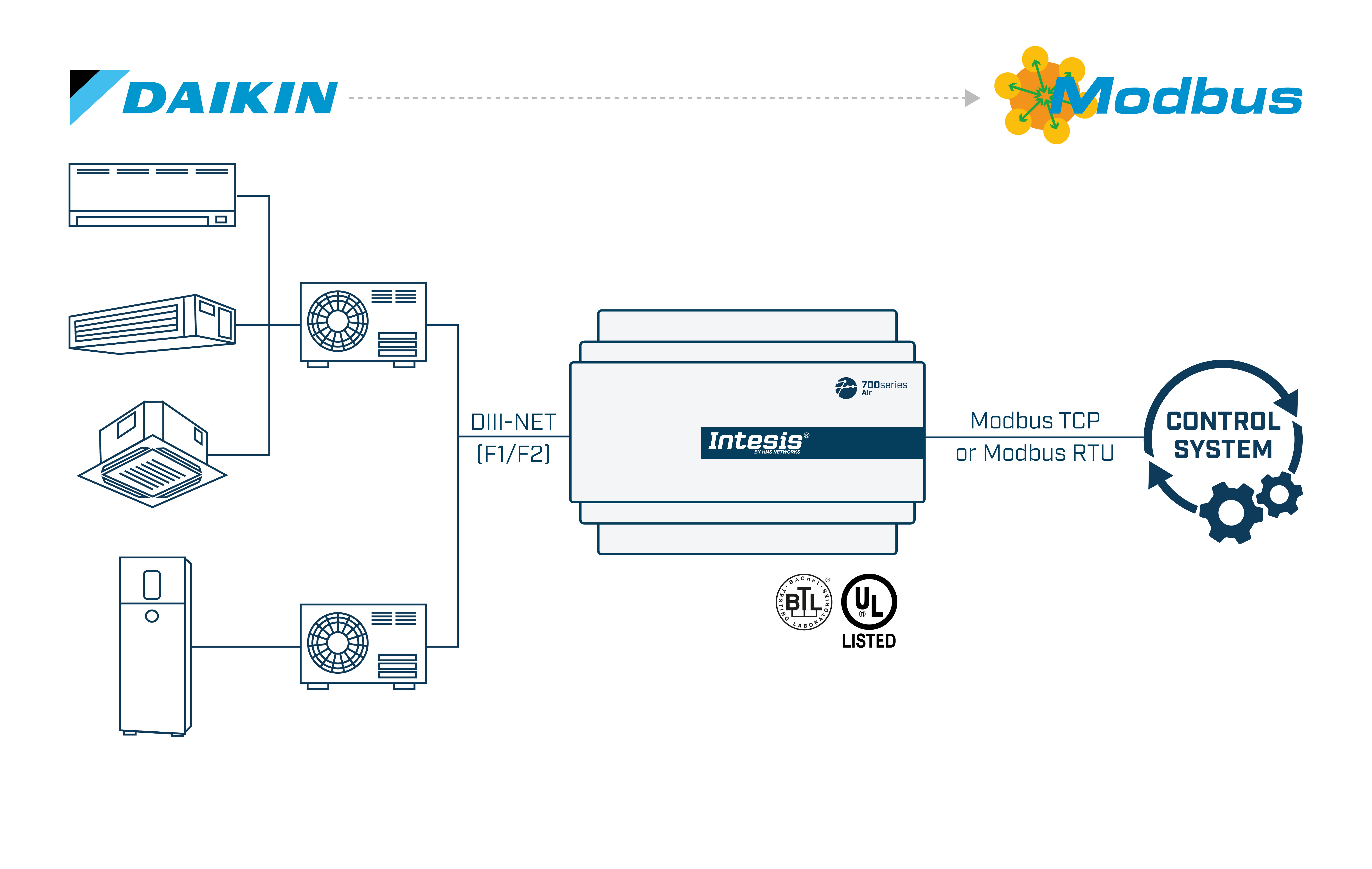

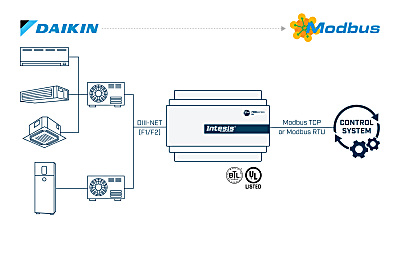

The gateway is connected directly to the outdoor units' communication bus. One single gateway enables centralized access to the entire HVAC system.
Scan the bus and find all the units connected to the HVAC system with their control signals, including outdoor unit indicators.
The gateway's Power Estimation Algorithm allows you to estimate the energy consumption of each indoor unit connected to the DIII-NET.
Choose the license that better fits your needs (XXS - 4 indoor units, S - 16 indoor units, M - 64 indoor units), or upgrade your current license. Your project's dimensions and your budget are covered.
This gateway is compatible with Daikin SKY Air, VRV, VRV Hydro Box, HRV, Air curtains, ERQ control box (connection to 3rd party AHU), Heating, Applied and Split units.
Intesis MAPS is the user-friendly, in-house-developed configuration tool that enables you to maximize the potential of Intesis gateways. Simply select your template and eliminate the need for tedious manual signal mapping.
Both the Intesis MAPS configuration tool and the interface's firmware can receive automatic updates to improve the product's functionality.
