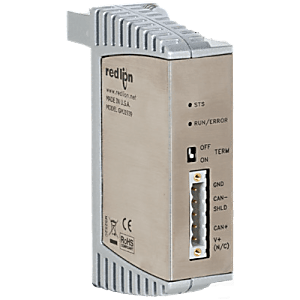

Seamlessly integrate Graphite® HMIs into J1939 protocol networks
Item number GMJ19390
The Graphite J1939 protocol module adds J1939 protocol capability to your HMI easily and cost-effectively. Seamless configuration using desktop software, converts over 300 industrial protocols. All-in-one solution with no external power required. Ideal for a wide range of industrial applications.
Add a J1939 communication gateway to your Graphite host device without additional gateways, devices or power sources. An all-in-one solution that upgrades your system easily and quickly at low cost.
Built-in protocol conversion makes it easy to integrate Graphite series HMI operator interface with J1939 protocol networks. Conversion support between J1939 and over 300 different industrial protocols.
Easily programmable interface powered by Crimson® configuration software using drag-and-drop functionality.
Built-in digital isolation protects the host device from the J1939 bus and vice versa.
A built-in termination resistor is selectable through a switch.
Easy plug-in and removal of the module via proprietary USB connection.
A green/red status LED provides information about module status, including startup routine and error states.
Durable metal construction. Operating temperature of -40 °C to 75 °C.
CE, ATEX, IECEx, UKEX and Class 1, Division 2 approvals for hazardous locations. ABS type approval for shipboard applications.
Simple deployment with no external power supply needed. Maximum power is 1.2 W.
