5-port unmanaged Ethernet switch with 4 PoE capable copper ports and fiber connectivity

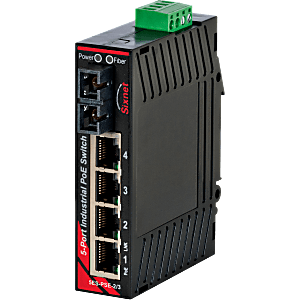

Sixnet® EB-5ES Unmanaged 5-port PoE Industrial Switch, SC 60km

Item number EB-5ES-PSE-3SCL

The Sixnet® Unmanaged 5-port PoE Industrial Switch is a durable, plug-and-play switch that adds Power over Ethernet capable copper ports along with fiber connectivity. Ideal for security and automation applications that need data and power transfer in a trouble-free package. Four 10/100BaseTX RJ-45 PoE ports and one 100BaseFX singlemode 60km fiber port with SC connectors.

Features and benefits

  • Simplify network deployment with PoE capability

    A single solution makes it easy to expand your network with PoE capability. Ideal for video, security and control applications.

  • 5-port Ethernet switch with 4 PoE outputs

    Five 10/100BaseT(X) RJ-45 ports, including 4 industrial PoE sourcing outputs.

  • Singlemode fiber port for long-distance connectivity

    One 100BaseFX 60km singlemode fiber port with SC connectors.

  • Auto-detection features do the work for you

    Automatic speed, MDIX, duplex and flow control on RJ-45 ports. Auto-negotiates POE-powered device. Over-temperature, over-current detection and over/under-voltage detection.

  • Compact DIN-rail or direct panel mounting

    Slim and easy to install. Comes in a durable IP30-rated Lexan case for DIN-rail or direct to panel mounting.

  • Suitable for industrial environments

    Durable and high-performing in demanding industrial settings. Ultra-reliable with over 1 million hours MTBF.

  • LED status monitoring

    LED indicator lights display PoE power, Ethernet link connectivity and power fault status.

  • Leading certifications for industrial environments

    IEEE 802.3 af compliance. Suitable for hazardous environments with UL Class I, Division 2 listing and CE and CSA certifications. ABS Type approval for shipboard applications. Operating temperature of -40 °C to 75 °C.

  • Redundant power inputs

    Redundant power inputs with surge, spike and reverse polarity protection. 10-30 VDC with no PoE output; 45-56 VDC for PoE output.

  • Simple setup and installation

    No complex user settings required. Ready to use right out of the box.
