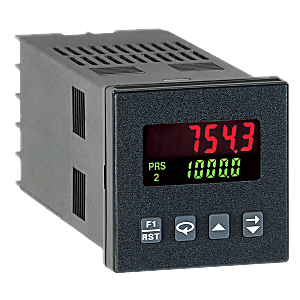

1/16 DIN 3 preset batch counter with backlit LCD and PNP outputs.
Item number C48CB104
The C48CB104 is a versatile 1/16 DIN batch counter featuring a red/green backlit display and three high speed sourcing PNP outputs. Powered by 85-250 VAC, it manages process and batch counts simultaneously with a rugged NEMA 4X/IP65 sealed bezel for industrial durability.
Features a 6-digit display with a red top line for counts and a green bottom line for presets or batch values.
Equipped with three PNP open collector outputs that source up to 100 mA for fast switching in sourcing logic systems.
Operates on 85 to 250 VAC, allowing for worldwide installation without the need for additional voltage transformers.
Includes a secondary counter that can be independently programmed to function as either a batch counter or a totalizer.
The front panel is completely sealed against dust and water, suitable for indoor high-pressure wash-down environments.
Includes user assignable inputs for customized remote functions such as reset, inhibit, or display toggling.
Protects critical process settings via programmable access privileges and a protected value menu to prevent unauthorized changes.
