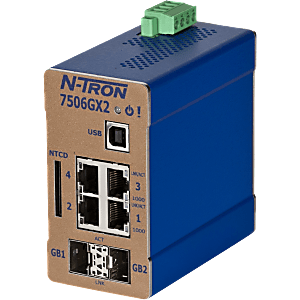

High-performing 6-port managed Ethernet switch for industrial connectivity with Gigabit uplink ports
Item number 7506GX2-LX-10
The N-Tron® 6-port Managed Industrial Ethernet Switch helps you deploy and manage network and remote monitoring features through a web browser, including auto IGMP configuration, diagnostics and ring configuration. Durable metal casing makes it ideal for harsh and remote sites. Four copper 10/100/1000 ports + 2 gigabit SFP ports with 2 NTSFP-LX-10 singlemode modules.
Deliver outstanding switch performance to industrial, railway and other harsh applications.
Rugged steel hardened enclosure with 35mm DIN-rail supports high performance in demanding industrial environments. Case dimensions: 9.6 cm X 5.1 cm X 9.9 cm.
Connect devices to up to 6 ports, including four 10/100/1000BaseTX RJ-45 ports and two SFP Gigabit transceivers (1000BaseT copper with RJ-45 connectors).
10/100/1000BaseTX ports are auto-sensing for duplex and MDIX and auto-configurable for maximum speed by default. Installed SFP transceivers.
Fully managed features are easily configurable from a web browser. Set up SNMP, VLAN, Quality of Service (QoS), port trunking, port mirroring, IGMP and RSTP to your specifications.
DHCP Server assigns IP addresses automatically. Includes DHCP Option 82 relay, Option 61 and IP fallback.
Bi-color LED indicators are configurable to respond to alarm contact, power failure and N-Ring status..
Suitable for hazardous and demanding environments with UL Class I, Division 2 listing and CE certifications. Over 2 million hours MTBF and operating temperature of -40 °C to 80 °C.
N-View™ Windows-based software provides remote monitoring.
N-Ring™ technology offers expanded ring size capacity to support up to 250 N-Tron managed switches. The ring manager provides complete fault diagnostics and ring health status via browser.
Port-based MAC address filtering delivers a high level of security to your network connections. Supports up to 4,000 MAC addresses.
Redundant power input (10-49 VDC). ESD and surge protection diodes on all ports.
