Durable and high-performing 16-port managed Ethernet switch for industrial connectivity

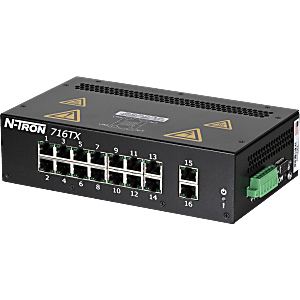

N -Tron® 716TX-HV Managed 16-port Industrial Ethernet Switch

Item number 716TX-HV

The N -Tron® 16-port Managed Industrial Ethernet Switch is a powerful and durable solution to connect Ethernet-enabled equipment. Best-in-class network management features for remote monitoring and configuration control. High performance, reliability and noise immunity for rugged industrial applications. Sixteen copper 10/100 ports.

Features and benefits

  • Easily connect and manage Ethernet-enabled devices

    Store-and-forward technology and superior switch performance in industrial applications where ruggedness is required.

  • Designed for rugged environments

    Hardened metal DIN-rail enclosure delivers top performance in demanding environments. High shock and vibration ratings. Case dimensions: 2.3” X 8.3” X 4.8”.

  • Flexibility with copper ports

    Sixteen 10/100BaseTX RJ-45 ports.

  • Easy to use and flexible 10/100BaseTX ports

    Auto-sensing for duplex and MDIX. Auto-configurable for maximum speed by default. Can also be hard coded. Wire speed capability on all 10/100BaseTX ports.

  • Easy to configure management functionality

    Fully managed features are easily configurable from a web browser. Set up SNMP, VLAN, Quality of Service (QoS), port trunking, port mirroring, IGMP, SNMP and RSTP to your specifications.

  • DHCP Server for Automatic IP address assignment

    DHCP Server assigns IP addresses automatically. Includes DHCP Option 82 relay, Option 61 and IP fallback.

  • Switch status monitoring and LED indicators

    LED indicators are configurable to indicate power failure and N-Ring status.

  • Leading certifications for industrial environments

    IEEE 1613 compliance. Suitable for hazardous environments with UL Class I, Division 2 listing and CE certifications. Over 2 million hours MTBF and operating temperature of -40 °C to 70 °C.

  • Real-time remote monitoring

    N-View™ Windows-based software provides remote monitoring.

  • N -Ring™ technology with ~30ms healing time

    N-Ring™ technology offers expanded ring size capacity to support up to 250 N-Tron managed switches. The ring manager provides complete fault diagnostics and ring health status via browser.

  • Enhanced Port Security

    Port-based MAC address filtering delivers a high level of security to your network connections. Supports up to 8,000 MAC addresses.

  • Redundant power inputs and surge protection

    Redundant power input (40-160 VDC). ESD and surge protection diodes on all ports.
