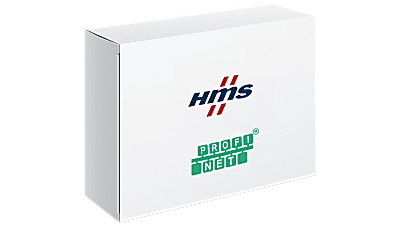

PROFINET protocol stack
Item number 1121065005
The PROFINET IO-Controller Software Development Kit (protocol stack) is open, powerful and cost-effective solution for embedding PROFINET into industrial controllers. Promoted by PROFIBUS & PROFINET International, it lets you build IO-Controller (master) products - PLC couplers, interface cards, robot controllers. Fully hardware and OS independent, it supports 32-bit and 64-bit microprocessors under real-time or standard OS and ship as ANSI C source code with sample applications, reference guide and GSDML samples
Item Number
1121065005
Dual Usage
No
Brand
Anybus
HS Code
Not Applicable
Content of Delivery
Windows 11; generates IO-Controller config files (XML); GSD[BH1.1][MM1.2] library management; device commissioning (auto-detection, Set Name, blinking); online diagnostics; OEM customization.
PROFINET Mode
Compliant to the latest PROFINET specification. CC-A/B ; RT (Class-1), no IRT; Context Management; IP configuration DCP / Local
PROFINET Supported Functionality
Ascyclic data exchange in multiple formats (Bit, Byte, Word, Dword, Float); up to 128 IO-devices with 1440 input + 1440 output bytes each.
PROFINET I&M Records
Manufacturer Data (I&M0), Tag Information (I&M1), Date/Time (I&M2), Description (I&M3)
PROFINET Bandwidth
LLDP (PROFINET mandatory MIB), MRP Media Redundancy (Client), FSU. 32-bit and 64-bit microprocessors; portable on any real-time or standard multi-thread OS.
PROFINET Input Data Size
Up to Full Ethernet payload
PROFINET Output Data Size
Up to Full Ethernet payload
PROFINET Conformance Class
Class A, Class B, Pre-conformance
Contains Battery
No
