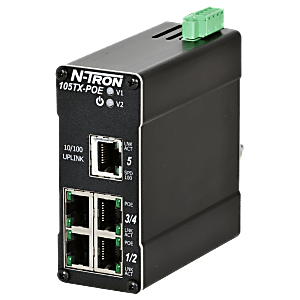

Power over Ethernet and data transmission in a compact, unmanaged 5-port switch
Item number 105TX-POE
The N-Tron® Unmanaged 5-port PoE Switch is built to transmit power and data. This plug-and-play unmanaged switch eliminates the need for complex electrical wiring. Five auto-sensing duplex-capable copper ports (including 4 PoE ports) in a compact metal case. High performance and durability in demanding industrial environments.
Full wire speed communication, high throughput and minimum downtime. Upgrade existing solutions with new bandwidth by eliminating network collisions.
Power PoE-capable camera, device or wireless access point without running power lines or an AC power feed. Automatically senses connected PoE devices. 15.4 Watts per port and 13 Watts at the PD.
RJ-45 ports auto sense duplex, speed and MDIX. Ethernet switching technology makes RJ-45 ports full/half duplex capable. Four RJ-45 ports also act as PoE ports.
Automatically negotiates and configures speed and flow control of the ports.
Comes in a 35 mm DIN-rail mountable hardened metal case. Compact design with a small footprint. Dimensions: 9.7 cm X 3.8 cm X 9.0 cm.
Robust performance in harsh industrial settings. Suitable for hazardous, maritime and rail applications. Over 2 million hours MTBF.
Connect to advanced and complex network architectures with support for up to 2,000 MAC addresses.
LED indicator lights display link status, port activity status, PoE status and power fault status.
IEEE 802.3 and 802.3af compliant. Certified UL Class I, Division 2 rating and CE approval. ABS and EN 50155, EN 50121 and EN 61373 Rail type approvals. Operating temperature of -40 °C to 85 °C.
Redundant DC power inputs (46-49 VDC) for increased reliability. Surge protection on power inputs. ESD protection on RJ-45 ports.
Disables PoE power when a fault is detected on any PoE port, preserving data transmission and preventing equipment damage.
