Unmanaged 5-port industrial Ethernet switch with copper and fiber connectivity

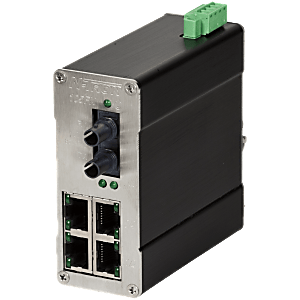

N-Tron® 105FX-ST-MDR Unmanaged 5-port Industrial Ethernet Switch

Item number 105FX-ST-MDR

The N-Tron® Unmanaged 5-port Industrial Ethernet Switch meets data gathering, control and Ethernet I/O needs cost-effectively. This plug-and-play hubswitch has four 10/100BaseTX RJ-45 ports and one 2km 100BaseFX multimode fiber port with ST connector in a compact, durable metal case with metal DIN rail clip. Top performance for high-speed layer 2 switching in demanding industrial environments.

Features and benefits

  • Gather industrial data effectively and affordably

    Store-and-forward technology with full wire speed communication, high throughput and minimum downtime. Upgrade existing solutions with new bandwidth by eliminating network collisions.

  • Four RJ-45 auto-sensing 10/100Base TX RJ-45 ports

    RJ-45 ports auto sense duplex, speed and MDIX. Ethernet switching technology makes RJ-45 ports full/half duplex capable.

  • 2km Fiber optic uplink port

    Fiber optic uplink port enables long distance communication. Industry standard 100BaseFX multimode port includes ST connectors. Fiber distance rating of 2km without repeaters.

  • Automatic speed and flow control

    Automatically negotiates and configures speed and flow control of the RJ-45 ports.

  • Metal DIN-rail enclosure and DIN-rail clip

    Comes in a 35mm DIN-rail mountable hardened metal case. Metal DIN-rail clip is included for easily installation. Compact design with a small footprint. Dimensions: 8.9 cm X 3.8 cm X 9.0 cm.

  • Designed for industrial settings

    IP30 rating and extended environmental specifications delivers robust performance in harsh and hazardous industrial settings. Over 2 million hours MTBF.

  • MAC address support

    Connect to advanced and complex network architectures with support for up to 2,000 MAC addresses.

  • LED status monitoring

    LED indicator lights display the link status and activity of each port and power on/off status.

  • Leading industry certifications for industrial environments

    IEEE 802.3 compliant. Certified UL Class I, Division 2 rating and CE approval. EN 50155 Rail and ABS Type approval for shipboard applications. Operating temperature of -40 °C to 70 °C.

  • Redundant DC power inputs

    Redundant DC power inputs (10-30 VDC) for increased reliability. ESD and surge protection on all built-in RJ-45 ports.
