How to update an Ewon Flexy/Cosy131 remotely or locally

This article describes the different ways you can update your Ewon Flexy/Cosy131 remotely or locally.

APPLICABLE PRODUCTS

Ewon Flexy, Ewon Cosy131

Not applicable for Cosy+

PRE-REQUISITES

To be able to proceed the firmware update of your Ewon device remotely, it needs to be already configured on Talk2m and be ONLINE.

IN THIS ARTICLE

CONNECT TO YOUR EWON DEVICE USING ECATCHER (If remotely)

1. Open Ecatcher & connect to your Talk2m account.
2. Select the Ewon device to upgrade and click “Connect”.
3. Once connected, the Ewon device will be visible in the active connection window.

UPGRADE YOUR EWON DEVICE USING EBUDDY

1. Open Ebuddy and click “Refresh”.
2. The connected Ewon device will be visible in the Talk2M device section.
3. Select the Ewon device, then press F3 or browse Tools\Update Firmware.
4. Enter the credential of the Ewon device.
5. A last warning pop-up is displayed as reminder that this operation is done remotely.
6. Select the firmware version to apply and click next.
7. Ebuddy will now download the firmware file and transfer it to the Ewon device.
8. Once transferred, the firmware upgrade process starts.
9. Due to the remote upgrade process, the Ewon detection can be longer than usual.
   Default setting and configuration will bring it back automatically in Ebuddy.

Note : Slow connection or configuration can impact the automatic return of the Ewon device. In this
situation, the upgrade wizard will timeout indicating that the Ewon is not replying anymore.
A new connection to your Ewon device via Ecatcher will confirm that the Ewon device is now
upgraded.

If your Ewon runs a firmware version 15.0, firmware upgrades are no longer supported through Ebuddy. To perform the upgrade from a version 15.0 to a higher version, you must manually transfer the .EDFS secure firmware image either via FTP using a third-party FTP client or by loading it onto an SD card.
--> See chapters below

UPGRADE YOUR EWON DEVICE USING FTP

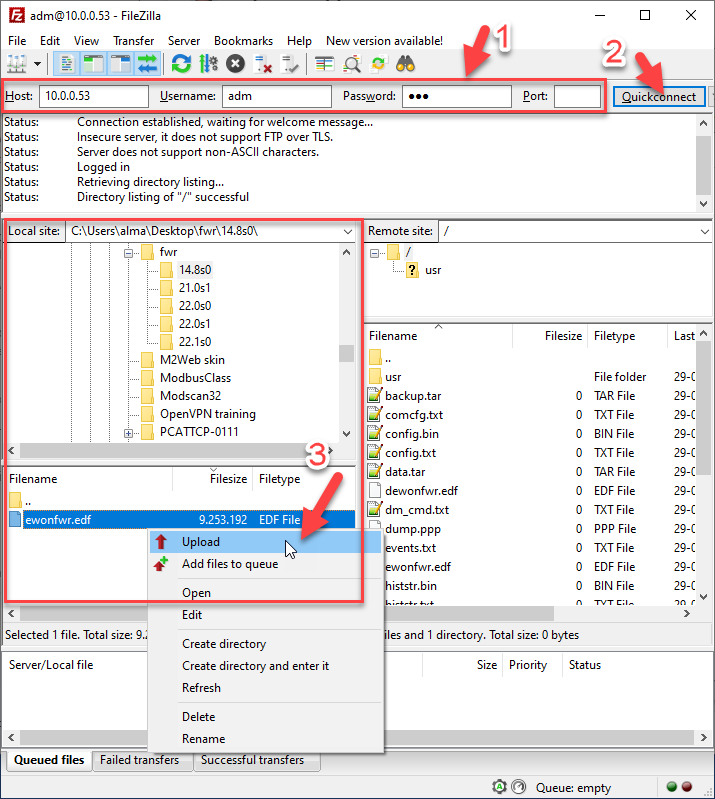

1. Connect to your Ewon using an FTP client (in this example Filezilla). Enter the IP of your Ewon (LAN IP or VPN IP) and the credentials of your device.
2. In the FTP client, browse your PC folders to find the firmware file. Firmware files are available on our website :



   To transfer it to the Ewon, it has to be named "ewonfwr.edf" or "ewonfwr.edfs" :
   If your Ewon currently runs a firmware version < 15.0, use the EDF firmware update file.
   If your Ewon currently runs a firmware version 15.0 or above, use the EDFS firmware update file.


3. Upload the firmware.
