Determine the appropriate jumper position for your CTR. The jumper should be set to the closest range of AC current you are measuring. Jumper can be found on the top of the CTR

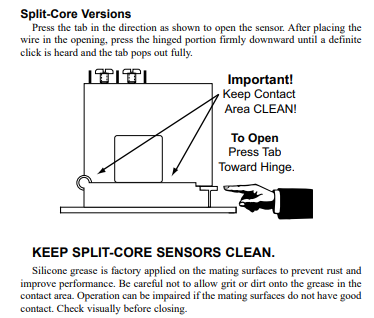

It is important to make sure the contact areas of the split core CTR are clean. If these are not clean, it can cause zero output to your meter

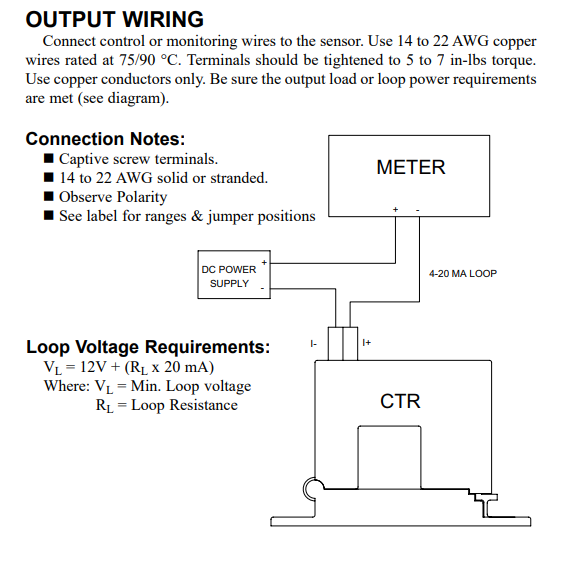

Output wiring should be as listed below:
PAXD Wiring/Jumper
Connection to your PAXD should be on Terminals 4(+) & 5 (-)
Jumper needs to be set to the 20mA range
PAXD Configuration
Press PAR button to enter programming menu
You will see Pro No flash
Use the F1/F2 key to navigate to Module 1 - INP
Press PAR to enter module
Range = 0.02A
Decpt(decimal point) = 0.00 (or whatever range you need up to 0.0000)
Round = whatever is set to default (this will change based on your selection of decimal point)
Filtr = 1.0
Band = whatever is set to default (this will change based on your selection of decimal point)
Pts = 2
Style = KEY
INP 1 = 4.000
DSP 1 = 0.000
INP 2 = 20.000
DSP 2 = 50.000 (or whatever your highest range is based on your CTR Jumper position)
Press PAR until you see END.
Display will now show value based on input being received from CTR
