This article will discuss the available adaptor bezel part numbers for HMS Networks HMI retrofits.
Please Note
Not all HMI model retrofits have an adaptor plate available. Depending on application some panel modification may be necessary.
APPLICABLE PRODUCTS
G3K series HMI
PRE-REQUISITES
IN THIS ARTICLE
This article lists available adaptor plate part numbers and overall plate dimensions.

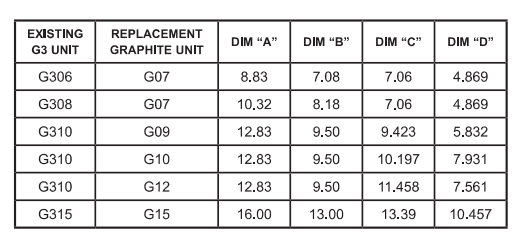

Plates are available for the below HMI conversions

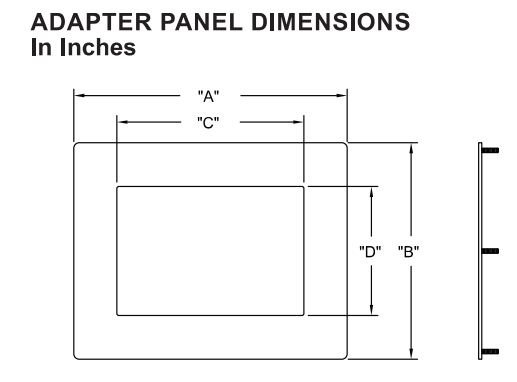

Plate Dimensions

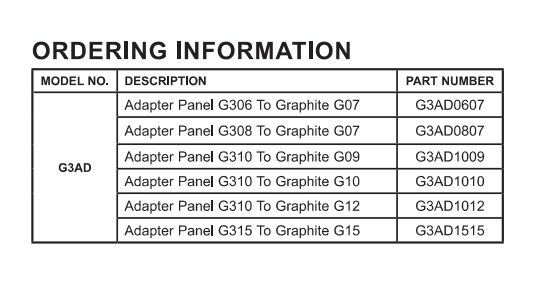

Plate part numbers Graphite series
HMS Support
If you require additional support, you can contact us here
Create a support ticket here
ADDITIONAL INFO
Link to adaptor plates Graphite adaptor plate product sheet
