This document will discuss setting up a PAXD analog panel meter for the first time.

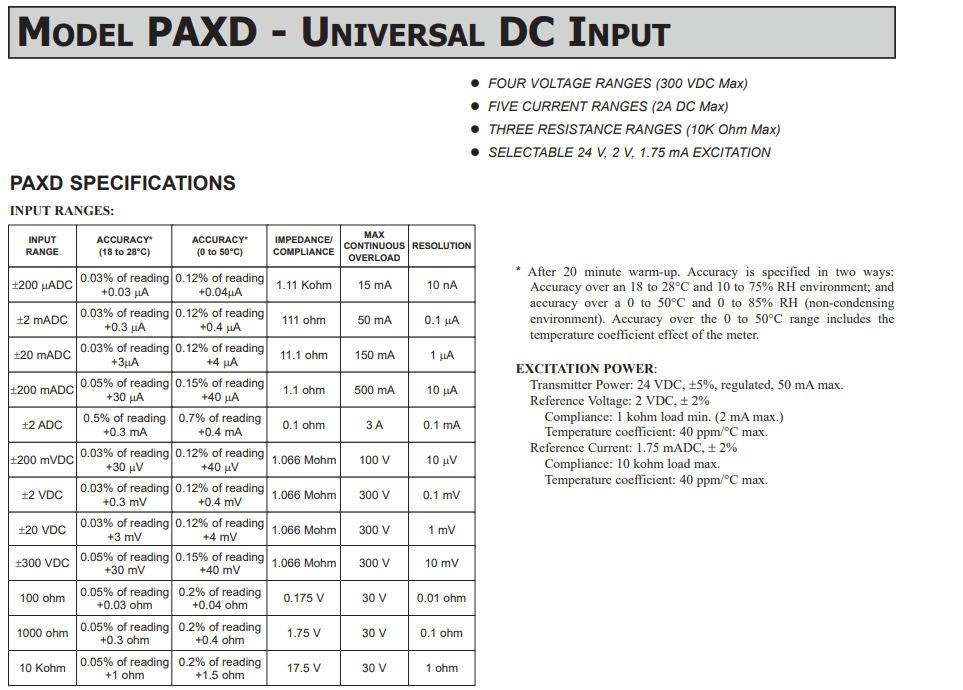

The PAXD analog panel meter is a universal DC input panel meter. The PAXD can be configured to display the following ranges of input:

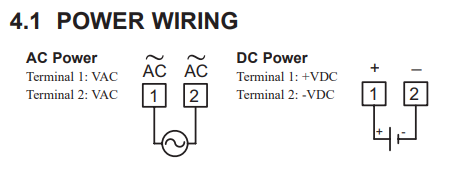

PAXD0000 (85 - 250 VAC)
PAXD0010 (11 - 36 VDC, 24VAC)

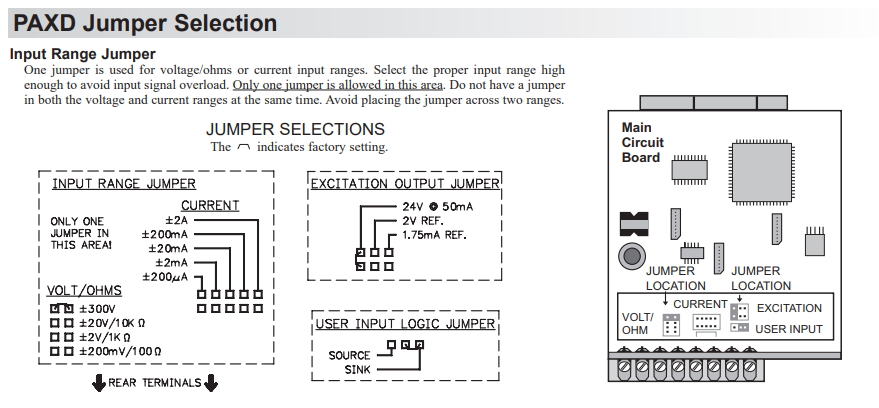

Jumper Selection is essential before connecting any wiring or doing programming.

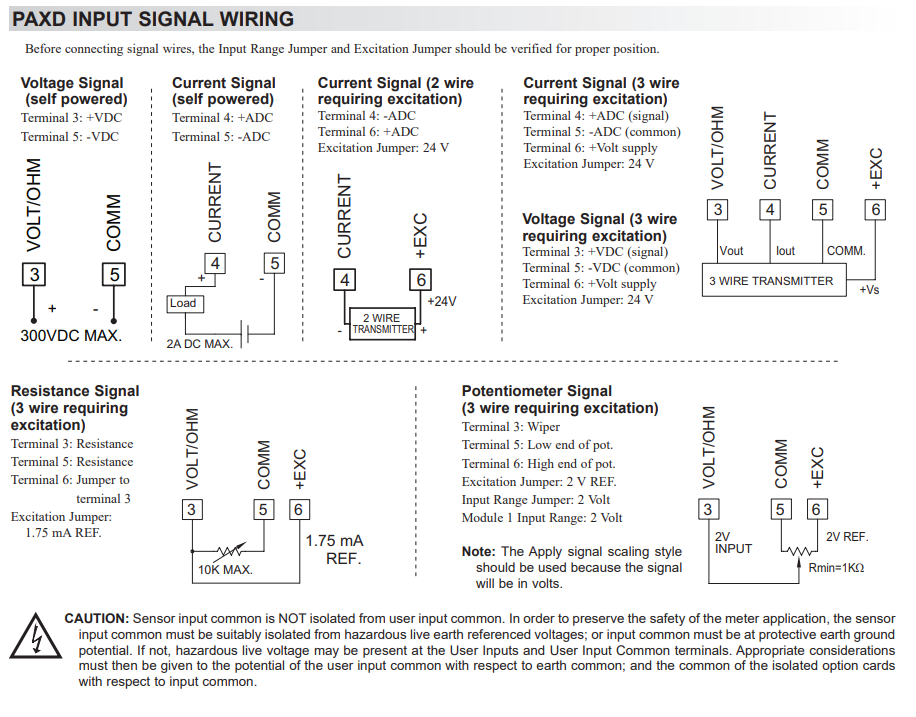

Please confirm your input signal type with the manufacturer documentation before connecting.
Please see page 16 of the product manual for navigating through the programming menu.

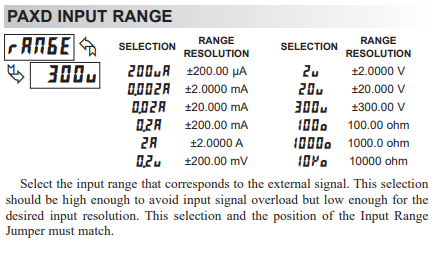

In Module 1(1 - INP) you will need to select your input range (rANGE).
Scaling Input is how you teach your meter to display certain values based on input value. Inp -1 will normally be your lowest input value and dsp - 1 will be the value you wish to have your display show when seeing inp -1. Inp -2 will be your highest input value and dsp -2 will be the value you want your meter to display when seeing inp -2 value.
Example for a 4 - 20mA input:
dsp -2 = 100.00
* Please see the top of page 19 in the product manual for general notes on scaling
Please contact HMS tech support if you have any additional questions or issues with setting up your PAXD Universal DC Input Panel meter by clicking here
