This document describes using the OPC UA Client Driver to connect to Kepserver running as a OPC UA Server.
CR Series HMI / DA Series Data Station / Graphite Controllers and HMIs
This Tech Note should be used in conjunction with the Using the OPC UA Client Driver Tech Note

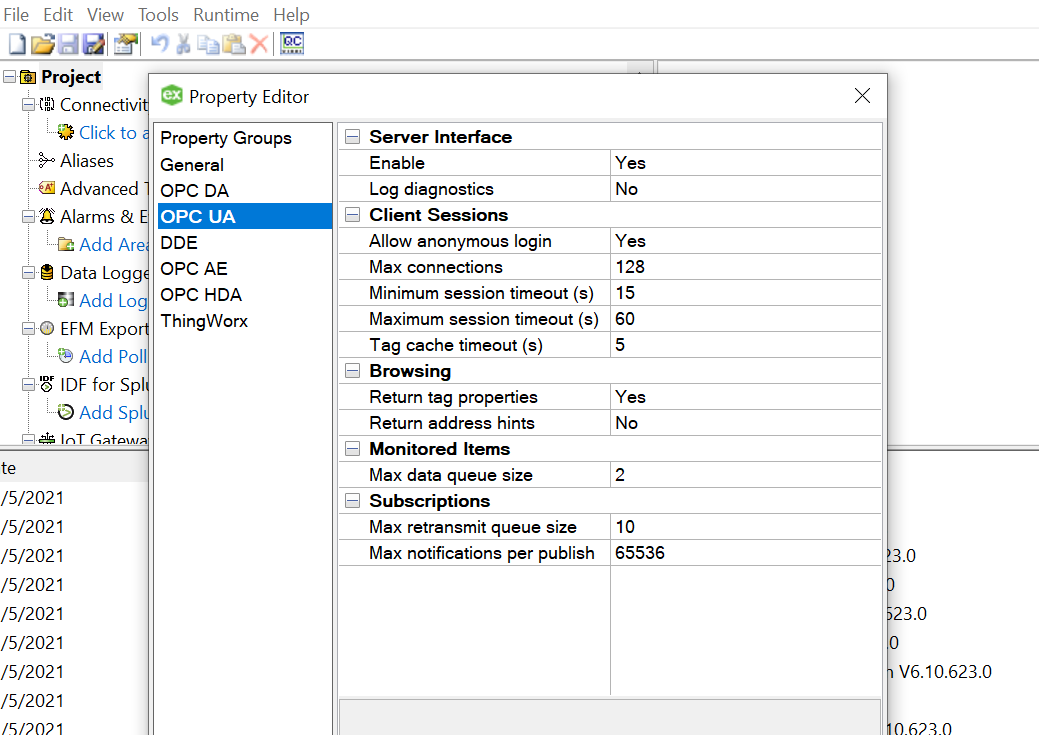

Right-click on Project then go to Properties. Make sure OPC UA is enabled and set allow anonymous login to Yes.

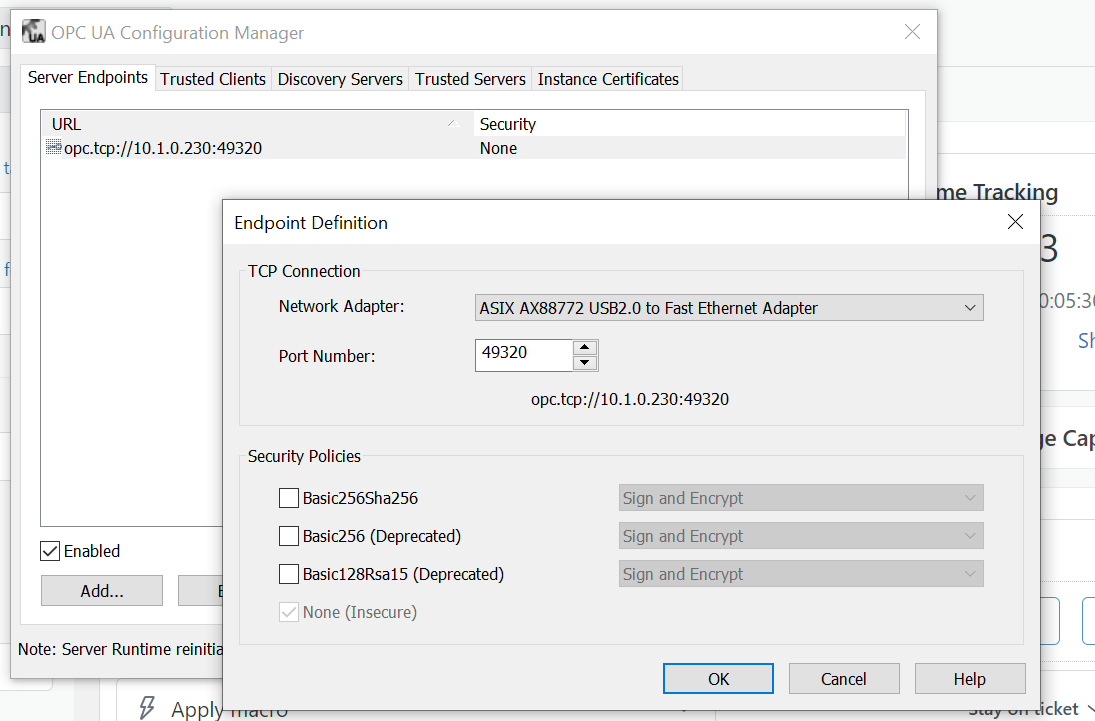

Make sure to replicate the settings below in the OPC UA configuration manager.

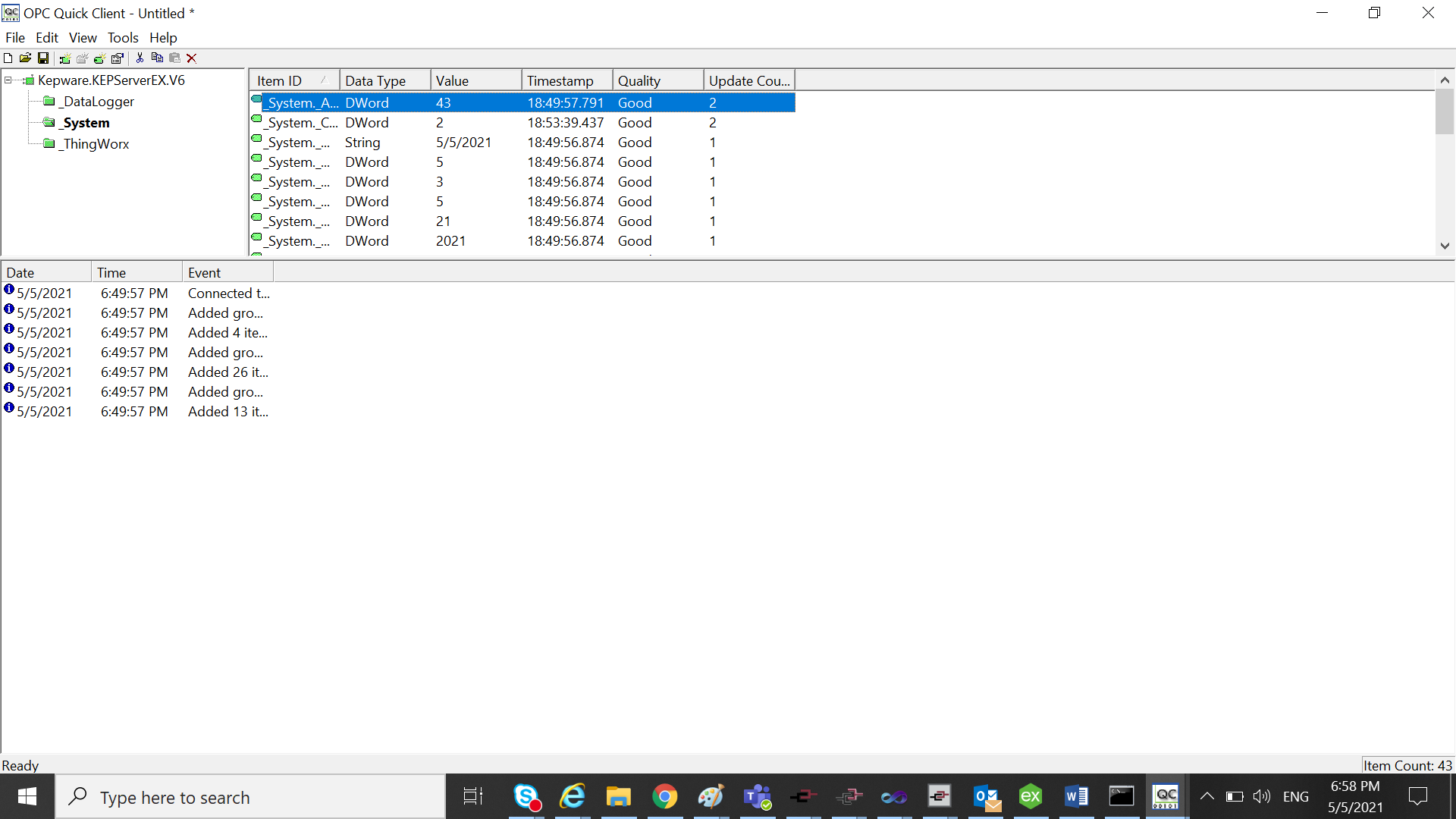

Launch the OPC Quick Client.
Now, use the browse utility from CMD or download data model from device, as shown below.
Complete the Crimson configuration as described in the Using the OPC UA Client Driver Tech Note
