Digital Analog Tech Note 23 - TNDA23

Abstract:

This document will describe the changes made to the digital input PAX meters when the firmware was upgraded to version 3.0 in July 2012.

Products:

PAXC, PAXI, PAXR

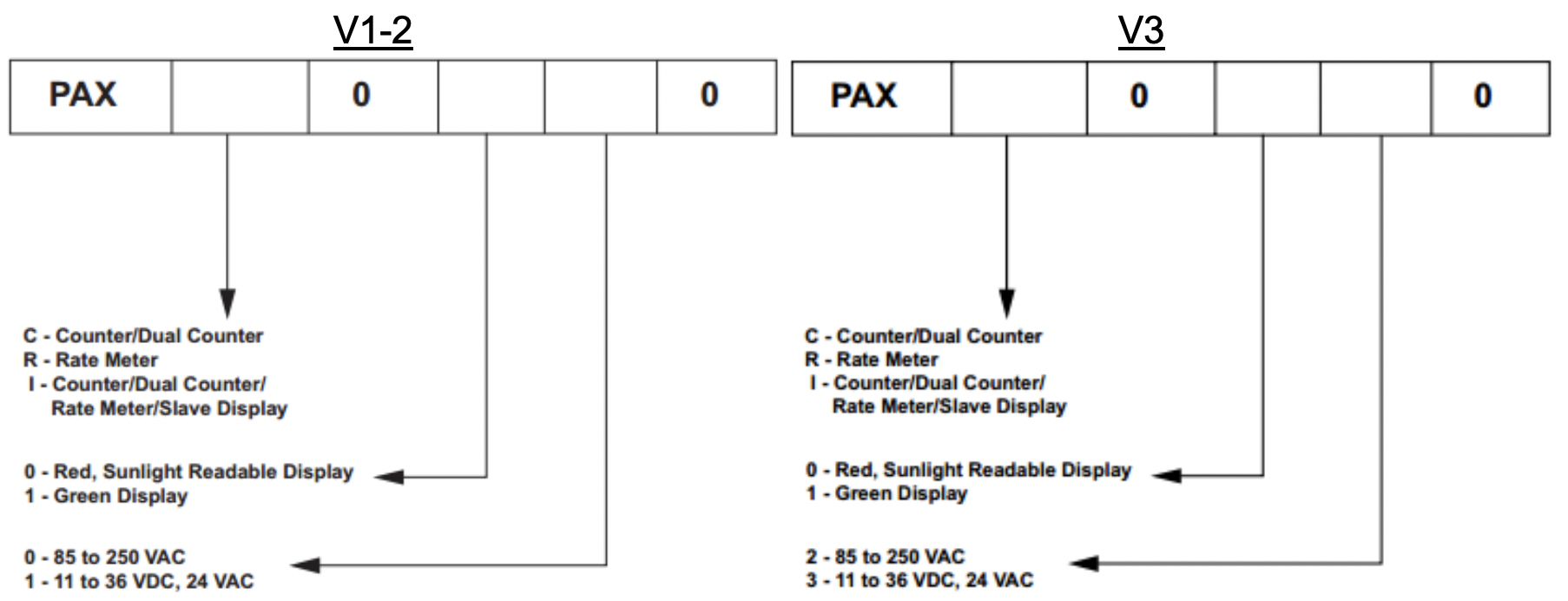

Part Numbers

Physical Features

Units manufactured after July 2014 (2614) have a case knock out feature to support the PAXCDS60 Quad Form C Relay Output card.

Specification Changes

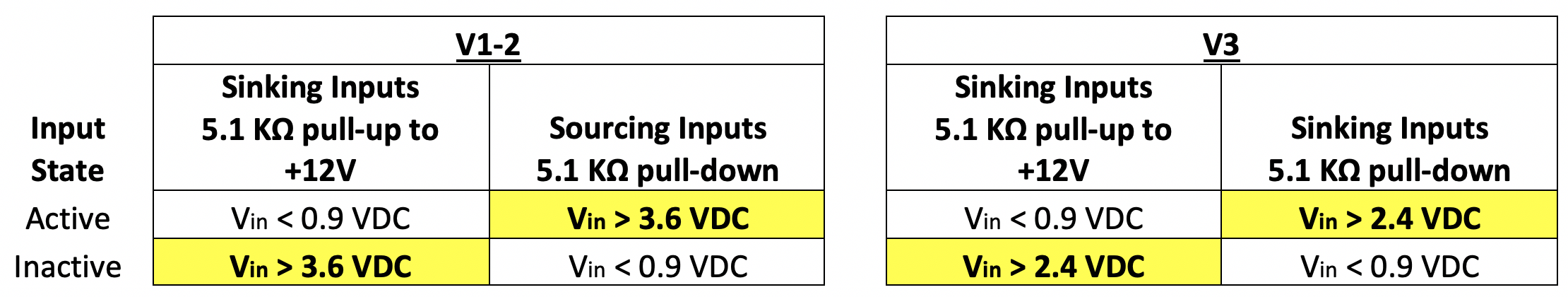

User Inputs

Programming Changes

• Version 3 units support Modbus (RTU and ASCII) as well as the RLC Instrument protocol.
  • Modbus RTU is now the default setting.
• Counter A’s Scale Factor no longer defaults to Read in the 3-LOC menu.
• d-LEV is now lockable in the 3-LOC menu.
