This document describes the wiring for RS-485 connection between Redlion device and third party RS485 device.
Red Lion Controls CR1000 Human Machine Interface (HMI), CR3000 HMI, Data Acquisition (DA10, DA30), Data Station Plus, FlexEdge™ (DA50A, DA70A), G3 HMI, Graphite® Controller, Graphite HMI, Modular Controller, and Productivity Station™
Communicating with devices that can talk via RS485 using any of the protocols/drivers supported by Redlion Crimson Software.
Crimson 2.0, Crimson 3.0, Crimson 3.1 & Crimson 3.2
Pin 1 and 2 are typically - and + while Pin 6 is common. When the wiring is correct, you will see both Red and Green LED blink rapidly. If you see solid Red and blinking green, it means polarity need to be reversed and as a result you should swap your Pins 1 and 2.
You can actually use any of the four combinations for 2 wire RS485 wiring. Pins 1 and 2 or Pins 2 and 7 or Pins 7 and 8 or Pins 1 and 8 since Pins 1 and 7 are internally jumpered and similarly Pins 2 and 8 are also internally jumpered as implied by the image below
Pin 5 (TxEN) is used only for Allen Bradley DH485 communication and should be ignored for other protocols/drivers
For 4 wire RS485 communication, you will use Pins 1, 2, 3 and 4 with Pin 6 being used for Common.

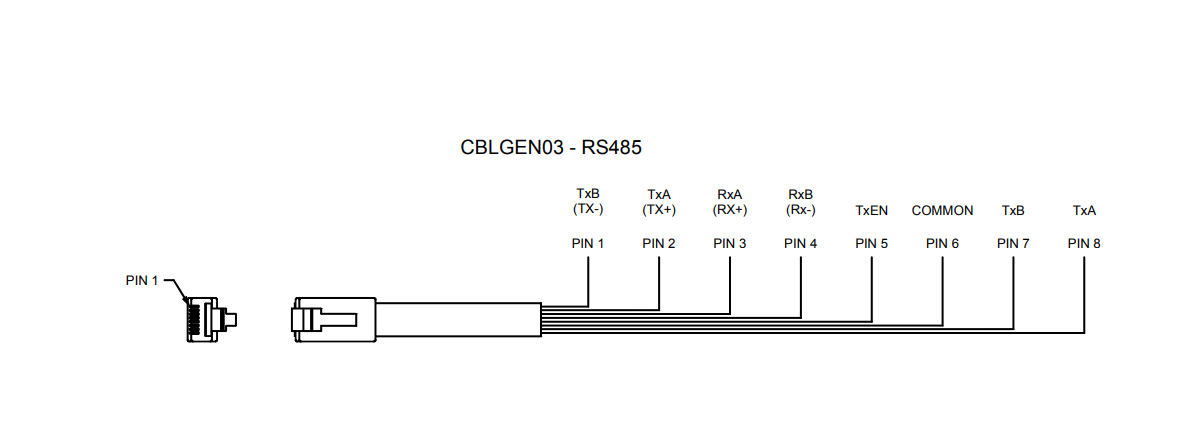

Redlion sells a cable that goes from RJ45 connector on one end to bare wires on the other end. Part number is CBLGEN03
https://www.redlion.net/sites/default/files/media/CBLGEN02-03.pdf

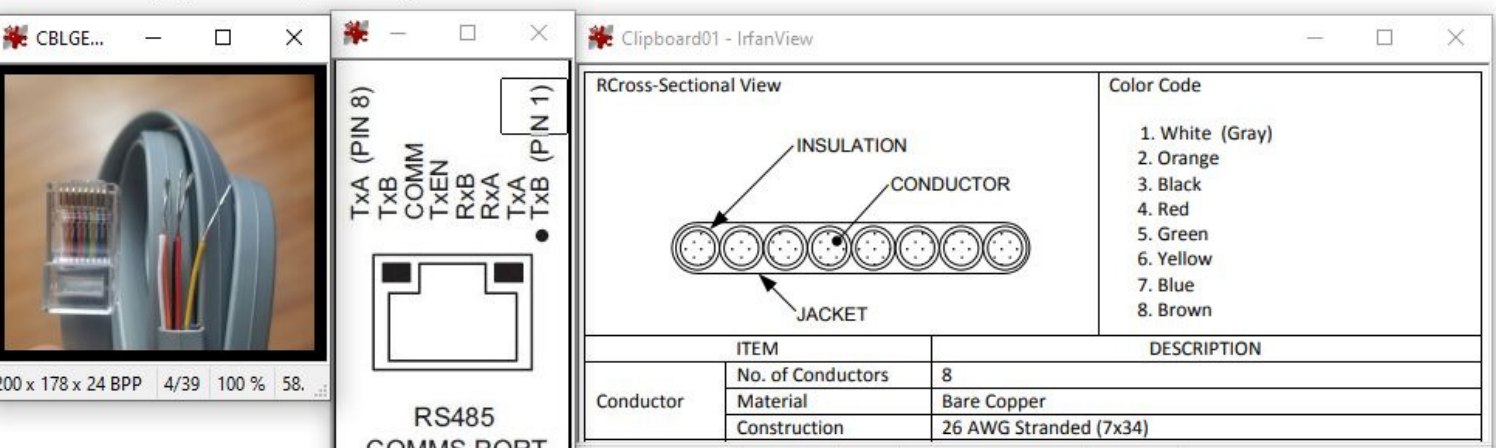

Below is a picture with more details on this cable
