This document provides a step by step procedure defining how to upgrade firmware on a RAM and SN Sixnet® series cellular router.
Red Lion Controls RAM/SN: 66xx, 68xx, 67xx, 69xx, RAM 9xxx.
Note: This procedure is not suited for RAM 6021.
Upgrading firmware of Non-LTE models: RAM/SN 66xx, 68xx
Upgrading firmware of LTE models: RAM/SN 67xx, 69xx, RAM 9xxx
Web Browser
NOTE: It is strongly recommended to be directly connected (via USB or LAN) to the device. Firmware upgrade on Cellular WAN is not recommended. This procedure is not suited for RAM 6021.
1. Download the latest firmware from the following link: http://www.redlion.net/industrial-wireless-software-firmware
2. Extract the zip file.
3. Referring to Figure 1, log into the RAM Web Browser Type the device’s LAN/WAN IP, port 10000 into a web browser.
Figure 1.

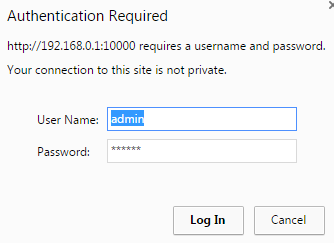

Referring to Figure 2, log in using:
a. User Name: admin
b. Password: Last six digits of the device’s serial number
Figure 2.

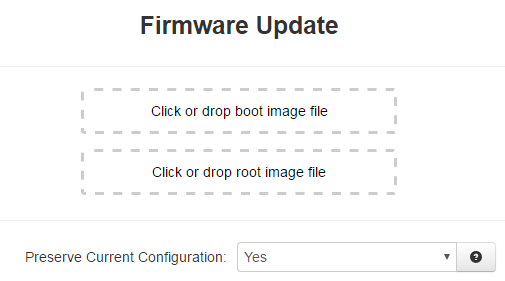

4. Navigate to Admin - Firmware Update, see Figure 3.
Figure 3.

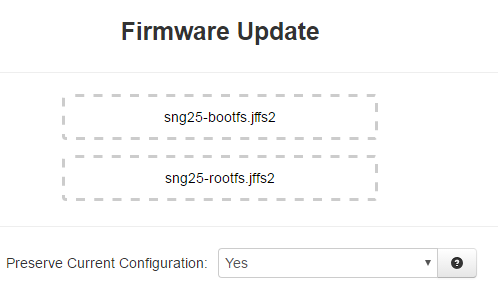

Referring to Figure 4:
5. Select the boot image file. Browse to the extracted zip file and select: 3.2x_4.2x_sn_reflash\Images\sng25-bootfs.jffs2
6. Select the root image file. Browse to the extracted zip file and select: 3.2x_4.2x_sn_reflash\Images\sng25-rootfs.jffs2
7. Preserve Current Configuration: Select Yes for the device to save its current configuration and restore it after the firmware image is installed. Select No for the factory default configuration.
Figure 4.
8. Click Install on the bottom of the screen, see Figure 5.
Figure 5.
9. Latest firmware is now uploaded on RAM/SN router. The firmware version can be seen on the Home screen of the router configuration. Firmware Version 4.xx applies for LTE models.
NOTE: It is strongly recommended to be directly connected (via USB or LAN) to the device. Firmware upgrade on Cellular WAN is not recommended. This procedure is not suited for RAM 6021.
1. Download the latest firmware from the following link: http://www.redlion.net/industrial-wireless-software-firmware
2. Extract the zip file.
3. Refer to Figure 6, log into the RAM's Web Browser. Type the device’s LAN/WAN IP, port 10000 into a web browser.
Figure 6.
Referring to Figure 7, log in using:
a. User Name: admin
b. Password: Last six digits of the device’s serial number
4. Navigate to Admin - Firmware Update, refer to Figure 7.
Figure 7.

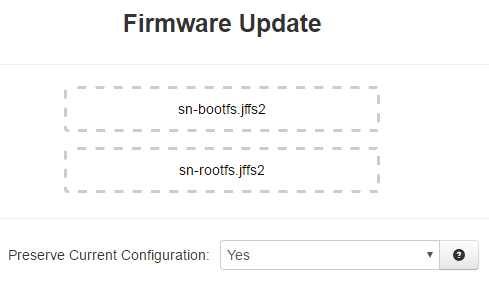

Referring to Figure 8.
5. Select the boot image file. Browse to the extracted zip file and select: 3.2x_4.2x_sn_reflash\Images\sn-bootfs.jffs2
6. Select the root image file. Browse to the extracted zip file and select: 3.2x_4.2x_sn_reflash\Images\sn-rootfs.jffs2
7. Preserve Current Configuration: Select Yes for the device to save its current configuration and restore it after the firmware image is installed. Select No for the factory default configuration.
Figure 8.

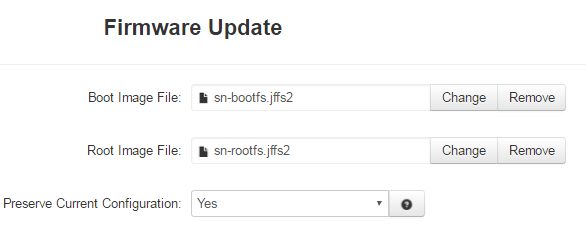

8. Referring to Figure 9, click Install.
Figure 9.
9. Latest firmware is now uploaded on RAM/SN router. The firmware version can be seen on the Home screen of the router configuration. Firmware Version 4.xx applies for LTE models.
Figure 10.
It is the customer's responsibility to review the advice provided herein and its applicability to the system. Red Lion makes no representation about specific knowledge of the customer's system or the specific performance of the system. Red Lion is not responsible for any damage to equipment or connected systems. The use of this document is at your own risk. Red Lion standard product warranty applies.
If you have any questions or trouble contact Red Lion Technical Support by clicking here or calling 1-877-432-9908.
