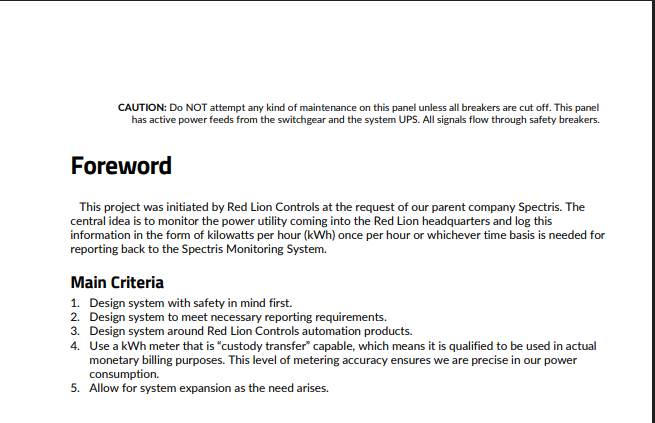

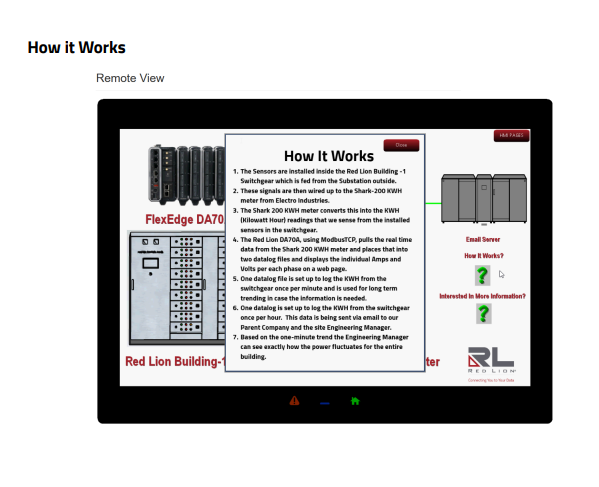

From time to time, we receive inquiries about using Red Lion hardware for power monitoring applications. Power monitoring can be achieved by using the Red Lion DA70 and a custody transfer rated KWH meter. This is not a large task to complete using the Red Lion device with its built in Remote Web View.

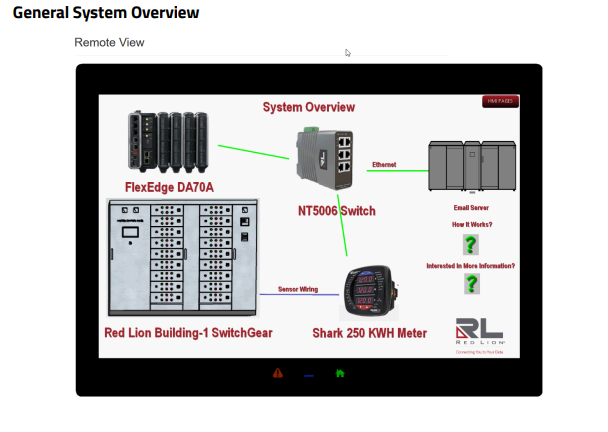

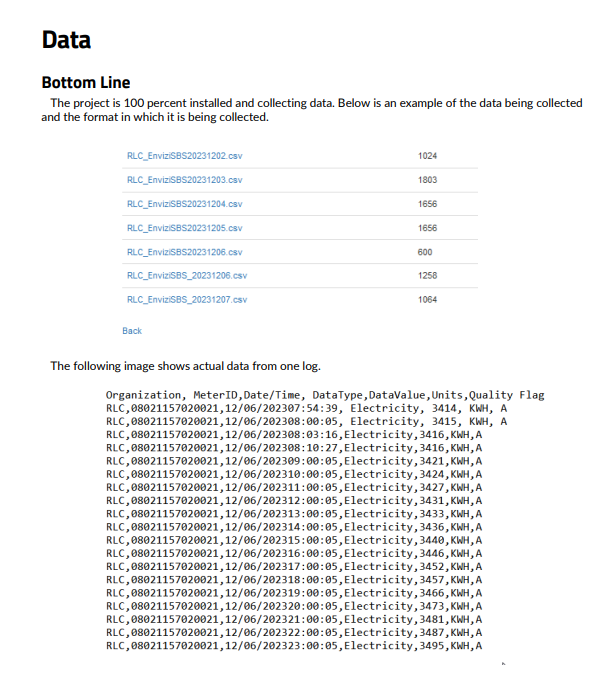

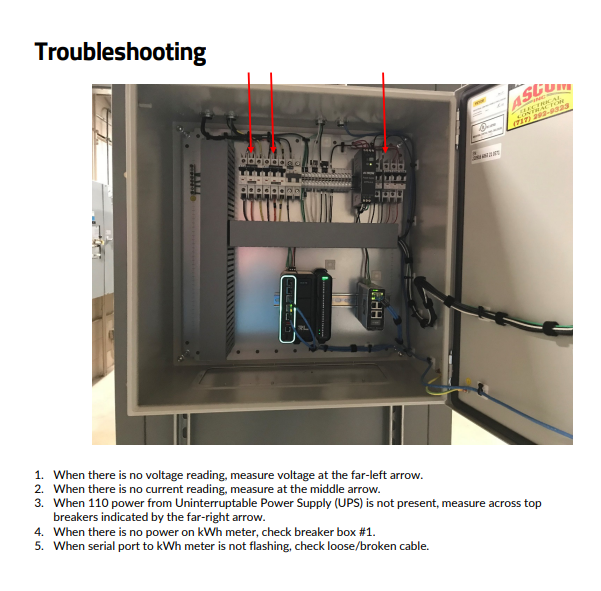

Below is an example of one such system running in the corporate headquarters in York PA right now quietly collecting data for the building KWH.
Your system may need to be varied. Use this as an example not as the blueprint for your system design and implementation.
