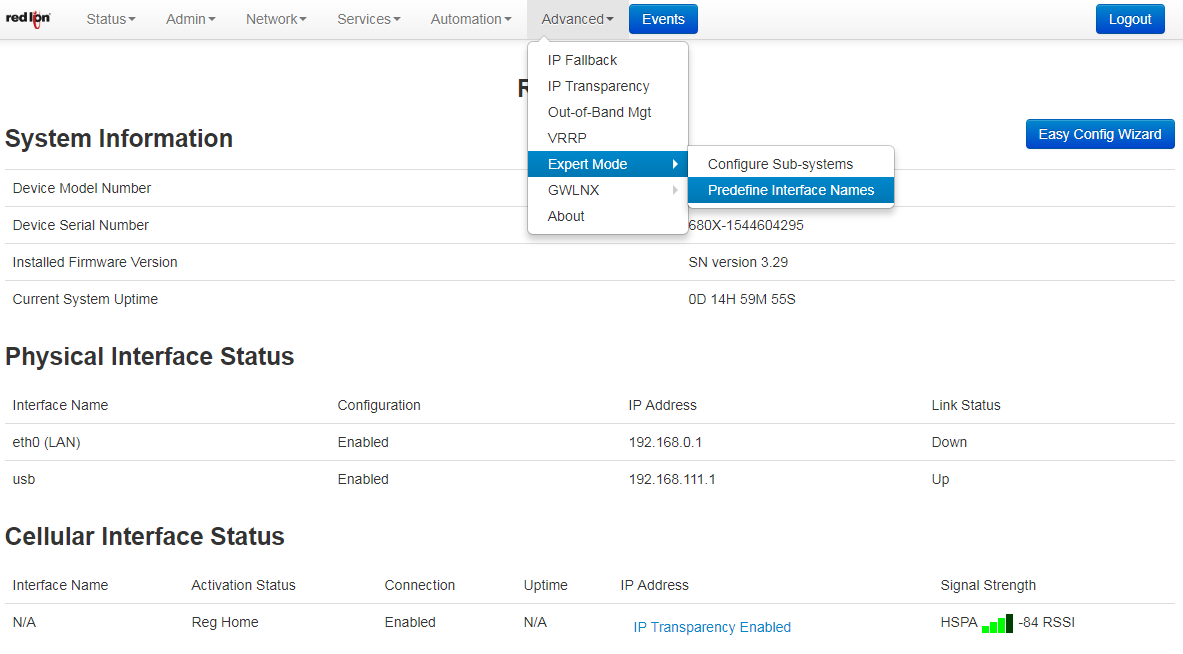

The “Expert Mode” menu item allows you to edit the configuration files of a Sixnet IndustrialPro/EnterprisePro router directly. This option provides the ability to perform advanced configuration capabilities for complex configurations.
As the Gateway Administration Utility (GAU) is XML-based, the GAU writes the configuration to an XML- based configuration file and then generates the necessary system configuration files. Therefore, it is not recommended that you perform configuration activities using this facility unless instructed to do so by Sixnet Technical Support.
WARNING: Should you choose to edit the configuration files directly, we encourage you to contact Sixnet Technical Support. Once you have manually edited a configuration file without the use of the GAU, you should refrain from any further configurations to that subsystem through the GAU, as it will overwrite any changes you may have made.

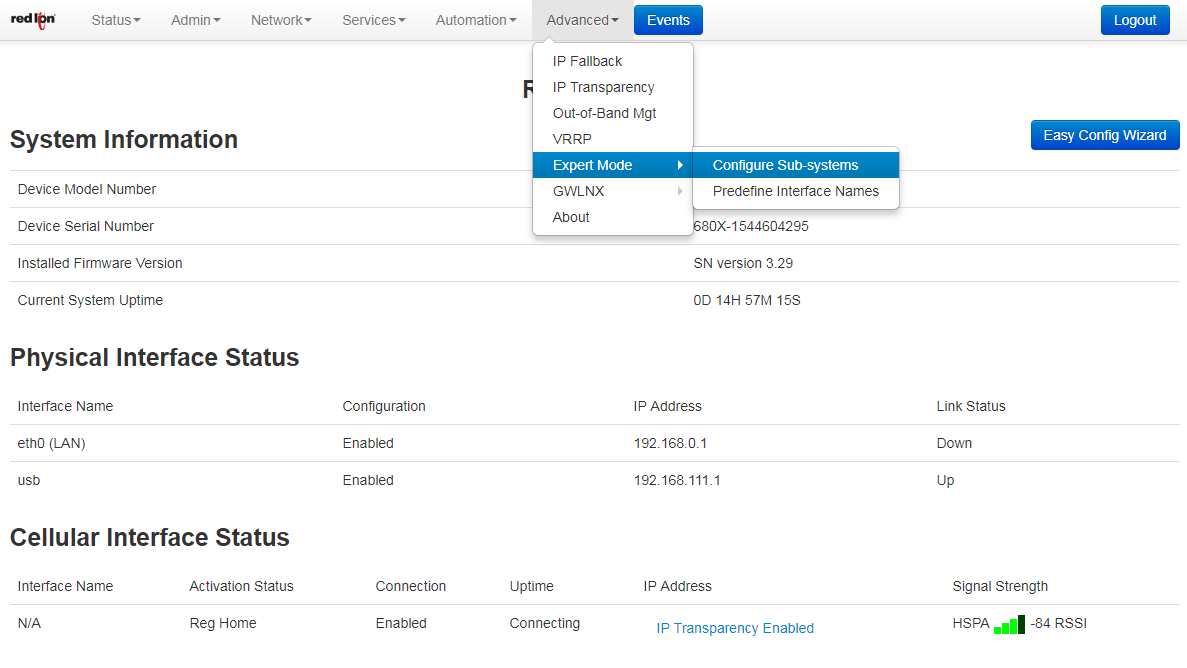

The “Configure Sub-systems” menu item allows you to edit the main configuration files of the Sixnet router. Again, it is not recommended that you perform configuration activities using this facility unless instructed to do so by Sixnet Technical Support.

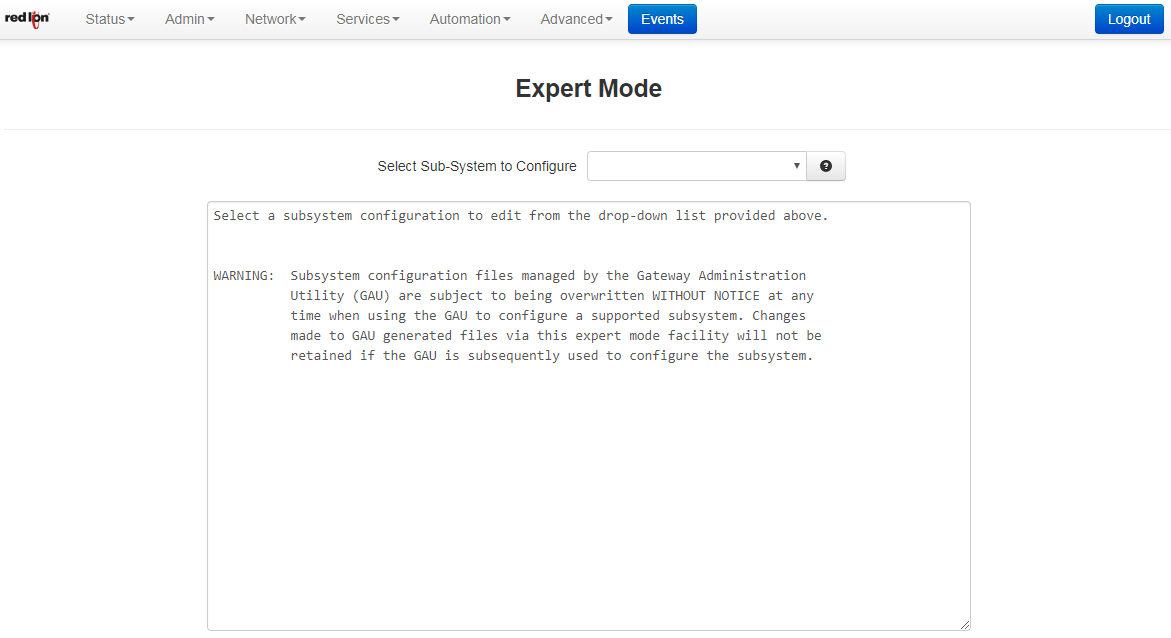

Click on the “Configure Sub-systems” menu item and the following window will appear:
The following is a list of the sub-system files that are available for editing:
Your choice will load the given sub-system’s configuration file into the text box for editing.
The following controls (buttons) are available:

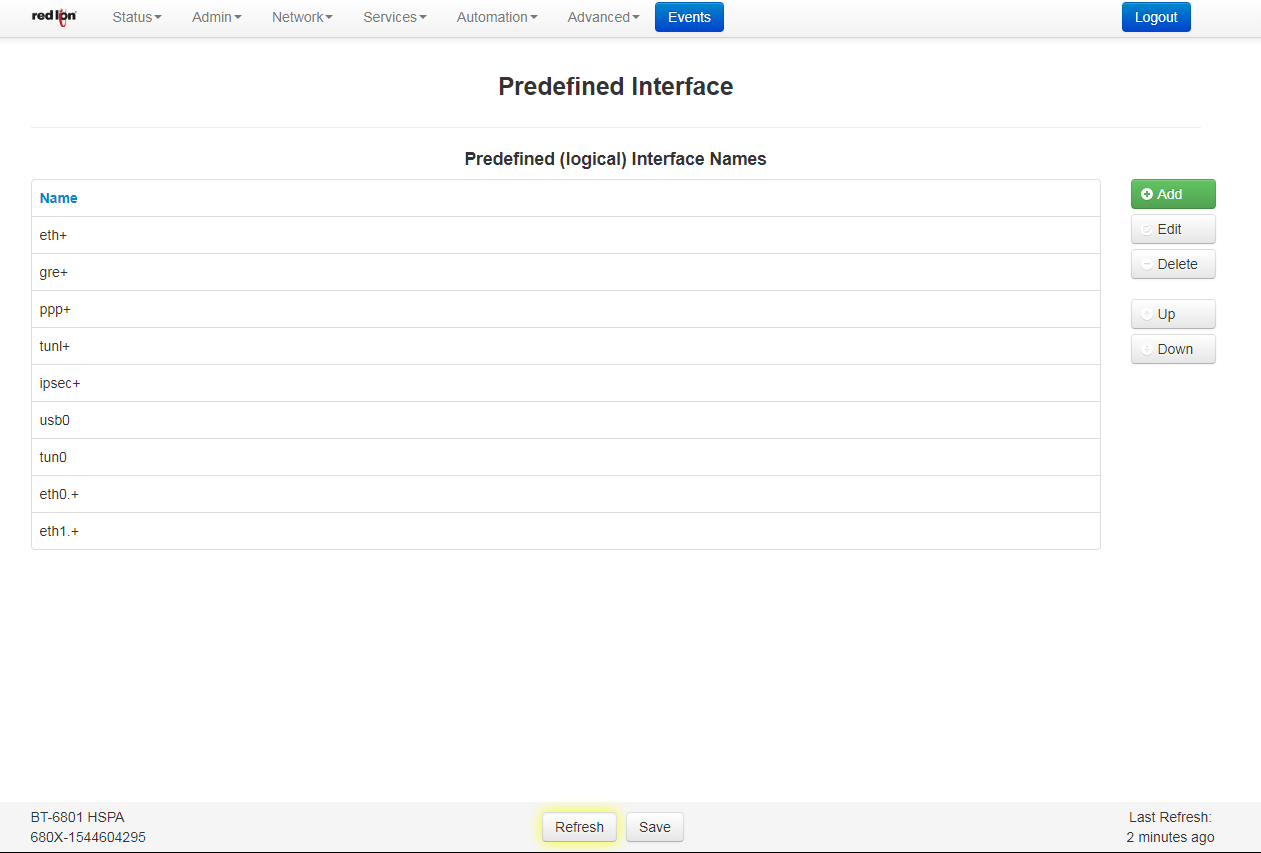

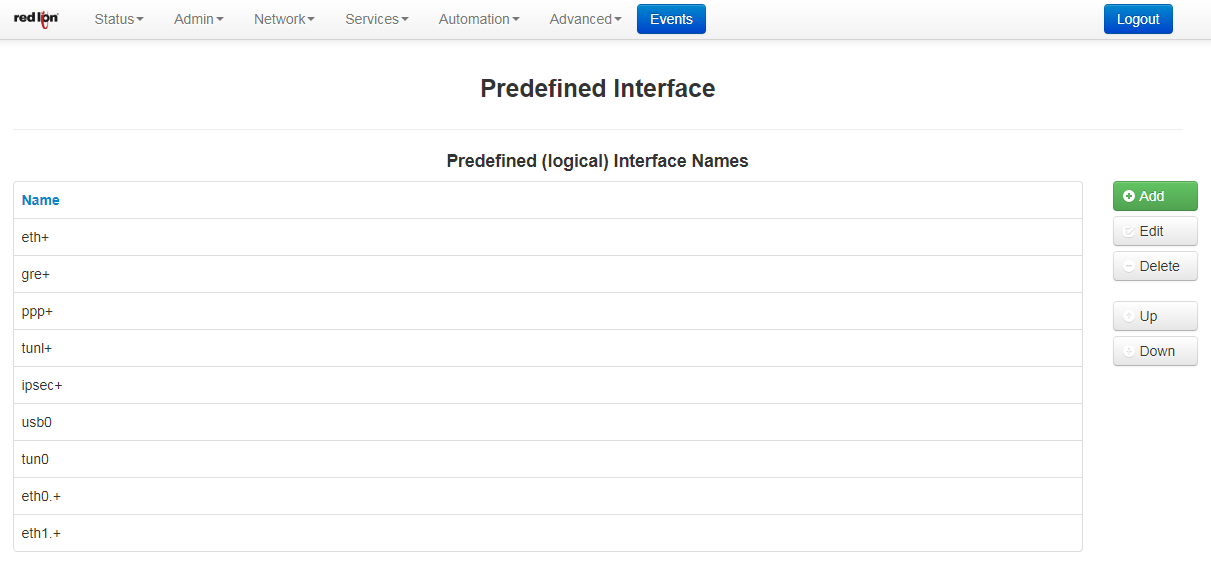

The “Predefined Interface Names” menu item allows you to create a named interface for use in applications such as OpenVPN that require a logical interface, i.e. tun0 that the Sixnet router does not know about. Using the Predefined Interface Name will place the name of the interface into the pull-down menus of interface selections to be used by the system.

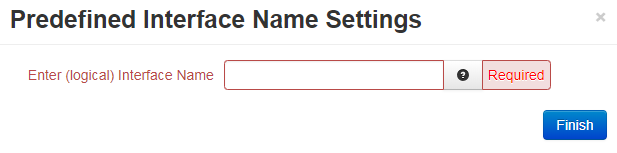

Enter (logical) Interface Name: Enter the name of the interface to be predefined, i.e. tun0, gre4, ppp100.
