How to change Values in MAPS with conversions?

14 Feb 2024

This article will give you an overview of how you can change Values in MAPS with the Conversion feature.

APPLICABLE PRODUCTS

Protocol Translators that are configured via MAPS

PRE-REQUISITES

Installed MAPS Software

IN THIS ARTICLE

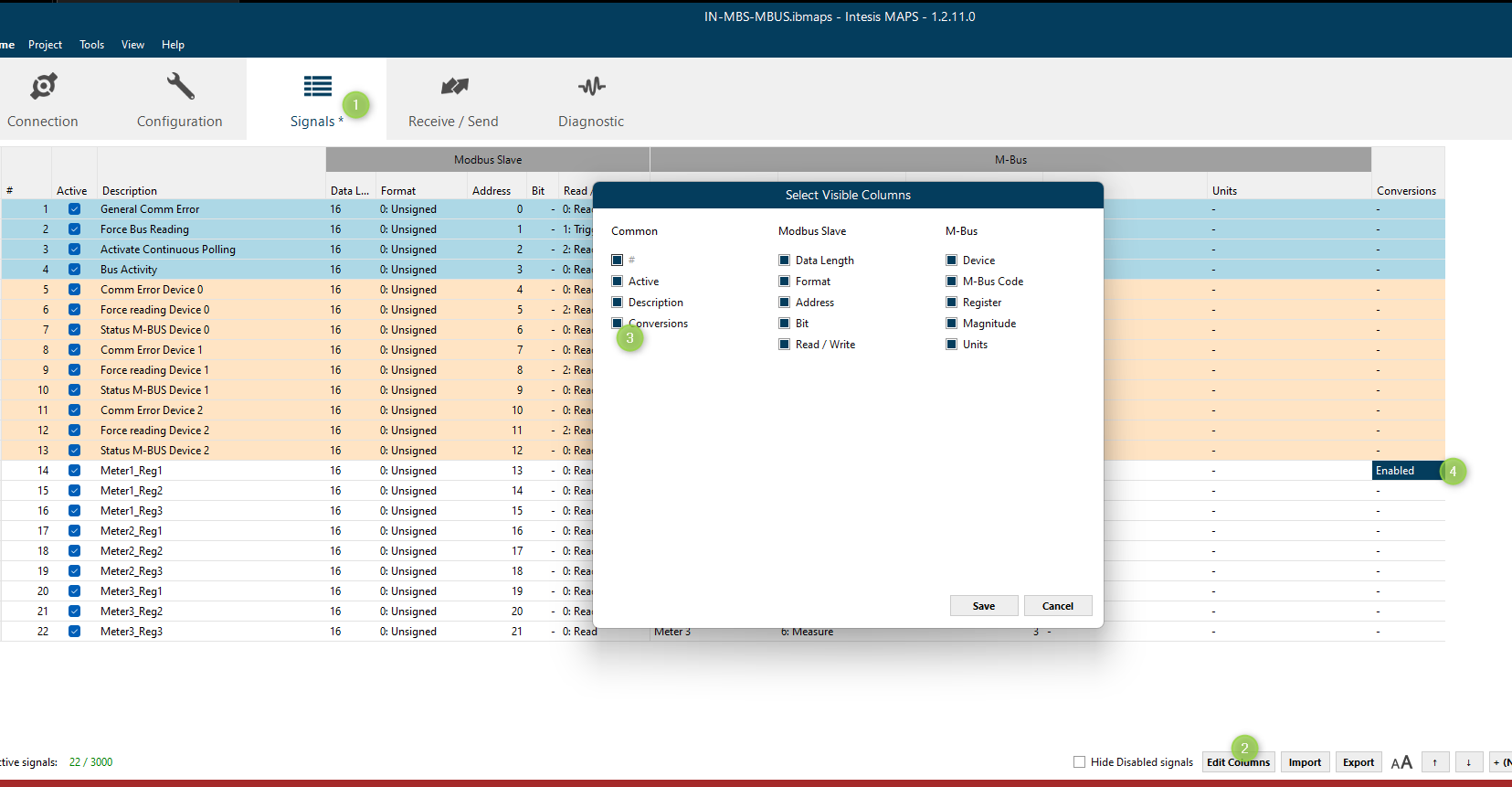

In Maps, go to the Signals TAB (1). Then, on the bottom right, select Edit Columns (2).

In the next window, enable the Conversions Column (3) and close the window via the Save Button.

After that, you are able to enable and also see if a conversion is already enabled on the Signal.

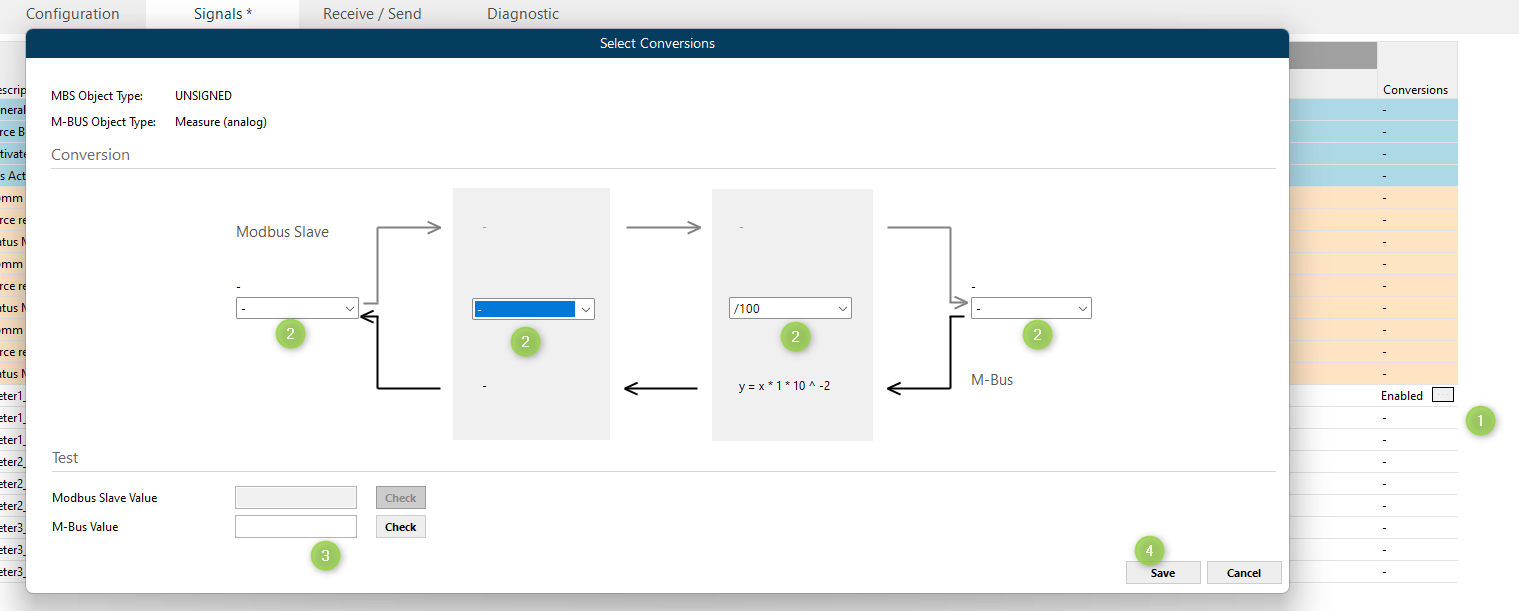

When you then click on the "..."

button, you can open the conversion window to change the Submitted Values between the networks.

On the Selectors (2), you can select between different options. On the outside, you can select different limitations like this:

On the inside, you can select different conversion styles like this:

With the Check function (3), you can, as the name intends, check if the conversion works as it should.

After the changes, close the window via the Save Button (4) to apply the changes.
