The built-in web interface of Anybus Communcator cannot be accessed

24 Nov 2023

This article describes the issues you need to pay attention to when accessing the Communicator built-in web interface  through  browser.



APPLICABLE PRODUCTS

All Anybus Communicator



QUESTION

The built-in web interface of Anybus Communcator cannot be accessed.



ANSWER

  1. Check the connection between computer and gateway.

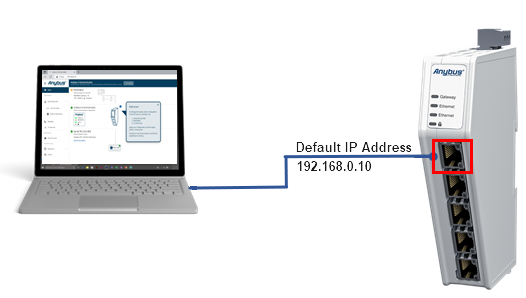

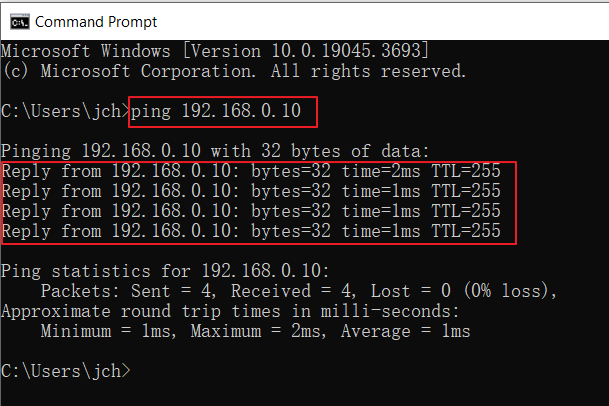

  2. Check the computer IP address within the same IP address range as the Communicator IP address .The default IP address of the gateway configuration port is 192.168.0.10. Run the ping command on PC to check the network connectivity.

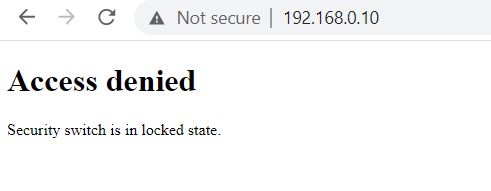

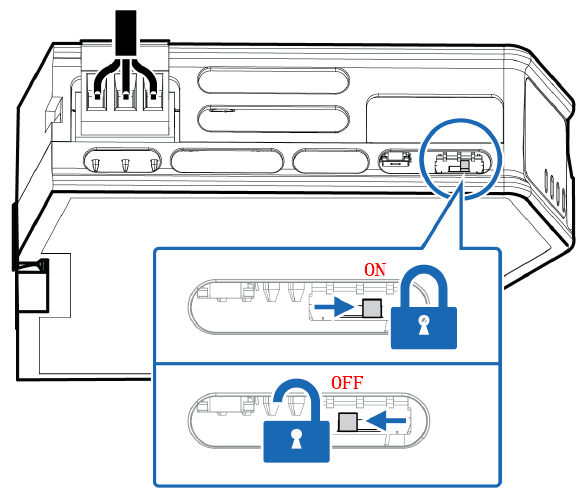

  3. Enter the IP address of the gateway configuration port at the browser. If the access was denied, please check  the security switch status, push the toggle towards the Communicator back.



ADDITIONAL INFO

Reset Anybus Communicator to factory settings
How to upgrade firmware for Anybus Communicator
