How to delete a viewON project from an Ewon

26 Oct 2023

If a viewON dashboard is no longer needed, it can be deleted by connecting to the Ewon through FTP and deleting the files. If the viewON project was set as the Ewon's homepage, this must be disabled separately.



APPLICABLE PRODUCTS

  • Ewon Flexy line
  • viewON



PRE-REQUISITES

  • Connection to Ewon Flexy
  • Login credentials (default adm/adm)



IN THIS ARTICLE



Delete the viewON files

To delete these files, connect to the Ewon over FTP. Windows File Explorer supports FTP by default, so this is a good option for those that don't already have an FTP client. For an Ewon with the IP 10.0.0.53, connect to ftp://10.0.0.53/ in File Explorer.

  1. Enter the Ewon's address in the FTP client or File Explorer

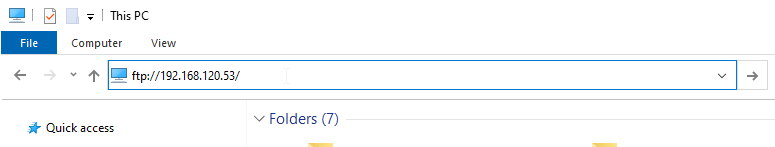

    Fig 1. an Ewon's address in File Explorer

  2. Enter the Ewon's login details (default adm/adm)

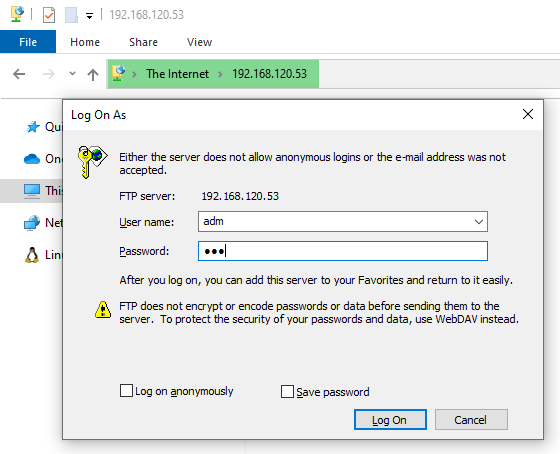

    Fig 2. signing in through File Explorer

  3. If using File Explorer, a second window may open with no files visible. Close this and switch to the window that shows a list of the Ewon's files

    Fig 3. a typical list of files on an Ewon

  4. Navigate to /usr, then delete the folder viewon

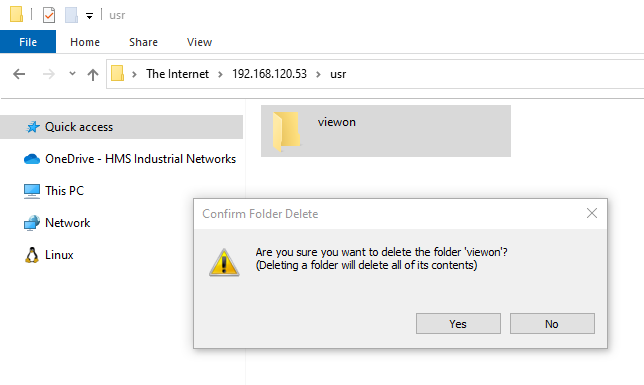

    Fig 4. deleting the viewon folder



Change the Ewon's homepage

If the viewON dashboard was set as the Ewon's homepage, navigating to the Ewon's IP in a browser will now show an error.

  1. Go to 10.0.0.53/index.shtm to reach the Ewon's configuration page
  2. Navigate to Setup -> System -> Main -> General -> Identification

  3. Change the "User defined home page" drop down to the first option and make sure the text box to the right is empty

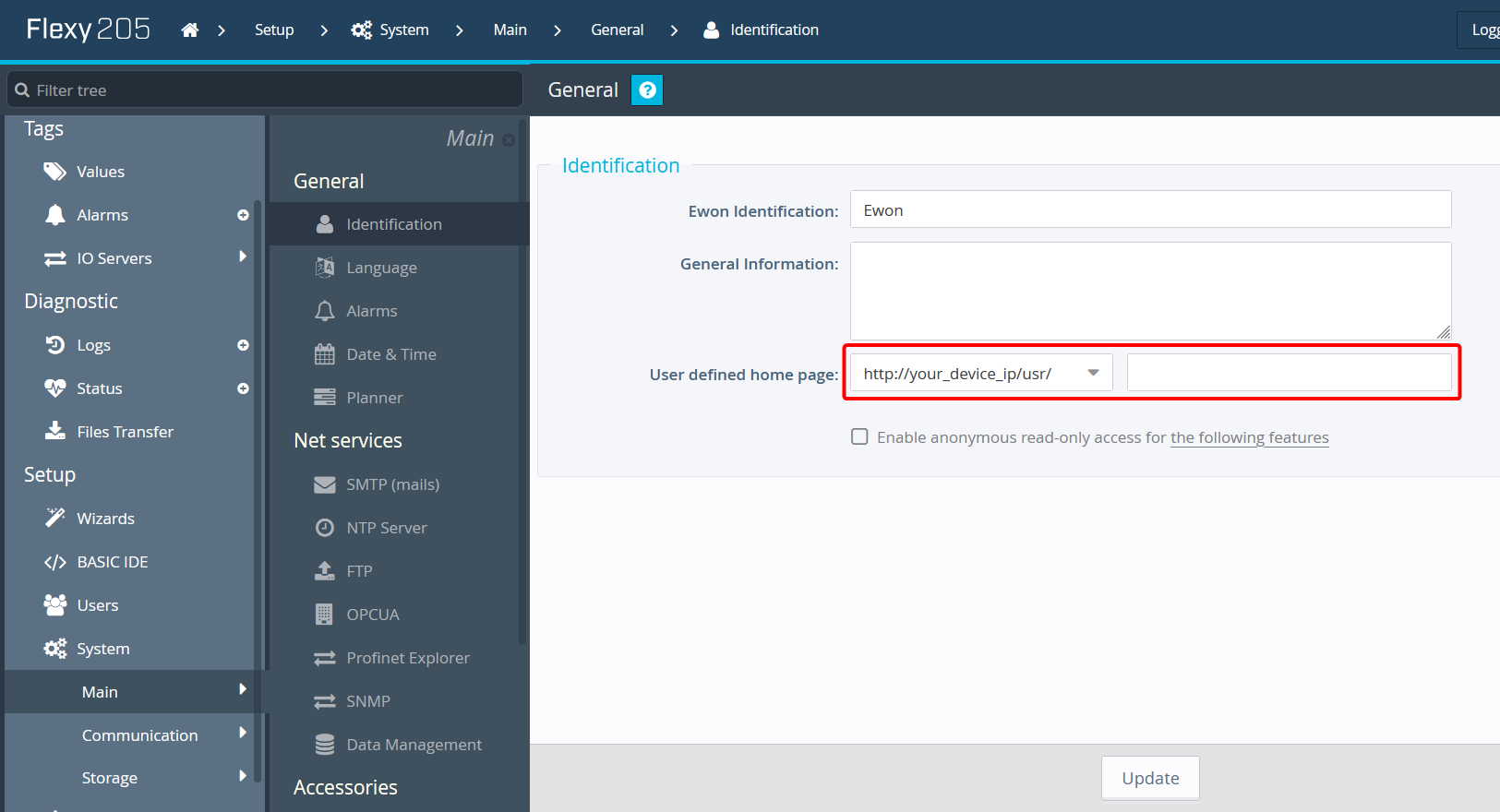

    Fig 5. correct home page configuration with the relevant options highlighted

  4. Click update to save
