Reset Anybus Communicator to factory settings

This Article shows you how to reset Anybus Communicator to factory settings

APPLICABLE PRODUCTS

All ABCxxxx products.

PRE-REQUISITES

Export configuration file of Anybus Communicator. All configuration information will be reset after factory settings.

IN THIS ARTICLE

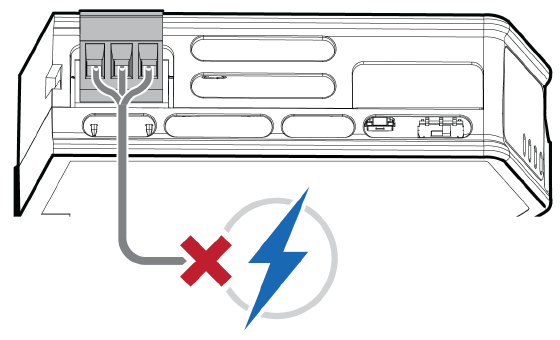

1. Disconnect the Communicator from power.

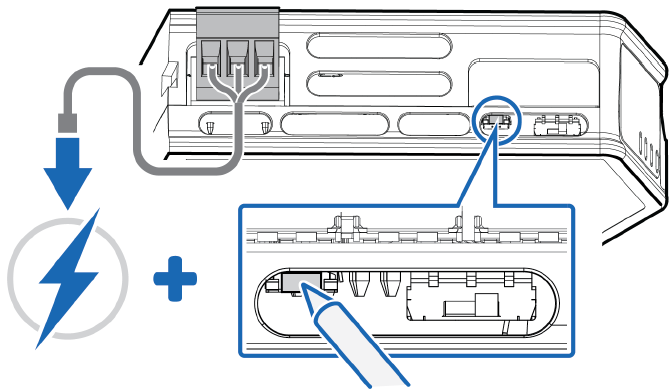

2. Use a pointed object, such as a ballpoint pen to press and hold the Reset button.
3. While holding the reset button, reconnect the Communicator to power.
4. Release the reset button.
   The Communicator enters exception state.

5. Reboot the Communicator.

ADDITIONAL INFO

How to upgrade firmware for Anybus Communicator
