1. Use ethernet cable to connect PC with the Communicator X1 port.
- The Communicator configuration port default IP address is 192.168.0.10
- Set the PC a static IP address within the same IP address range as the Communicator IP address.
2. Open a web browser, click to select the Address bar and enter the Communicator IP
address: 192.168.0.10.
(Recommend: Google Chrome or Microsoft Edge web browser)
3. Upload the firmware file.
- On the “Files & firmware” page
- Click “Upload”
- Click “Select firmware file(.hiff)”
- Find the firmware file
- Click “Open”
- Click “Update Firmware”

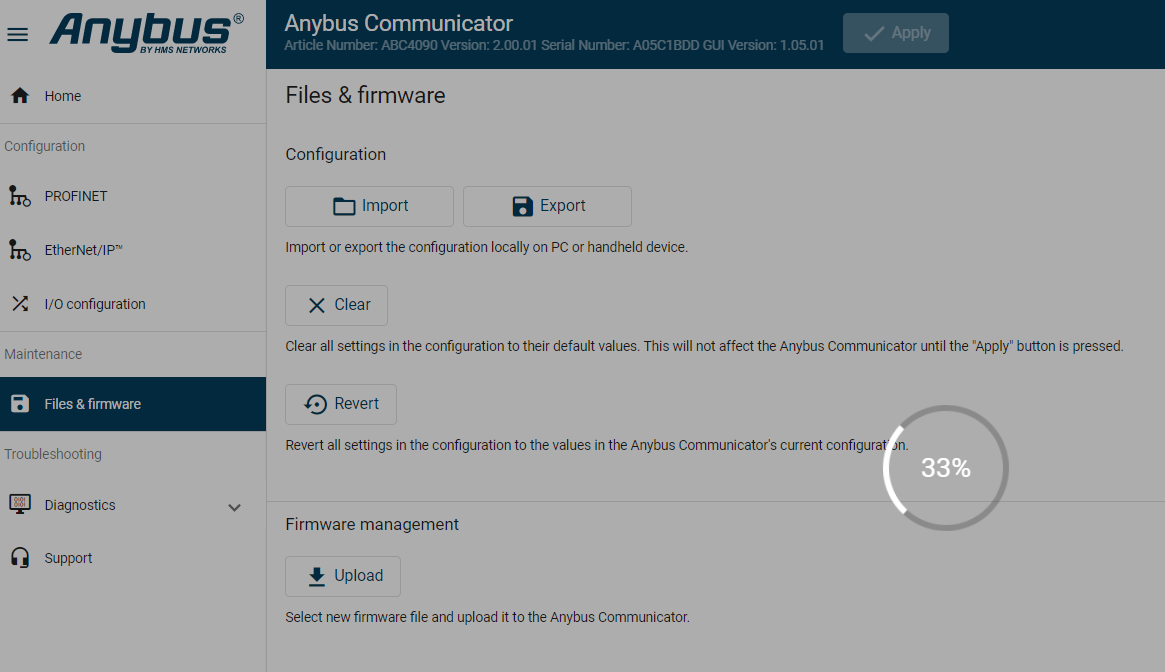

4. System firmware upgrade.
- This process takes about 5 minutes
- No operation is required during this period
- Don't power down the Communicator
5. Result.
- √ indicates the upgrade is complete.
- The Communicator automatically reboots, for the upgrade to take effect.
