Enable wireless industrial communication via Bluetooth or Wi-Fi
Item number AWB2001-B

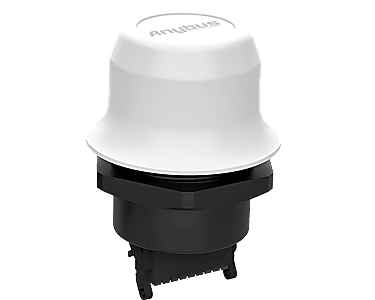

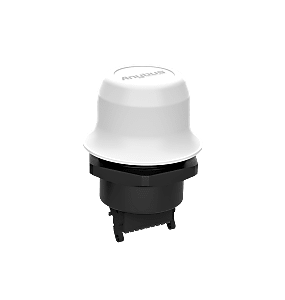

The Anybus Wireless Bolt Ethernet 18-pin - White connects Ethernet-based machines to wireless networks via Bluetooth®, Bluetooth Low Energy, or Wi-Fi. Designed for multi-directional applications, it's ideal for establishing wireless connections with roaming machines, such as AGVs or control cabinets from any angle.
Thanks to the integrated design of the antenna and communication module, there's no need for additional antenna or accessory purchases.
Provides fast roaming (IEEE 802.11r) and high link speeds (IEEE 802.11n). Simultaneous Bluetooth and Wireless LAN operation allows bridging between the two networks for enhanced connectivity.
Ideal for establishing wireless connections to roaming machines, such as AGVs, or to control cabinets from any angle.
Wirelessly connect to the Anybus Bolt and easily access the machine or cabinet. Configure the PLC or machine without halting or hindering production.
Ideal for connecting field-level devices that require short start-up times and high determinism.
All-in-one package featuring a connector, communication processor, and integrated antenna in the same unit. Use the same connector (2x9pPlug Connector) for both power and communication.
Communicates over Industrial Ethernet, supporting protocols such as BACnet/IP, PROFINET, EtherNet/IP, Modbus TCP, as well as all TCP and UDP-based protocols.
Withstands harsh environments due to its IP66/67-rated enclosure and wide operating temperature range. Choose the white top Sunbolt option for 30% better protection against higher temperatures.
Attach the Wireless Bolt directly onto cabinets or machines to look like an integrated part of the installation. Or use the Bolt Base Protector mounting kit to install it on a pole, wall, or similar.
Establish a wireless connection in seconds thanks to the intuitive web-based interface.
The Command Line Interface (CLI) provides configuration and diagnostic capabilities, offering greater control and insight into your network.
Fully compatible with Anybus Wireless Bridge, a wireless product designed for point-to-point applications, enabling you to implement comprehensive wireless infrastructure.
Enable wireless industrial communication via Bluetooth or Wi-Fi
The Anybus Wireless Bolt Ethernet RJ45 PoE - Black connects Ethernet-based machines to wireless networks via Bluetooth®, Bluetooth Low Energy, or Wi-Fi. Designed for multi-directional applications, it's ideal for establishing wireless connections with roaming machines, such as AGVs or control cabinets from any angle. PoE support simplifies installation.
Connects industrial machines to 4G and or 3G networks.
The Anybus Wireless Bolt LTE Japan Docomo - Black is an industrial-grade router designed to provide high-speed transparent internet access to both stationary and mobile industrial machines. Utilizing LTE (4G) with 3G fallback, it enables comprehensive remote monitoring and analysis, increasing system uptime and reducing maintenance costs.
Enable wireless industrial communication via Bluetooth or Wi-Fi
The Anybus Wireless Bolt Ethernet RJ45 PoE - White connects Ethernet-based machines to wireless networks via Bluetooth®, Bluetooth Low Energy, or Wi-Fi. Designed for multi-directional applications, it's ideal for establishing wireless connections with roaming machines, such as AGVs or control cabinets from any angle. PoE support simplifies installation.
Enables low power, low bandwidth 4G access for remote industrial machines
The Anybus Wireless Bolt IoT - Black is an industrial-grade router designed to provide low-power, low-bandwidth internet access to both stationary and mobile industrial machines. Utilizing the 4G LTE standards NB-IoT and CAT-M1 and with 2G (GPRS/EDGE) fallback, it can be deployed around the world.
Connects industrial machines to 4G and or 3G networks.
The Anybus Wireless Bolt LTE Americas - Black is an industrial-grade router designed to provide high-speed transparent internet access to both stationary and mobile industrial machines. Utilizing LTE (4G) with 3G fallback, it enables comprehensive remote monitoring and analysis, increasing system uptime and reducing maintenance costs.
Enable wireless industrial communication via Wi-Fi 5
The Anybus Wireless Bolt II - Americas, a robust Wi-Fi 5 access point and client, provides reliable wireless connectivity in tough industrial environments. With support for WDS, it bridges industrial Ethernet protocols. Its ability to transfer high data rates makes it ideal for connecting machines (such as AGVs) to Control and SCADA levels.
Connects industrial machines to 4G and or 3G networks.
The Anybus Wireless Bolt LTE EMEA - White is an industrial-grade router designed to provide high-speed transparent internet access to both stationary and mobile industrial machines. Utilizing LTE (4G) with 3G fallback, it enables comprehensive remote monitoring and analysis, increasing system uptime and reducing maintenance costs.
Connect serial machines in multi-directional applications via Bluetooth or Wi-Fi
The Anybus Wireless Bolt Serial - Black connects serial machines to wireless networks via Bluetooth® or Wi-Fi. Designed for multi-directional applications, it's ideal for establishing wireless connections with roaming machines, such as AGVs or control cabinets from any angle. It also works as a Modbus-TCP to Modbus-RTU router.
Connect CAN machines in multi-directional applications via Bluetooth or Wi-Fi
The Anybus Wireless Bolt CAN - White connects CAN-based machines to wireless networks via Bluetooth® or Wi-Fi. Designed for multi-directional applications, it's ideal for establishing wireless connections with roaming machines, such as AGVs or control cabinets from any angle.
Enable wireless industrial communication via 5G
The Anybus Wireless Bolt 5G connects industrial devices and machines to 5G networks, enabling low latency, high throughput, and high reliability. Combined with the Anybus Tunnel Gateway, it enables communication on PROFINET, EtherNet/IP, or Modbus TCP networks over 5G. Its bolt-on form factor with IP67 protection facilitates versatile deployment.
Enables low power, low bandwidth 4G access for remote industrial machines
The Anybus Wireless Bolt IoT - White is an industrial-grade router designed to provide low-power, low-bandwidth internet access to both stationary and mobile industrial machines. Utilizing the 4G LTE standards NB-IoT and CAT-M1 and with 2G (GPRS/EDGE) fallback, it can be deployed around the world.
Connect serial machines in multi-directional applications via Bluetooth or Wi-Fi
The Anybus Wireless Bolt Serial - White connects serial machines to wireless networks via Bluetooth® or Wi-Fi. Designed for multi-directional applications, it's ideal for establishing wireless connections with roaming machines, such as AGVs or control cabinets from any angle. It also works as a Modbus-TCP to Modbus-RTU router.
Quick and easy way to try out the Anybus Wireless Bolt
The Anybus Wireless Bolt Ethernet 18-pin starter kit simplifies testing with the Anybus Wireless Bolt, enabling you to connect to Ethernet-based machines via Bluetooth®, Bluetooth Low Energy, or Wi-Fi. Designed for multi-directional applications, it's ideal for establishing wireless connections with roaming machines, such as AGVs or control cabinets from any angle.
Enable wireless industrial communication via Bluetooth or Wi-Fi
The Anybus Wireless Bolt Ethernet 18-pin - Black connects Ethernet-based machines to wireless networks via Bluetooth®, Bluetooth Low Energy, or Wi-Fi. Designed for multi-directional applications, it's ideal for establishing wireless connections with roaming machines, such as AGVs or control cabinets from any angle.
Connect CAN machines in multi-directional applications via Bluetooth or Wi-Fi
The Anybus Wireless Bolt CAN - Black connects CAN-based machines to wireless networks via Bluetooth® or Wi-Fi. Designed for multi-directional applications, it's ideal for establishing wireless connections with roaming machines, such as AGVs or control cabinets from any angle.
Enable wireless industrial communication via Bluetooth or Wi-Fi
The Anybus Wireless Bolt Ethernet 18-pin - White connects Ethernet-based machines to wireless networks via Bluetooth®, Bluetooth Low Energy, or Wi-Fi. Designed for multi-directional applications, it's ideal for establishing wireless connections with roaming machines, such as AGVs or control cabinets from any angle.
Connects industrial machines to 4G and or 3G networks.
The Anybus Wireless Bolt LTE Japan Docomo - White is an industrial-grade router designed to provide high-speed transparent internet access to both stationary and mobile industrial machines. Utilizing LTE (4G) with 3G fallback, it enables comprehensive remote monitoring and analysis, increasing system uptime and reducing maintenance costs.
Connects industrial machines to 4G and or 3G networks.
The Anybus Wireless Bolt LTE Americas - White is an industrial-grade router designed to provide high-speed transparent internet access to both stationary and mobile industrial machines. Utilizing LTE (4G) with 3G fallback, it enables comprehensive remote monitoring and analysis, increasing system uptime and reducing maintenance costs.
Connects industrial machines to 4G and or 3G networks.
The Anybus Wireless Bolt LTE EMEA - Black is an industrial-grade router designed to provide high-speed transparent internet access to both stationary and mobile industrial machines. Utilizing LTE (4G) with 3G fallback, it enables comprehensive remote monitoring and analysis, increasing system uptime and reducing maintenance costs.
Enable wireless industrial communication via Wi-Fi 5
The Anybus Wireless Bolt II, a robust Wi-Fi 5 access point and client, provides reliable wireless connectivity in tough industrial environments. With support for WDS, it bridges industrial Ethernet protocols. Its ability to transfer high data rates makes it ideal for connecting machines (such as AGVs) to Control and SCADA levels.
