Optimize CAN network topologies with CAN repeaters

Optimize CAN network topologies

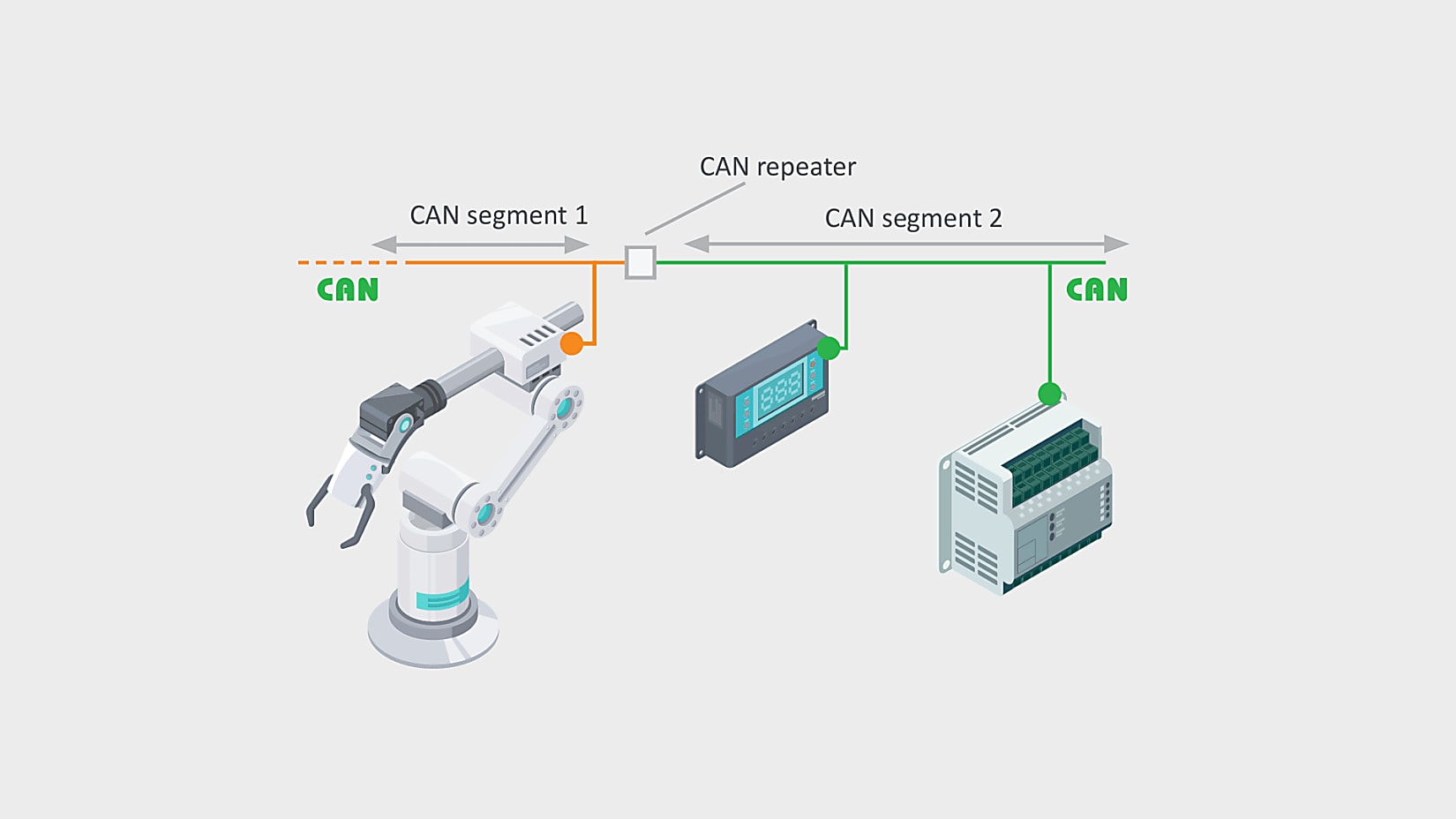

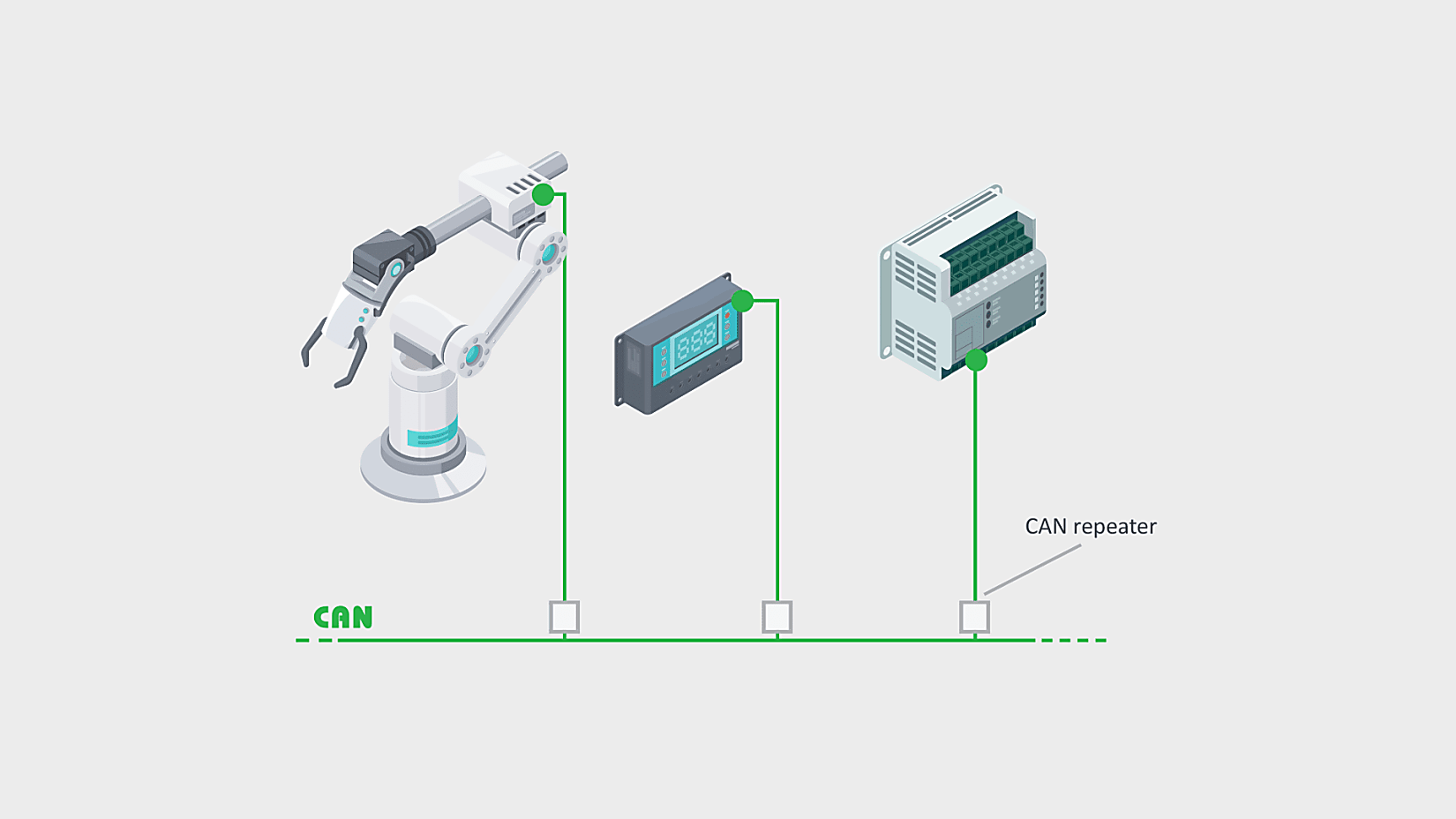

The CAN/FD Repeater Standard is crucial for optimizing the topology of CAN networks, allowing for the implementation of configurations beyond the basic line topology, such as star and tree topologies. The primary function of a CAN repeater is to regenerate the CAN signals. By using repeaters, network designers can extend the physical limits of a CAN network and they can increase the number of nodes. This capability is especially valuable in large-scale industrial settings where equipment might be spread over substantial distances.
Achieve a stable CAN network – Watch the video!
Filter EMI influences with CAN FD repeaters

Filter EMI influences

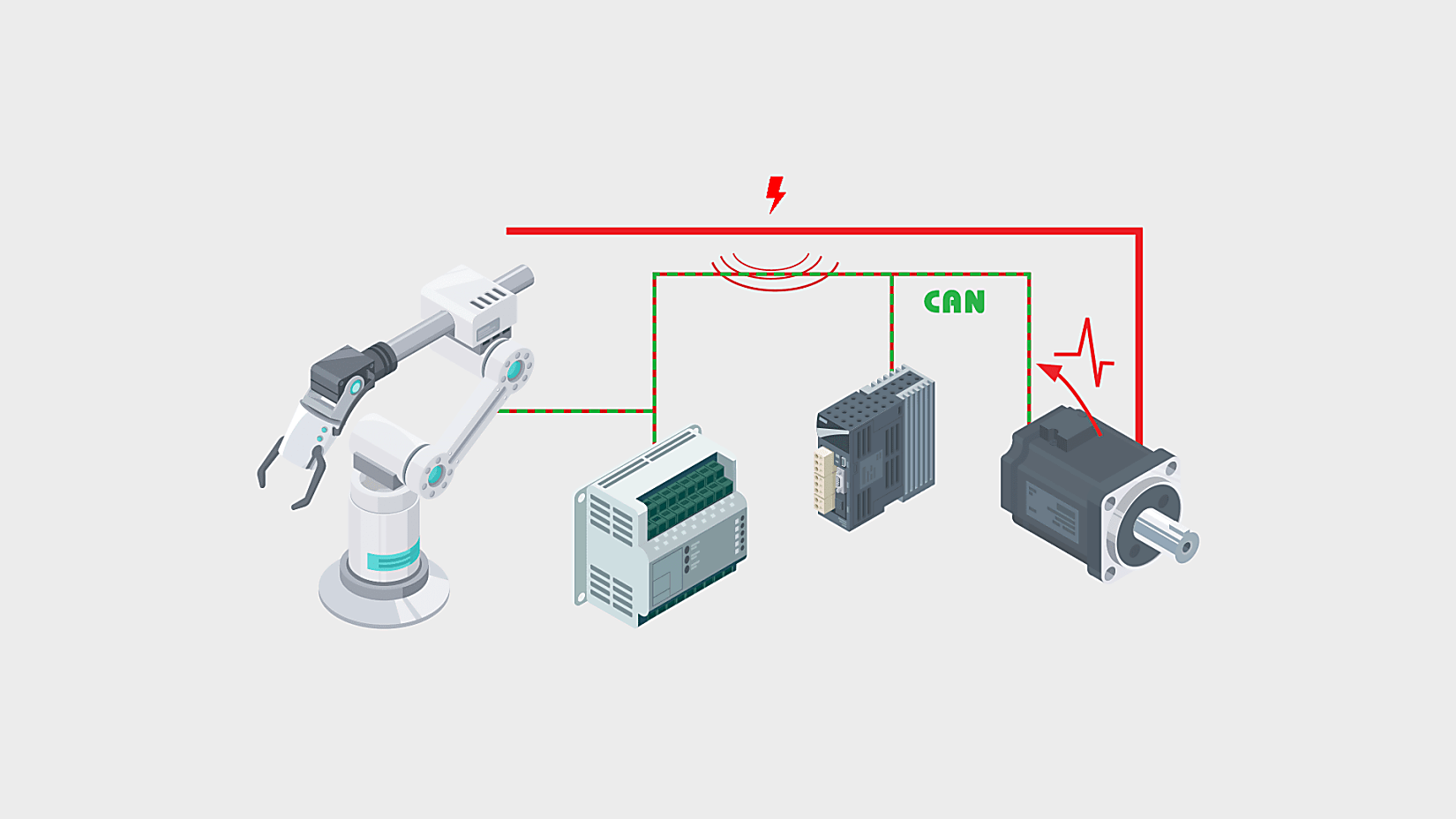

Electromagnetic interferences (EMI) can significantly disrupt the CAN signal integrity. The CAN/FD Repeater Standard contributes to reducing EMI influences within the network by regenerating the signal, thus dampening the noise picked up during transmission. The capability of repeaters to isolate and reconstruct signals means that disturbances from external sources are less likely to propagate through the network, ensuring cleaner and more reliable communications​.
Improve signal quality with CAN repeaters

Improve the signal quality of your CAN network

The CAN/FD Repeater Standard enhances signal quality within CAN networks by regenerating and retransmitting the signals as they pass through. This process helps to restore and stabilize signal strength and shape, countering degradation from extended transmission distances or electrical noise. The repeaters ensure that signals remain strong and clear over long cable runs, crucial for maintaining data integrity and minimizing errors in communication.

Protect your assets from overvoltage with galvanic isolation

Galvanic isolation provided by the CAN/FD Repeater Standard serves as a critical protective feature for network components. The isolation up to 5 kV prevents voltage spikes and other electrical hazards from spreading across the network, which can cause damage to sensitive electronics and lead to data corruption. By isolating different segments of the network, repeaters enable the overall resilience and safety of the system, safeguarding against both gradual degradation and acute electrical failures.

The CAN/FD Repeater Standard

Unbeatable usability. Easy installation. Maintenance-free product life cycle.
That’s the new CAN/FD Repeater Standard by Ixxat. Get all the details.

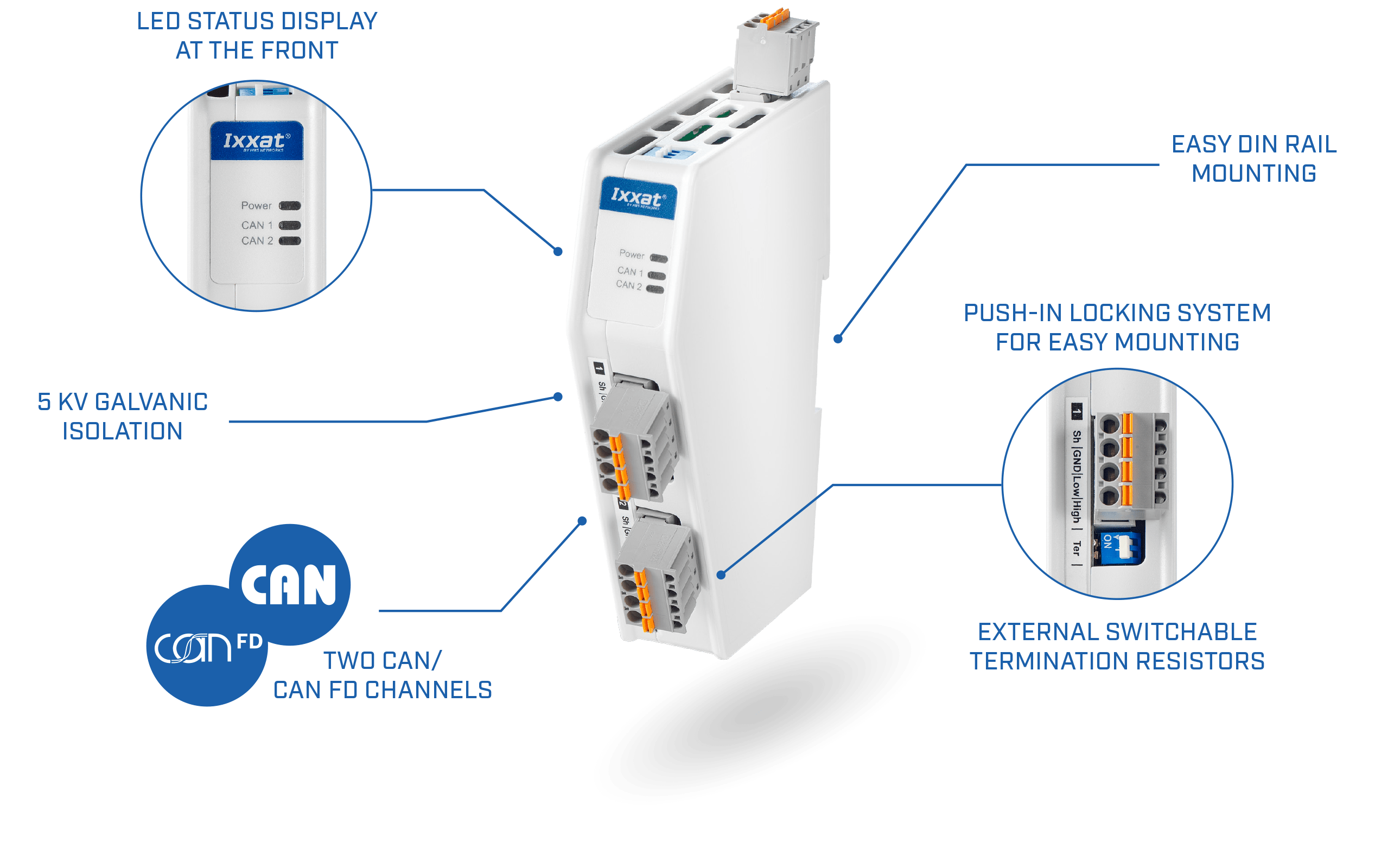

CAN/FD Repeater Standard Features and Highlights

Further information about the product, downloads and order details are on the product page.



            Go to the product page

Key technical features

  • Two CAN/CAN FD interfaces supporting arbitration rates up to 1 Mbit/s and data rates up to 8 Mbit/s
  • CAN/FD Transceiver TCAN1044
  • CAN connection: Removable Push-In Connectors
  • Externally Switchable CAN bus termination resistors
  • Galvanic Isolation up to 5 kV
  • Operating Temperature -25 °C to +70 °C
  • Protection Class IP20
  • Dimensions 108 x 149 x 27 mm
  • Power-efficient design operating at less than 100 mA at 24 V DC
  • Compliance with CE and FCC certifications


One Repeater. Endless Industries.

The CAN/FD Repeater Standard plays an important role in manifold industries, supporting robust and reliable communication essential for operations in industrial environments such as production, automation, energy, transportation or logistics. The widespread applications across these fields highlights the fundamental importance of CAN repeaters in modern technological infrastructures.
