How To connect IN770AIR00xxxO000 gateway to DAIKIN AC system?

In this article, it is explained the steps to do on DAIKIN setup before commissioning the gateway.

APPLICABLE PRODUCTS

• IN770AIR00SO000
• IN770AIR00MO000
• IN770AIR00LO000

PRE-REQUISITES

The user should know how to do addressing outdoor units, indoor units and group addressing. If not, the user should consult to relevant DAIKIN manual or contact with DAIKIN technical service.

STEPS

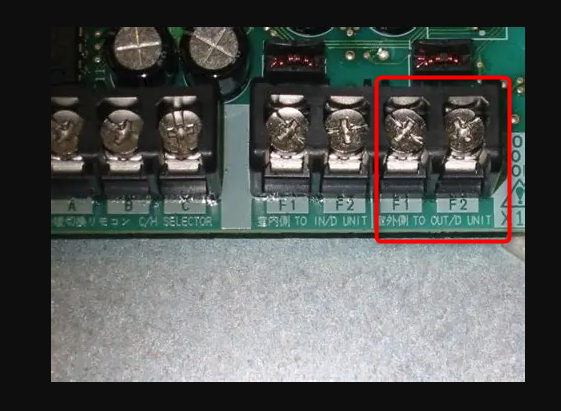

1. The gateway must be connected to the outdoor unit (F1/F2 OUT) connector. If the gateway is connected to Indoor Unit, it will not work.

2. The indoor, outdoor and group addressing must be done correctly, without any duplicate addressing.
