How to setup a CUB5I panel meter for the first time

10 Jul 2025

PLEASE NOTE

The CUB5I panel meter is used to monitor analog DC current inputs, with several ranges available. Based on the application, a few parameters will need to set.

The default input range jumper setting is 20 mA. For applications using signal levels above 20mA, there is a 200 mA position available. Consult page 3 of the product manual for additional information.



APPLICABLE PRODUCTS

CUB5IR00

CUB5IB00



PRE-REQUISITES

None



IN THIS ARTICLE

  • CUB5I input signal range jumper location.

  • CUB5I power connection
  • CUB5I input signal connection
  • CUB5I programming

 Referenced below are the power and input signal connections for the CUB5I panel meter. If more information is required, consult pages 3- 5 of the product manual.

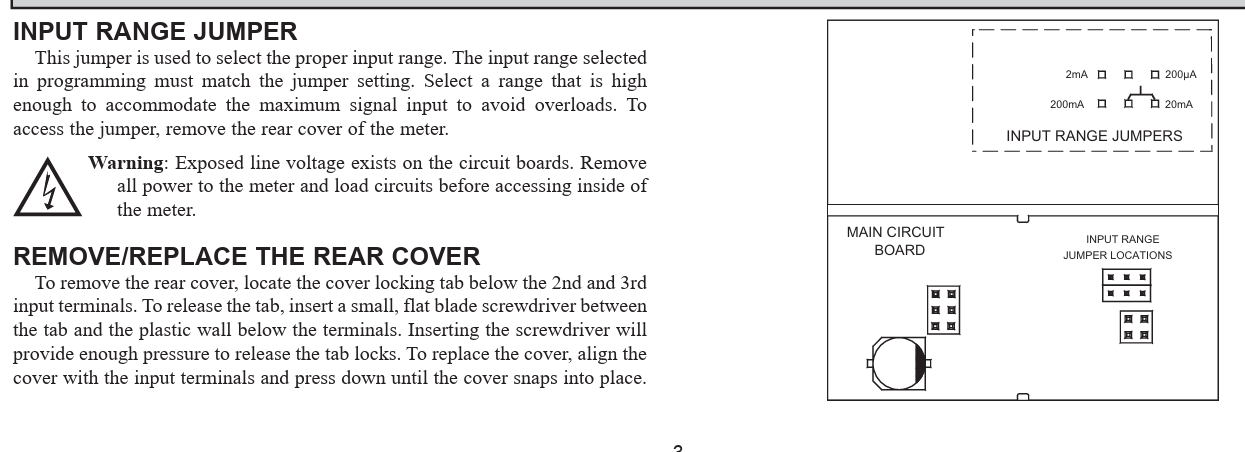

CUB5I jumper.png



CUB5I input signal jumper

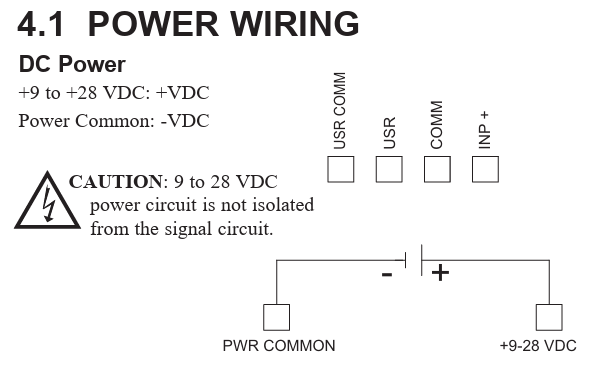

CUB5I Power.PNG



CUB5I power connections.

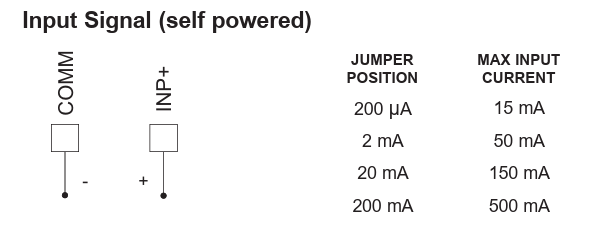

CUB5I Signal.PNG



 CUB5I input signal connections





Programming the CUB5I based on application is covered on page 7 of the product manual. Parameters that will need to be set.



Menu 1-INPUT

  • Range-input signal level
  • DECPT- display resolution decimal place
  • STYLE-Select either manual key in meter scaling or by using the active input signal
  • INP1- input signal level low. Example 4mA
  • DSP1- display value based on low level input signal.
  • INP2- input signal high value. Example 20 mA.
  • DSP2- display value based on high level input signal



Example unit input scaling procedure

End user has a transducer with a 4-20 mA output and wants the display scale to read PSI.  Pressure range of the transducer is 0-1000 PSI.

The CUB5I scales the input via firmware settings. Please see Page 7 of the CUB5I product manual.  Menu 1-INP

Given the above example, you would program as follows.

  • RANGE 0.02A
  • DECPT  0
  • OFSET  0
  • FILTR    1
  • BAND  10
  • STYLE KEY
  • INP1   4.000
  • DSP1   0
  • INP2   20.000
  • DSP2   1000

The above example was scaled using the STYLE KEY method. The end user knows the input signal type as well as the transducer range.  If the signal type is known but not the range of the transducer.  The CUB5I can be scaled using the active input signal level and then scaled to a known reference value using the STYLE APLY method. Please see page 7 of the CUB5I product manual.



ADDITIONAL INFO

Link to CUB5I product manual

 CUB5I Product Manual
