Modbus protocol is an industry-wide serial communications standard supported by many PLC and industrial controls manufacturers. There are two serial Modbus protocols: Modbus RTU and Modbus ASCII. Both protocols can be recognized by most SIXNET stations and I/O modules over their serial port(s).
There are two Open Modbus protocols for Ethernet communication: Modbus/UDP and Modbus/TCP. Both protocols can be recognized by SIXNET stations and I/O modules that have Ethernet port(s).
For more information on Modbus protocol refer to the Modicon Modbus Protocol Reference Guide, available from Modicon.
Most SIXNET stations and I/O modules can be configured to send and/or receive Modbus RTU or Modbus ASCII messages. The "Modbus ASCII Slave" and "Modbus RTU Slave" modes for serial ports allow the station to respond to Modbus commands from a Modbus master device such as a PLC or touchscreen display. Here are some of the Modbus capabilities of SIXNET I/O:
The Modbus master and slave modes for serial ports are selected from within the configuration windows for the station.
EtherTRAK modules and Ethernet gateways can act as media converters, passing Modbus ASCII or Modbus RTU protocol from their Ethernet port to their RS485 or RS232 port. Note that the incoming and outgoing protocols must match each other for the passthru mode to work properly.
Most SIXNET stations can receive Modbus protocol over Ethernet TCP/IP. This support is based on the Modicon Open Modbus/TCP Specification.
SIXNET stations with Modbus/TCP capability include:
IPm stations with version 1.5 or newer firmware can be configured to send Modbus/UDP or Modbus/TCP protocol over their Ethernet port(s) to Modbus compatible devices. This capability requires the optional SCS Feature Set of the SIXNET I/O Tool Kit.
SIXNET stations support the following Modbus commands as described in the AEG Modicon document, Modicon Modbus Protocol Reference Guide PI-MBUS-300 Rev. E. RemoteTRAK and EtherTRAK modules support only the command(s) that apply to their I/O type(s).
Modbus commands that a SIXNET station may reply to:
01 - Read multiple discrete outputs
02 - Read multiple discrete inputs
03 - Read multiple analog outputs
04 - Read multiple analog inputs
05 - Write a single discrete output
06 - Write a single analog output
15 - Write multiple discrete outputs
16 - Write multiple analog outputs
Modbus commands that a SIXNET station may send in Modbus I/O Transfer messages:
01 - Read multiple discrete outputs
02 - Read multiple discrete inputs
03 - Read multiple analog outputs
04 - Read multiple analog inputs
06 - Write a single analog output
15 - Write multiple discrete outputs
16 - Write multiple analog outputs

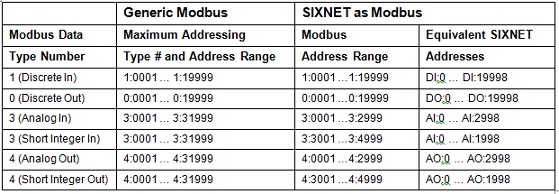

Many SIXNET products can be configured to send and/or receive Modbus protocol. When configuring a hardware device or HMI software to send Modbus commands to SIXNET hardware, specify the appropriate "SIXNET as Modbus" data type number and starting Modbus address. Refer to the "SIXNET as Modbus" columns in the chart below. When configuring a SIXNET programmable station to send Modbus commands (using I/O Transfers) to a non-SIXNET device, you can specify a Modbus data type number and an appropriate starting Modbus address that is anywhere within the "Maximum Modbus Address Range". If a SIXNET programmable station will be sending Modbus commands to another SIXNET station configured to respond to Modbus protocol, specify the appropriate "SIXNET as Modbus" data type number and starting Modbus address. Refer to the "SIXNET as Modbus" columns in the chart below.
Notes:
Examples:
Examples for floating point and long integer I/O are shown in the help topics for those I/O types.
Two transfer formats are supported for reading and writing long integer and floating point values: standard Modicon Protocol and Daniel extensions.
SIXNET Modbus Slave Operation:
IPm, SixTRAK and VersaTRAK stations can be configured to use Daniel extensions or the standard Modicon protocol when responding to Modbus commands for long integer or floating point registers.
SIXNET Modbus Master Operation:
IPm, SixTRAK and VersaTRAK stations can be configured to use Daniel extensions or the standard Modicon protocol when sending Modbus commands to read or write long integer or floating point registers. Daniel extension support can be enabled or disabled on a per-I/O transfer basis. When Daniel extension support is disabled, floating point and long integer registers are transferred as a pair of analog registers.
When configuring your SIXNET station, do not check the "Use Daniel Extension" checkbox if your Modbus master or slave device uses the Modicon (two 16-bit registers) method.
Note: EtherTRAK high-speed counter modules (ET-8CNT) do not support Daniel extensions. The 32 bit registers in this module are each read as a pair of 16 bit registers only.
Refer to the following topics for more information on the two transfer modes.
Note: The information in this help topic applies when exchanging longs and/or floats among SIXNET stations configured to respond to Modbus protocol. Other Modbus compatible equipment may be addressed differently.
The standard Modicon protocol supports the transfer of each floating point or long integer value as a pair of consecutive 16-bit analog registers. Some SIXNET stations can be configured with I/O transfers to read / write longs and floats.
In the station’s I/O transfer definition, specify the "First Register Number" of the remote station as an odd-numbered Modbus address or as an even-numbered SIXNET equivalent address. (Each even-numbered Modbus register contains the second half of the 32-bit value.) Refer to the Modbus Addressing Versus SIXNET Addressing topic for Modbus addressing information.
Here are some Modbus address examples. The first digit is the type number. The last 4 digits are the address. Note that a colon separator has been placed between the type number and the address for visual purposes only. Do not include the colon when entering a Modbus address.
3:5001 = Long input 0 of the station 4:5001 = Long output 0 of the station
3:5003 = Long input 1 of the station 4:5003 = Long output 1 of the station
3:5007 = Long input 3 of the station 4:5007 = Long output 3 of the station
3:7001 = Floating input 0 of the station 4:7001 = Floating output 0 of the station
3:7003 = Floating input 1 of the station 4:7003 = Floating output 1 of the station
3:7007 = Floating input 3 of the station 4:7007 = Floating output 3 of the station
Note: The information in this help topic applies when exchanging longs and/or floats among SIXNET stations configured to respond to Modbus protocol. Other Modbus compatible equipment may be addressed differently.
Daniel extension support is provided by some Modbus master and slave devices as a means of transferring floating point and long integer values as 32-bit registers. These extensions are detailed in the Daniel Industries document, Modbus Communications 2500 Host-Slave Communications Part Number 3-9000-545 Rev. C.
Some SIXNET stations can be configured with I/O Transfers to read / write longs and floats.
In the station’s I/O transfer definition, specify the "First Register Number" of the remote station as a Modbus address or as a SIXNET equivalent address. You can specify an odd or even first register address, as opposed to specifying only an odd-numbered Modbus address when transferring floats and longs as a pair of registers.
Here are some Modbus address examples. The first digit is the type number. The last 4 digits are the address. Note that a colon separator has been placed between the type number and the address for visual purposes only. Do not include a colon when entering a Modbus address.
DLI:0001 = Long input 0 of the station DLO:0001 = Long output 0 of the station
DLI:0002 = Long input 1 of the station DLO:0002 = Long output 1 of the station
DLI:0004 = Long input 3 of the station DLO:0004 = Long output 3 of the station
DFI:0001 = Floating input 0 of the station DFO:0001 = Floating output 0 of the station
DFI:0002 = Floating input 1 of the station DFO:0002 = Floating output 1 of the station
DFI:0004 = Floating input 3 of the station DFO:0004 = Floating output 3 of the station
