Connecting Sixnet Series Fiber Devices

06 Jun 2025

This guide provides an end-to-end overview of the process, troubleshooting common connectivity issues, and answers to frequently asked questions.

Introduction to Red Lion's Sixnet series Transceivers and Connectors

We offer two distinct types of transceivers:

  • 1x9 (SC or ST connectors)
  • SFP (LC connectors)

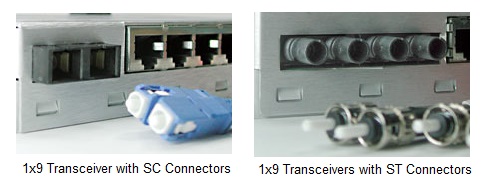

1x9 Transceivers with SC or ST Connectors

The 1x9 transceiver is offered on the fiber optic fast Ethernet (100 Mbps) ports. The notation “1x9” refers to the industry-standard pin-out of 1 row by 9 pins. Sixnet offers these transceivers with dual ST or SC style connectors. They are available as Multimode, Singlemode Short Haul (SX), or Singlemode Long Haul (LX). Other variations are available as special order.

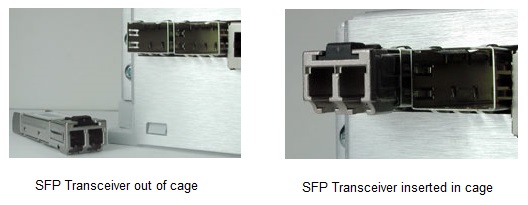

SFP (Small Form Pluggable) Tranceivers (aka Mini-Gbic) with LC Connectors

These transceivers are offered on the fiber optic gigabit Ethernet (1000 Mbps) ports. These transceivers plug into a cage assembly that is already in place in the Sixnet switch. They are more compact than the more traditional 1x9-style transceivers. Sixnet offers these transceivers with dual LC connectors. They are available as Multimode, Singlemode, or Singlemode Long Haul. Other variations such as CDWM (Coarse Wavelength Division Multiplexing) are available as a special order.




Fiber Transceiver Performance Specifications - Reference Tables

The following tables give the performance specifications of the fiber transceivers.

SIXNET Fiber Transceivers Performance Specifications

Ethernet Type

Mode

Data Rate (Mbps)

Signal Rate (MHz)

Wave-length (nm)

IEEE Standard

Fast Ethernet

Multi

100

125

1310

100BaseFX

Fast Ethernet

Single

100

125

1310

100BaseFX

Fast Ethernet

Single - long haul

100

125

1310

100BaseFX

Gigabit Ethernet

Multi

1000

1250

850

1000BaseSX

Gigabit Ethernet

Single

1000

1250

1310

1000BaseLX

Gigabit Ethernet

Single - long haul

1000

1250

1310

1000BaseLX

Gigabit Ethernet

Single - long haul

1000

1250

1550

1000BaseLH

Gigabit Ethernet

Single - long haul

1000

1250

1550

1000BaseLH

SIXNET Fiber Transceivers Performance Specifications (continued)

Ethernet Type

Mode

Power Budget

(Power-Sensitivity)

Transmitter Power*

Receiver Sensitivity*

Typical

Worst

Min.dB

Typ.dB

Max.dB

Min.dB

Typ.dB

Max.dB





Fast Ethernet

Multi

14 (-17 minus -31)

10 (-21 minus -31)

-21

-17

-14

--

-34

-31

Fast Ethernet

Single

20 (-11 minus -31)

16 (-15 minus -31)

-15

-11

-8

--

-36

-31

Fast Ethernet

Single – Long haul

31 (-3 minus -34)

29 (-5 minus -34)

-5

-3

0

--

-36

-34

Gigabit Ethernet

Multi

12 (-6 minus -18)

9 (-9 minus -18)

-9

-6

-3

--

--

-18

Gigabit Ethernet

Single

14 (-6 minus -20)

11 (-9 minus -20)

-9

-6

-3

--

--

-20

Gigabit Ethernet

Single – Long haul

22 (-1 minus -23)

19 (-4 minus -23)

-4

-1

2

--

--

-23

Gigabit Ethernet

Single – Long haul

22 (-1 minus -23)

19 (-4 minus -23)

-4

-1

2

--

--

-23

Gigabit Ethernet

Single – Long haul

25 (2 minus -23)

23 (0 minus -23)

0

2

5

--

--

-23

*For transmitter power, the higher the number the better. The opposite is true for receiver sensitivity, the lower the number the better.

Fiber Cable Parameters (typical)

Cable Size

(core/cladding)

(µm)

Mode

Wave length

(nm)

Connector Losses

(db per connection)

Splice Losses

(db per splice)

Distance Losses

(dB per km)

Multimode Modal Dispersion

(MHz x km)

Singlemode Dispersion (ps / nm x km)

62.5/125

Multi

850

1

0.2

3.3

300

--

50/125

Multi

850

1

0.2

2.7

700

--

62.5/125

Multi

1310

1

0.2

1

500

--

50/125

Multi

1310

1

0.2

0.8

800

--

9/125

Single

1310

1

0.2

0.5

--

3.5

9/125

Single

1550

1

0.2

0.25

--

19

8/125

Single

1550

1

0.2

0.2

--

19

Note: The parameters listed in this table are guideline numbers only. Refer to your cable specifications for more accurate values.

Calculating Fiber Optic Distances

There are two primary ways to calculate how far you can go with your fiber optic links. To be safe, you should go by the shortest result from the two methods, if you use both such as you can with Multimode fiber. Also, you should design for up to a 25% safety margin to be conservative and allow for degradation of the signal and cable over time.

Method 1: Modal Dispersion for Multimode Links Only

Maximum Distance = Modal Dispersion / Signal Rate

Speed

Mode

Wave length

(nm)

Cable Diameter (µm)

Modal Dispersion

Signal Rate

(MHz)

Max. Distance Based on

Modal Dispersion

Fast Ethernet

Multi

850

62.5/125

300

125

2.5 km

Fast Ethernet

Multi

850

50/125

700

125

5.6 km

Fast Ethernet

Multi

1310

62.5/125

500

125

4 km

Fast Ethernet

Multi

1310

50/125

800

125

6.4 km

Gigabit Ethernet

Multi

850

62.5/125

300

1250

240 m

Gigabit Ethernet

Multi

850

50/125

700

1250

560 m

Gigabit Ethernet

Multi

1310

62.5/125

500

1250

400 m

Gigabit Ethernet

Multi

1310

50/125

800

1250

640 m



Method 2: Based on Optical Budget

Power Budget = Transmitter Power - Receiver Sensitivity Spare Optical Budget = Power Budget - Power Losses (splices and connectors) Maximum Distance = Spare Optical Budget / Distance Losses

Speed

Mode

Cable Size

(µm)

Wave length

Power Budget

(Worst Case) (dB)

Typical Losses*

(dB)

Spare Power

(dB)

Distance Losses (dB)

Max.

Distance

Fast Ethernet

Multi

62.5/125

1310

10

6

1

1

4 km

Fast Ethernet

Multi

50/125

1310

10

6

0.8

0.8

5 km

Fast Ethernet

Single

9/125

1310

16

6

0.5

0.5

20 km

Fast Ethernet

Long haul

9/125

1310

29

6

0.5

0.5

46 km

Gigabit Ethernet

Multi

62.5/125

850

9

6

3.3

3.3

0.9 km

Gigabit Ethernet

Multi

50/125

850

9

6

2.7

2.7

1.1 km

Gigabit Ethernet

Single

9/125

1310

11

6

0.5

0.5

10 km

Gigabit Ethernet

Long haul

9/125

1310

19

6

0.5

0.5

26 km

Gigabit Ethernet

Long haul

9/125

1310

19

6

0.25

0.25

52 km

Gigabit Ethernet

Long haul

9/125

1310

23

6

0.2

0.2

85 km

* Typical losses include 2 dB (two connectors), 3dB (safety margin) and 0.4 (two splices) = 6dB (rounded up)

 Example

An industrial user has a series of Ethernet devices operational at Location A. They are building a new facility 8km away. At this distance they are certainly going to have to plan on using single mode fiber. They want to transmit (or plan to transmit) at Gigabit speeds. The SM fiber that they have decided to use attenuates at a rate of .3dB/km. There will be 3 splices along the route and then connectors at each end.


Cable attenuation = 8km x .3dB/km = 2.4dB

Splice loss = 3 splices x .2dB/splice = .6dB

Connector loss = 2 connectors x 1dB/connector = 2dB


Total loss along physical link = 5dB

Safety factor of 25% = 1.25dB

Total loss budget = 6.25dB


Looking at the Gigabit fiber transceiver performance specifications, we can see that the single mode Gigabit fiber transceiver has a worst-case power budget of 11dB so this should work satisfactorily in this proposed fiber link.

Fiber Optic Maximum Distance Summary

Speed

Mode

Cable Size

(µm)

Wave Length

(nm)

IEEE Recommended Distance

Max. Distance Based on Power Budget*

Max. Distance Based on Modal Dispersion*

Fast Ethernet

Multi

62.5/125

1310

2 km

4 km

4 km

Fast Ethernet

Multi

50/125

1310

2 km

5 km

6.4 km

Fast Ethernet

Single

9/125

1310

15 km

20 km

--

Fast Ethernet

Long haul

9/125

1310

--

46 km

--

Gigabit Ethernet

Multi

62.5/125

850

220 m

0.9 km

240 m

Gigabit Ethernet

Multi

50/125

850

550 m

1.1 km

560 m

Gigabit Ethernet

Single

9/125

1310

5 km

10 km

--

Gigabit Ethernet

Long haul

9/125

1310

--

26 km

--

Gigabit Ethernet

Long haul

9/125

1310

--

52 km

--

Gigabit Ethernet

Long haul

9/125

1310

70 km

85 km

--

 * The maximum distance numbers are guidelines only. They are highly dependent on your cable and transceiver specifications.

Troubleshooting an End-to-End Fiber Connection

To troubleshoot an end-to-end fiber connection, do the following:

  1. Make sure that all of your connectors are clean. Even a little bit of dust, dirt or grease on a connector face can significantly degrade a fiber signal. This includes the main fiber optic link as well as any patch cables that you may be using. When cleaning, it is important to use lint-free swabs or wipes, preferably of a clean room quality. These can be used dry or wet (with 99% isopropyl alcohol solutions).
    • Make certain that you are not cleaning an active fiber, as the laser can cause permanent damage to your eyes should you look into the end face.
    • Additionally, it is not necessary to scrub the end face, rather to just gently wipe it clean and then double-check the link. If additional cleaning is required simply repeat this process.
  2. Ensure that the cable type you are using matches the transceiver type. That is, Multimode cable requires Multimode transceivers, and Singlemode cable requires Singlemode transceivers.
  3. Ensure that the patch cords you are using match the fiber link cable. Again, Multimode needs to be used with Multimode, and Singlemode needs to be used with Singlemode. Additionally, it is important that 62.5um is used with 62.5um and 50um used with 50um. If the fiber cores are not aligned correctly significant attenuation will occur.
  4. Make sure that all connectors are plugged completely into their proper ports. Again, if end faces are not lined up correctly with transceivers and/or mated fiber ends, the system may fail due to excess attenuation.
  5. Make sure that the transmit cable at the near end is the receive cable at the far end. There needs to be a crossover for a fiber link to work correctly. Be sure to factor in all patch cords that may be used.

Frequently Asked Questions

Q: I see no link activity on the fiber transceiver(s).

A: Please see Section 4 above.

Q: Can I connect a device with an SC or ST connector on one end to a device that has an LC connector on the other end?

A: Yes, order a fiber optic cables with different connector types (SC, ST or LC) on each end.

Q: Does Red Lion sell fiber optic cable?

A: Yes, multi-mode and single-mode duplex fiber optic patch cables with SC, ST and/or LC terminations at various lengths. Please refer to our product listings for more information.

Q: I have tried all the steps in Section 4, but they still have only intermittent or no communications on the link. Is there anything else I can do?

A: Please send a complete description of the problem, model number, and the date code/serial number of the unit to [email protected] to be issued an RMA number for the evaluation and repair of the unit.

Disclaimer

It is the customer's responsibility to review the advice provided herein and its applicability to the system. Red Lion makes no representation about specific knowledge of the customer's system or the specific performance of the system. Red Lion is not responsible for any damage to equipment or connected systems. The use of this document is at your own risk. Red Lion standard product warranty applies.
