This document describes using the Crimson® Mitsubishi Q Series TCP/IP Master driver to
communicate with Mitsubishi Programmable Logic Controllers (PLCs) via an Ethernet connection.
Red Lion CR1000 Human Machine Interface (HMI), CR3000 HMI, G3 HMI, G3 Kadet HMI,
Graphite® HMI, Graphite Controller, Modular Controller, Data Station Plus (DSP), and ProducTVity Station™ (PTV)
This document describes the settings required to use the Mitsubishi Q Series TCP/IP Master driver to communicate with Mitsubishi FX, L, and Q series PLCs.
Crimson 2.0, 3.0, or 3.1
Crimson 2.0, build 126 or higher
Crimson 3, all builds
This document describes how to use the Crimson Mitsubishi Q Series TCP/IP Master driver to communicate with Mitsubishi FX, L, and Q series PLCs. Crimson and the desired PLC must be correctly configured before communications can be established. Refer to the next section for Crimson configuration instructions. Refer to “Configuring the Device” on page 4 for PLC-specific configuration instructions.
Crimson configuration consists of configuring the Ethernet port and selecting the driver.

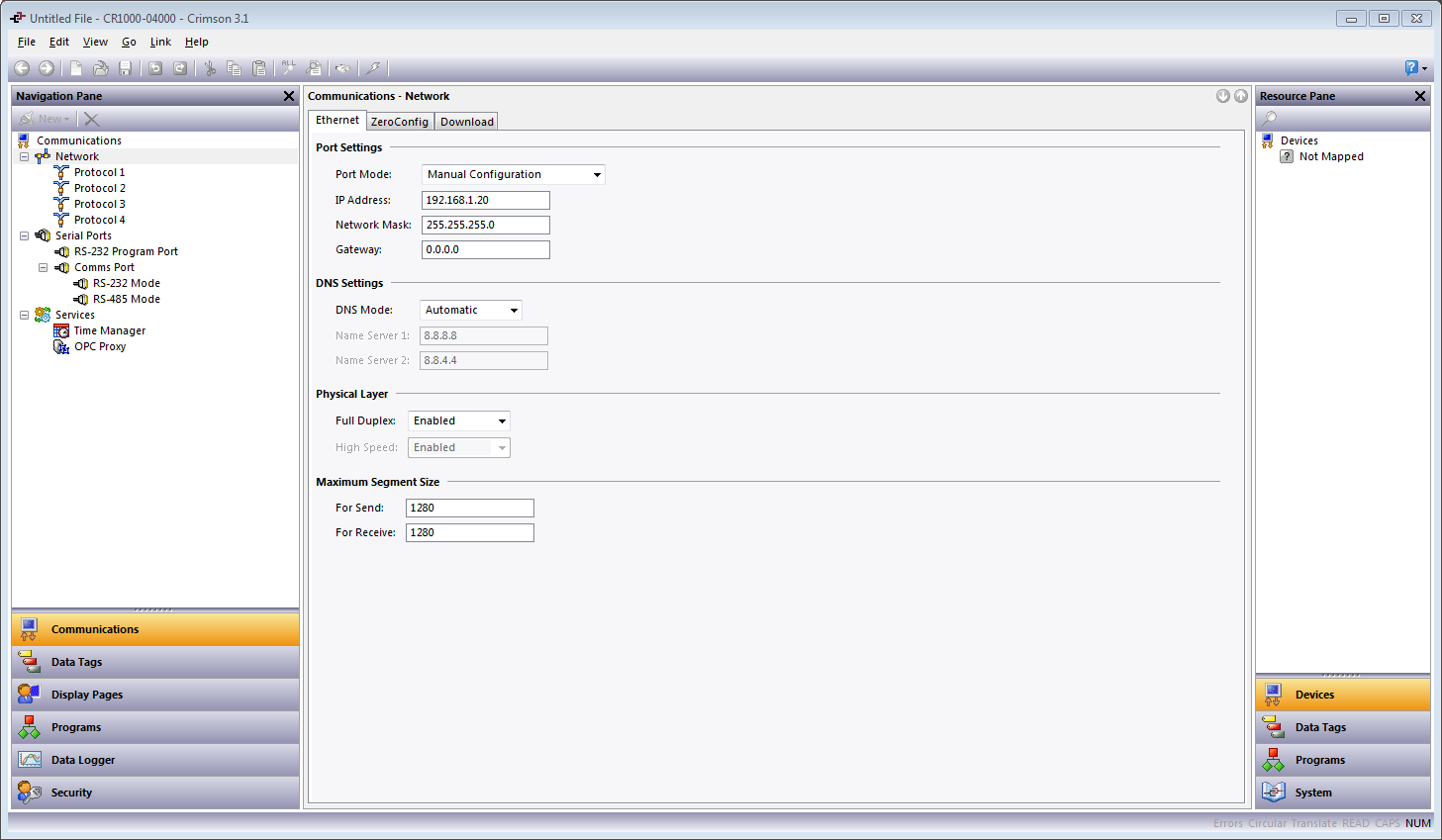

1. Referring to Figure 1, go to the Navigation Pane and Navigate to the Communications section.
2. Click on Network; the Communications - Network popup appears.
3. Click on the Ethernet tab.
4. Configure the port, as required.
Figure 1.

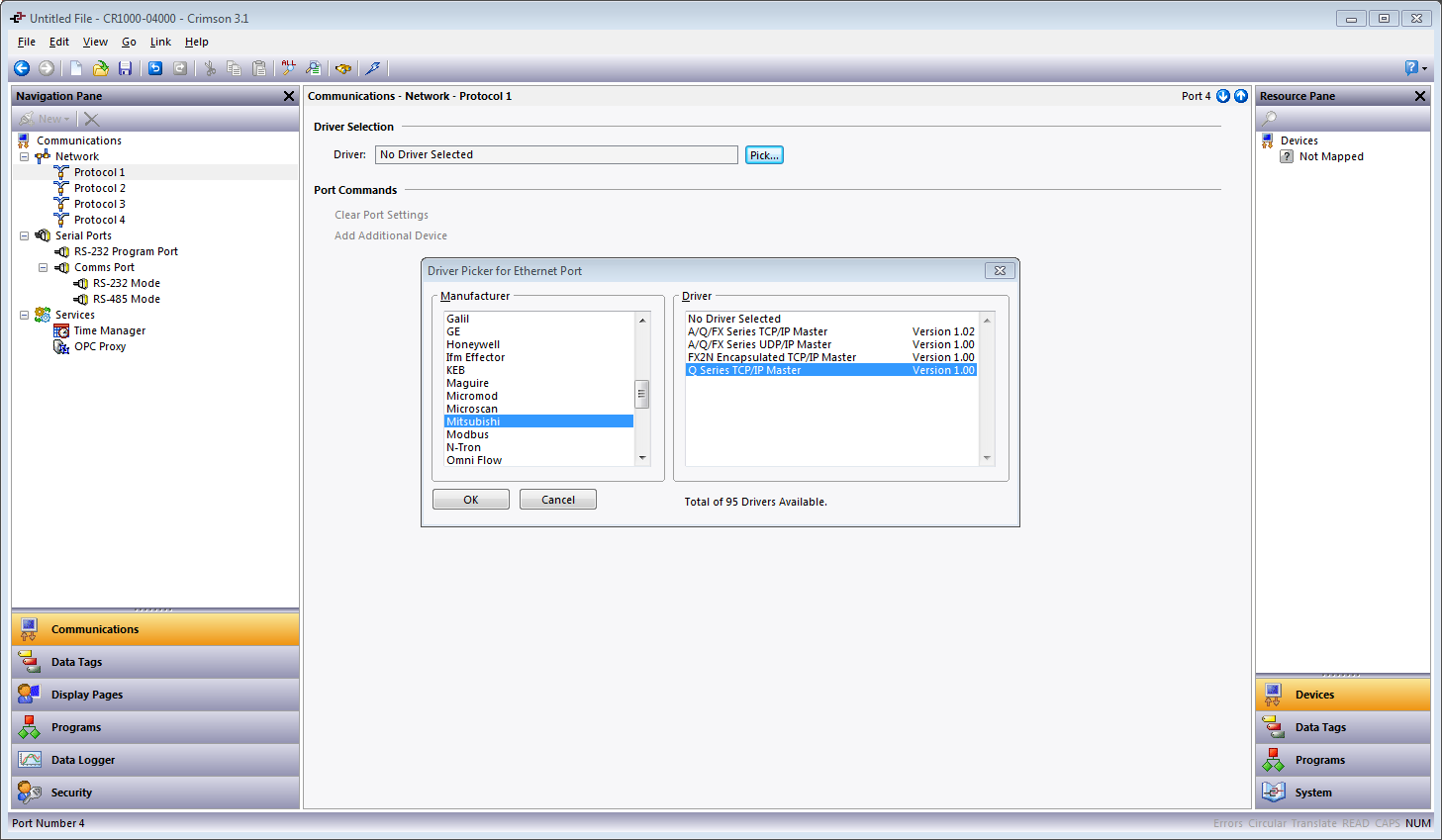

1. Referring to Figure 2, go to the Navigation Pane and select the first available protocol; Protocol 1 in this example.
2. Go to the Driver: field under the Driver Selection heading and click the Pick… button; the Driver Picker for Ethernet Port popup appears.
3. Under the Manufacturer heading, select Mitsubishi.
4. Under the Driver heading, select Q Series TCP/IP Master.
5. Click OK.
Figure 2.
The following two steps apply to all three Mitsubishi PLCs covered in this Tech Note.

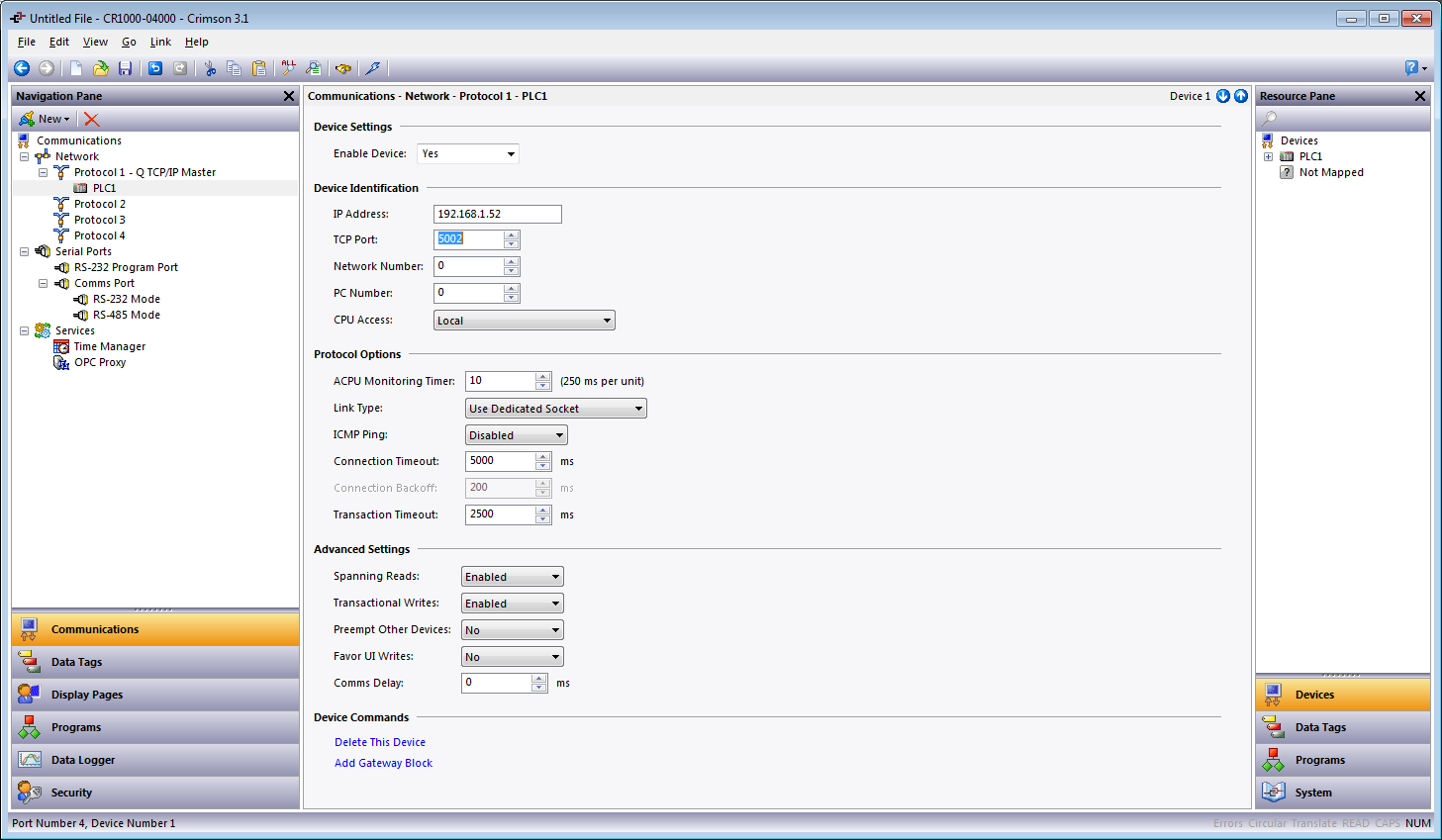

1. Referring to Figure 3, go to the Navigation Pane and click on the device that appeared below Protocol 1; PLC1 in this example.
2. Configure the Device Identification heading fields, as required:
a. IP Address: The IP Address of the PLC or communication card; 192.168.1.52 in this example.
b. TCP Port: The TCP port from which the PLC or communication card is listening; 5002 in this example.
NOTE: Crimson’s number is DECIMAL; the Mitsubishi PLC may be DECIMAL or HEX.
c. Network Number: The network on which the PLC resides; 0 in this example.
NOTE: For most local on-board CPU communications, use 0.
d. PC Number: The station number of the remote station; 0 in this example.
NOTE: For most local on-board CPU communications, use 255.
e. CPU Access: Specifies which CPU will be accessed; Local in this example.
Figure 3.
Refer to the Crimson Quick Start Guide for Data Tag, Display Page, and Data Logging configuration.
NOTE: After changing the PLC communications, power MUST be cycled in order for the changes to take effect.
If configuring a Mitsubishi FX Series PLC, proceed to the next section. If configuring a Mitsubishi L or Q Series PLC, proceed to “Mitsubishi Q/L Series PLC Configuration” section.
The following steps apply to Mitsubishi FX PLC configuration, only:

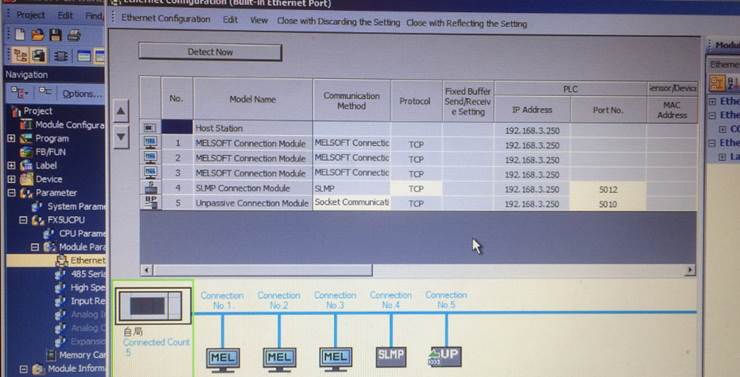

1. Open the PLC’s Ethernet Configuration window, as shown in Figure 4.
2. Configure the PLC’s Ethernet connection using the following parameters:
a. Communication Method: SLMP
b. Protocol: TCP
c. Port No.: Should match the port number previously specified during Crimson configuration.
Figure 4
Figure 4b.

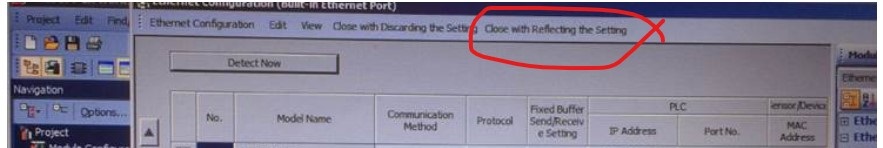

3. Note: For changes to take effect, you need to click “Close with Reflecting the Setting" at the top.
4. Click on “Apply”.
The following instructions apply to both Mitsubishi Q and L Series PLC configuration:

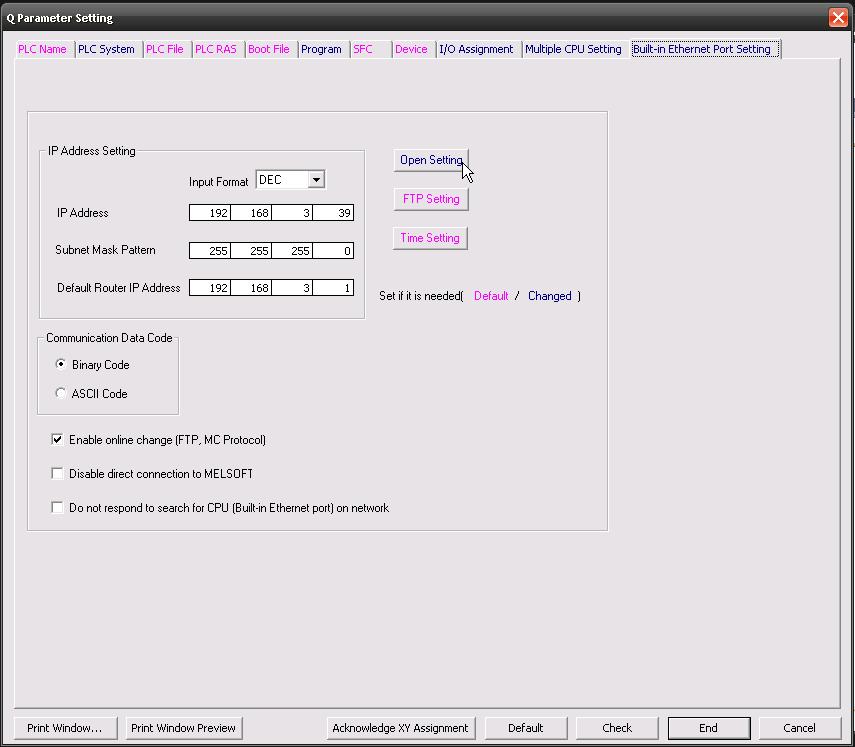

1. Open the PLC’s Ethernet configuration window, as shown in Figure 5.
2. Ensure that Communication Data Code is set for Binary Code.
3. Ensure that Enable online change (FTP, MC Protocol) is checked.
Figure 5.
4. Click the Open Setting button.

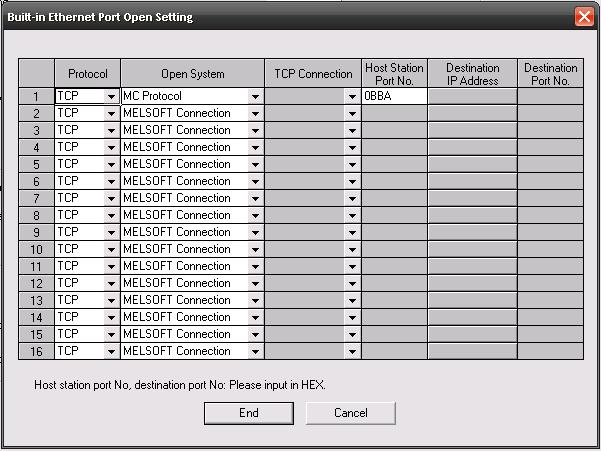

5. Referring to Figure 6, configure a connection with the following parameters:
a. Protocol: TCP
b. Open System: MC Protocol
c. Host Station Port No.: Should match the port number previously specified during Crimson configuration.
Figure 6.
d. Click the End button.
