Updating Crimson 3.2 Firmware on FlexEdge (DA50A and DA70A) Devices

06 Jun 2025

Abstract

This document provides information about important items  to consider when updating firmware on a FlexEdge Device.

Products

FlexEdge DA50A and DA70A

Details

FlexEdge DA50A and  DA70A units running firmware 3.2.0050.0 or earlier must first update to Crimson 3.2.0050.0 prior to updating to the latest Crimson release. Failure to observe this requirement may render the device inoperable, requiring it to be sent back to Red Lion to be restored.

  • For any units with a serial number that contains a date prior to October 1st, 2022, as indicated by digits 3-9, (for example: YU01OCT22xxxxx), customers must update to Crimson 3.2.0050.0 first before moving to the latest 3.2 release.
  • Crimson 3.2.0050.0 can be downloaded here.

The latest release of Crimson 3.2  is can be found here.

Complete details can be found in the User Manual:
Crimson 3.2 Software Guide English (LP1153C) 19MB.pdf (redlion.net)

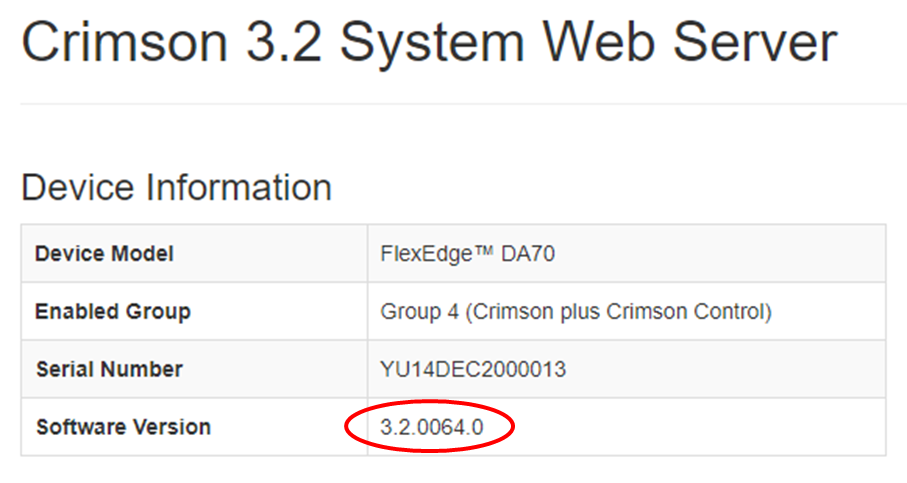

Verify Current  Crimson Version

  • Use a browser to login to the System Web Server
  • Click on System at the top right of the screen

  • Verify current Software Version

Updating Crimson 3.2 devices

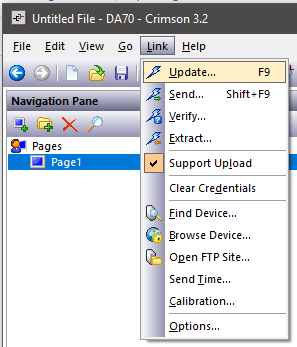

Crimson database files (.cd32) are downloaded to the target devices by means of the Link menu.

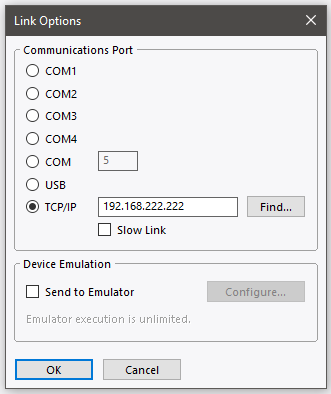

  • First click Link>Options and select your update method,

  • Then click on Link>Update.



The programming link between the PC and the target device can be made using:

  • Ethernet TCP/IP
  • USB Type B port
  • RS-232 RJ12 port

Complete details can be found in the User Manual:
Crimson 3.2 Software Guide English (LP1153C) 19MB.pdf (redlion.net)



Disclaimer

It is the customer's responsibility to review the advice provided herein and its applicability to the system. Red Lion makes no representation about specific knowledge of the customer's system or the specific performance of the system. Red Lion is not responsible for any damage to equipment or connected systems. The use of this document is at your own risk. Red Lion standard product warranty applies.

Red Lion Technical Support

If you have any questions or trouble contact Red Lion Technical Support by clicking here or calling 1-877-432-9908.

For more information: http://www.redlion.net/support/policies-statements/warranty-statement
