E3 I/O Module Spare Parts

E3 Replacement Terminal Blocks

 # of Pins PT #

Description
4 KPTV0041

RS485 terminal
6 KPTV0061

Power Input Terminal
17 KPTV0171

I/O Terminal for E3-MIX24880, E3-MIX24882, E3-32DI24, E3-32DO24, E3-32AI20M, E3-32AI10V, E3-16DI24, E3-16DIAC, E3-16DO24, E3-8AO20M, E3-16AI20M, E3-16AI8AO, E3-16ISOTC, 16ISO20M, E3-10RTD
18 KPTV0181

E3-MIX20884

E3 Replacement Feet

See page 2-21 of E3 hardware user manual.

QTY per E3 PT #

Description
2 KHM04404

Phillips screw for Din-rail\panel mount feet
2 KME3FT01

Din-rail\panel mount feet

E3 Replacement Din-rail clip

QTY per E3 PT #

Description
1 KME3CLP1

Din-rail clip
1 KHXSPRG1

Din-rail clip spring.

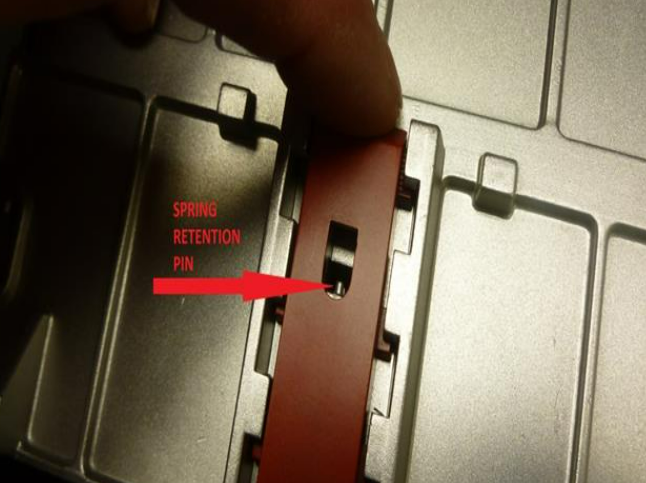

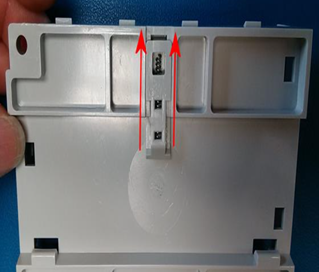

  1. Slide a Din rail clip (KME3CLP1) into the base as shown. You should be able to see the spring retention clip.

    1. 1.PNG

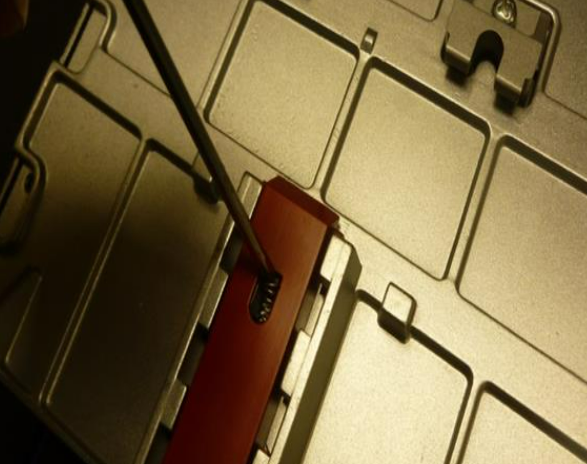

  2. Place one end of the spring (KHXSPRG1) over the retention pin and compress the other end under the clip with a small flat head screw driver

    1. 2.PNG

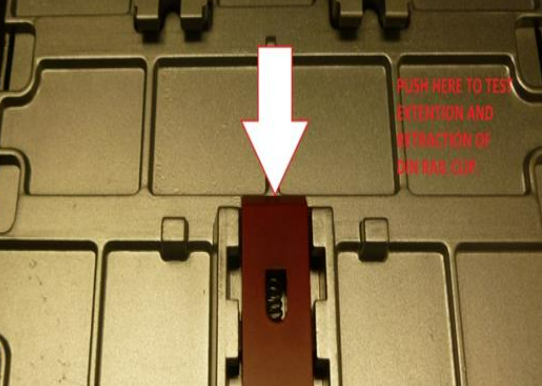

  3. The din rail clip should extend and retract when pushed downward

    1. 3.PNG



SixTRAK Spare Parts

Products:

ST-IPm-8460/ST-IPm-x350/VT-IPm-x410/ST-GT-1210/ET-GT-ST-3

Replacement Part Number

Description

KHXSTIOS

Din Clip Spring

KMSIX000

Plastic Din Clip

KDIPMST8

Main decal on front of ST-IPm-8460
KPTV0173

Vertical screw terminal with 17 positions and locking screws for ST-IPm-8460.
KHX425PH

Case screw with lock washer for ST-IPm-8460, ST-IPm-6350, ST-IPm-x350, VT-IPm-x410, ST-GT-1210, ET-GT-ST-3
D-IPM-ST-1

Main Decal for the ST-IPm-6350
KPTC0170

Vertical Screw Terminal with 17 positions and no locking screws for ST-IPm-x350 and VT-IPm-x410
  1. Enter spring into Din Clip
  2. Slide clip into plastic.



VersaTRAK Spare Parts

Products:

VT-mIPm-138-D/VT-mIPm-248-D/VT-mIPm-245-D/VT-mIPm-135-D/VT-IPm2m-213-D/VT-IPm2m-113-D/VT-uIPm-431-H



Replacement Part Number

Description

VT-IPM2M-113-DB

Replacement BASE for VT-IPM2M-113

VT-IPM2M-113-M

Module ONLY VT-IPM2M-113

VT-IPM2M-213-DB

Replacement BASE for VT-IPM2M-213

VT-IPM2M-213-M

Module ONLY VT-IPm2m-213

VT-MIPM-135-DB

Replacement BASE for VT-MIPM-131

VT-MIPM-135-M

Module ONLY VT-MIPM-131 with IPM-CPU-5

VT-MIPM-245-DB

Replacement BASE for VT-mIPm-245-D

VT-MIPM-245-M

Module ONLY VT-MIPM-245 with IPM-CPU-5

VT-UIPM-431-HB

Replacement BASE for VT-UIPM-431

VT-UIPM-431-M

Module ONLY VT-UIPM-431 with IPM-CPU-1

KHXSTIOS

Din Clip spring

KMSTCLP2

Din rail plastic clip

KDMPM241

VT-mIPm-245-D front label

KDMPM248

VT-mIPm-248-D front label
KDMPM138

VT-mIPm-138-D front label

How to change the front label

  1. Remove the VT RTU module from the base by pressing in on both sides.

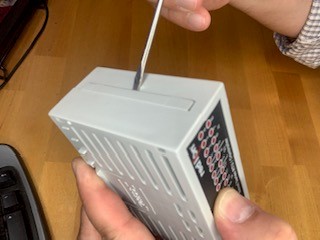

  2. Slide a small flathead screw driver on one side of the module to release the plastic latches.
    1. 7.jpg

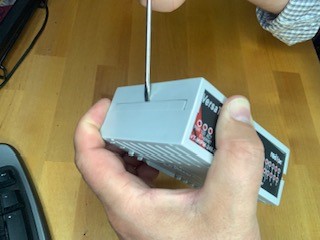

  3. While holding the side open. Slide a small flathead screw driver in the side slot on the other side. Remove the top half of the module.
    1. 6.jpg

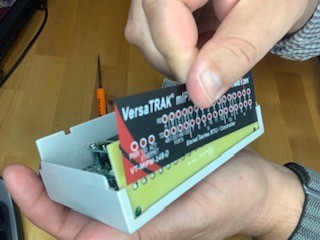

  4. Slide out the existing label and slide in the new label.
    1. 5.jpg
  5. Replace the top half and press down until it snaps into the please.

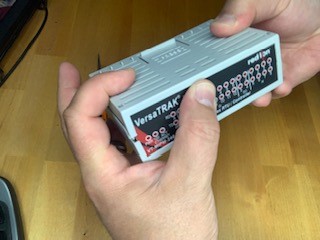

    1. 2.jpg

How to replace a VersaTRAK IPm Module or Base

Replacement Module

    1. VersaTRAK IPm bases contain the IP address and serial number configuration but not the program, I/O Transfers, etc.
    2. Replace the module by removing power. Then remove the module from the base. Plug in the replacement module.
    3. Load the configuration and program from the Sixnet I/O Tool Kit configuration software via Ethernet or serial.

Replacement Base

    1. The base component holds the communication serial number and communication parameters. When replacing the base update the Sixnet I/O Tool Kit configuration with the new serial number and reload via serial.
    2. Remove power. Unwire the old base and re-wire the replacement base.
    3. Load basic configuration via Port B using the included RJ45-DB9F-IPm and a straight-thru Ethernet cable.

EtherTRAK-2 Spare Parts

Products

E2-MIX24880-D/E2-MIX24882-D/E2-MIX20884-D/E2-8AO20M-D/E2-32AI20M-D/E2-32AI10V-D/E2-32DI24-D/E2-32DO24-D/E2-16AI20M-D/E2-16AI-8AO-D/E2-16DI24-D/E2-16DIAC-D/E2-16DO24-D/E2-16DORLY-D/E2-16ISO20M-D/E2-16ISOTC-D/E2-10RTD-D

Replacement Part Number

Description

E2-10RTD-M

Module only

E2-16DORLY-M

Module only

E2-16ISO20M-M

Module only

E2-16ISOTC-M

Module only

E2-8AO20M-M

Module only

E2-32DI24-M

Module only

E2-BASE-1

Replacement base for all E2 module except E2-MIX20884-D/E2-16ISO20M-D/E2-16ISOTC-D.

E2-BASE-TC-1

Replacement base for E2-16ISOTC-D

E2-BASE-20M-1

Replacement base for E2-16ISO20M-D

E2-HLDDN-2

Set of clips (2 per module) help keep the module steady in high vibration environments. Not required for high vibration environments.

RJ45-DB9F-CBL

One pre-wired RJ45-DB9F-IPm and two (one male one female DB9) unwired for user-configured pin-out.
KME2CLP1

Red, short base clip. To secure the base to the din-rail when the I/O Module is mounted parallel to the din-rail.
KME2CLP2

Red, long base clip. To secure base to the din-rail when the I/O Module is mounted perpendicular to the din-rail.
KME2CLP0

Red Module clip to secure module to base. Two per module.
KME2KEY0

Module key; two per module.
KME2KEY1

Base key; two per base.

How to replace a EtherTRAK-2 Module or Base

Replacement Module

      1. The EtherTRAK-2 base stores all the configuration parameters. To replace a module power down the unit, unplug existing module and plug-in new module.
      2. Once powered up the module will be operational again.

Replacement Base

      1. Power down the I/O Module and base. Unwire the base and rewire the new one.
      2. Plug the old module into the replacement base. Load the configuration from the Sixnet I/O Tool Kit via Ethernet.
