Industrial VPN gateway for secure remote access to machines

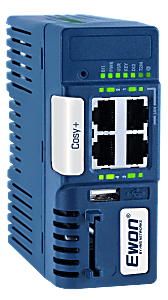

Ewon Cosy+ Ethernet
Item number EC71330_00MA
The Ewon Cosy+ gateway establishes a secure VPN connection between the machine (PLC, HMI, or other devices) and the remote engineer. The connection happens through Talk2m, a highly secured industrial cloud service. The Ewon Cosy+ makes industrial remote access easy and secure like never before!
The Ewon Cosy+ offers multiple connectivity options for successful deployment in any situation.
Maximize machine uptime and productivity
Industrial remote access empowers you to enhance machine uptime and boost operational efficiency.
Easily save time and money
Optimize costs by avoiding unnecessary service trips. Improve engineers well-being and productivity.
State-of-the-art security
Built-in hardware security (Secure Element). ISO 27001 certified, machine LAN segregation, and more.
Easy - No IT skills required
Straightforward setup, to make machines IIoT-ready in minutes. Non-intrusive outbound connections.
Efficient connectivity management
Manage all aspects of your connectivity from one single place (Talk2m industrial cloud service).
Scalable solution that adapts to your needs
The Cosy+ and Talk2m offer excellent scalability - add as many devices and users as you need.
Successful worldwide connectivity
Benefit from Talk2m's reliable global infrastructure, with an extended Service Level Agreement.
Related Software
Talk2m
Talk2m industrial cloud is a reliable and efficient solution for remote connectivity, based on a global and redundant server infrastructure. Thanks to the combination of Talk2m and Ewon gateways, you can remotely access your machines and monitor their performance.
Web-Based configuration: Embedded web interface with setup wizards for configuration and maintenance (no additional software needed). Basic authentication (login/password) and session control for security.
Router Features
IP filtering, IP forwarding, NAT, Port forwarding, Proxy, Routing table, DHCP client/server
VPN
OpenVPN either in SSL UDP or TCP.
VPN Security
Communications between the remote user and the Ewon gateway are fully encrypted using the SSL/TLS protocol, thereby ensuring data authenticity, integrity & confidentiality. All users and Ewon units are authenticated using x509 SSL certificates and end-to-end traffic is encrypted using strong symmetric & asymmetric algorithms that are part of the SSL/TLS protocol cipher suite
CE
Yes
UL
Yes
KC
Yes
RCM
Yes
FCC
Yes
IC
Yes
Environment
Temperature - Operating & Storage tested according to:
IEC 60068-2-1 Cold test
IEC 60068-2-2 Dry heat test
IEC 60068-2-14 Change of temperature
IEC 60068-2-30 Cyclic damp heat test
Vibration and Shock
Vibration & shocks tested according to:
IEC 60068-2-27 Bumps
IEC 60068-2-64 Vibration (broad-band random)
IEC 60068-2-6 Vibration (sinusoidal)
Waste Certification (WEEE)
Yes
WEEE Category
IT and telecommunications equipment
UKCA
Yes
RoHS Compliant
Yes
Connectors / Input / Output
1xDO: open drain ( MOSFET) 200mA; isolation 1.5kV,
Configure the remote access for Mitsubishi PLC
AUG-0043-00
The present document explains in a few steps how to configure your Ewon, your Talk2M account and the PLC software to access the Mitsubishi PLC for remote diagnosis and programming.
AUG-0043-00 - Configure the remote access for Mitsubishi PLC
Configure the remote access for Omron PLC
AUG-0036-00
The present document explains in a few steps how to configure your Ewon, your Talk2M account and the PLC software to access the Omron PLC for remote diagnosis and programming.
AUG-0036-00 - Configure the remote access for Omron PLC
Configure the remote access for Schneider PLC
AUG-0038-00
The present document explains in a few steps how to configure your Ewon, your Talk2M account and the PLC software to access the Schneider PLC for remote diagnosis and programming.
AUG-0038-00 - Configure the remote access for Schneider PLC
Configure the remote access for Siemens PLC through STEP7
AUG-0037-00
The present document explains in a few steps how to configure your Ewon, your Talk2M account and the PLC software to access the Allen-
AUG-0037-00 - Configure the remote access for Siemens PLC through STEP7
Configure the remote access for Siemens PLC through TIA portal
AUG-0047-00
The present document explains in a few steps how to configure your Ewon, your Talk2M account and the PLC software to access the Siemens PLC for remote diagnosis and programming.
AUG-0047-00 - Configure the remote access for Siemens PLC through TIA portal
Configure the remote access for Allen-Bradley PLC
AUG-0035-00
A how-to to configure your Ewon, your Talk2M account and the PLC software to access the Allen-Bradley PLC for remote diagnosis and programming.
AUG-0035-00 - Configure the remote access for Allen-Bradley PLC
Manage device access with a Talk2M PRO account
AUG-0086-00
This document explains how to configure correctly access to remote devices based on user groups and Ewon pools in a Talk2M PRO account.
AUG-0086-00 - Manage device access with a Talk2M PRO account
Connect an Ewon gateway to Talk2M
AUG-0089-00
The present document explains how to configure your Ewon gateway so it can connect to the Ewon Cloud Services, called Talk2M
Configure the remote access for Schneider PLC M285-based model
AUG-0054-00
The present document explains in a few steps how to configure your Ewon, your Talk2M account and the PLC software to access the Schneider PLC for remote diagnosis and programming.
AUG-0054-00 - Configure the remote access for Schneider PLC M285-based model
PLC discovery through Talk2m
AUG-0070-00
How to configure the Ewon and the Ecatcher software to discover the PLC(s) available on a distant network that you are connected to through
the Talk2m connection.
CB TEST CERTIFICATE
This document reports the IEC System for mutual recognition of test certificates for electrical equipment (IECEE) CB scheme (DK-144776-A1-UL).
List of Ewon Model Numbers
The model number identifies a unique hardware configuration. The table below shows the relationship between the model number, the product name and the part number.
A - List of Ewon Models - Link between Ewon Model Numbers and Part Numbers
Cosy+IG-0031-00This document describes the hardware of the Ewon Cosy+ which is an industrial gateway / router fully compatible with the Talk2m cloud connectivity services.
