Fiber Optic backbones have been used effectively in industrial Ethernet systems requiring high-speed communications with excellent noise characteristics. Since the fiber optic cable is impervious to electric and magnetic fields, all conventional electrically generated cross talk and interference is eliminated.
In the event that great distances (over 100m) separate nodes, fiber optic backbones can realize

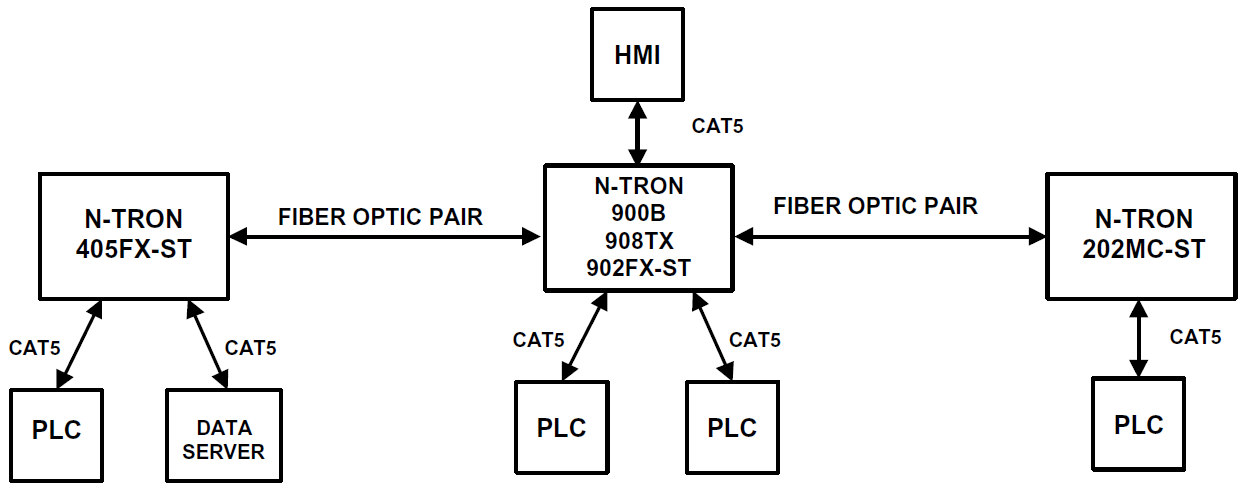

very cost effective Ethernet systems. A diagram of an N-TRON fiber optic backbone implementation is shown in Figure 1.
Figure 1.
However, the classic fiber-optic backbone has several limitations:
To remove the limitation of media failure, Ethernet switches have been used effectively in ring
topology installations where long fiber distances and low bandwidth were requirements. When the switches are to be located so far apart that it becomes cost prohibitive to make a “home run” for each switch, ring topology offers a definite cost saving alternative.
In addition, industrial ring topology offers media redundancy. In the event that the fiber link is
broken, the redundancy manager heals the ring by re-directing traffic. For industrial applications,
the traditional spanning tree algorithm is much to slow to use in control and high-speed data
acquisition applications. This has led to the development of the “higher speed” protocols now
being used by prominent leaders in the industrial network arena. Healing speeds of less than
300ms are achievable. A diagram of an N-TRON Fiber-Optic ring implementation is shown in
Figure 2.
Figure 2.
The Industrial Ring Topology still has several shortcomings:
To build a fault tolerant network (no single point of failure) requires two rings. The redundancy
manager is operating with a standby master and standby slave to shadow its operation and step in and direct traffic in the event of a redundancy manager failure.

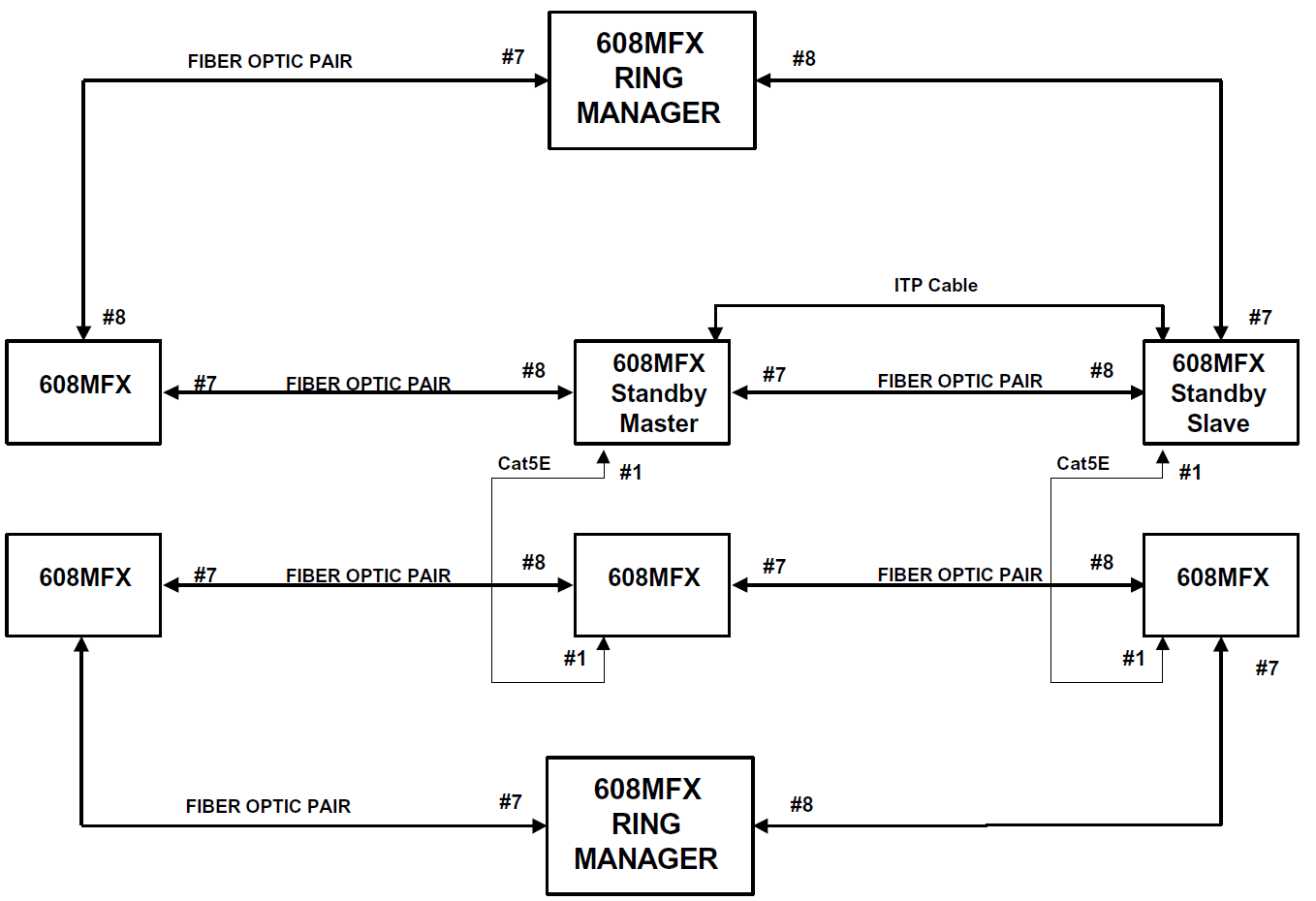

This also requires that dual Ethernet ports be installed in the PC’s, and PLC’s to fully utilize the fault tolerance features (still higher costs). This topology is shown implemented with N-TRON Products in Figure 3.
Drawbacks of the Redundant Ring Topology include:
The 100Mbit limitation can become quite severe when users start considering the addition of
security cameras and vision systems to their control networks.
Figure 3.

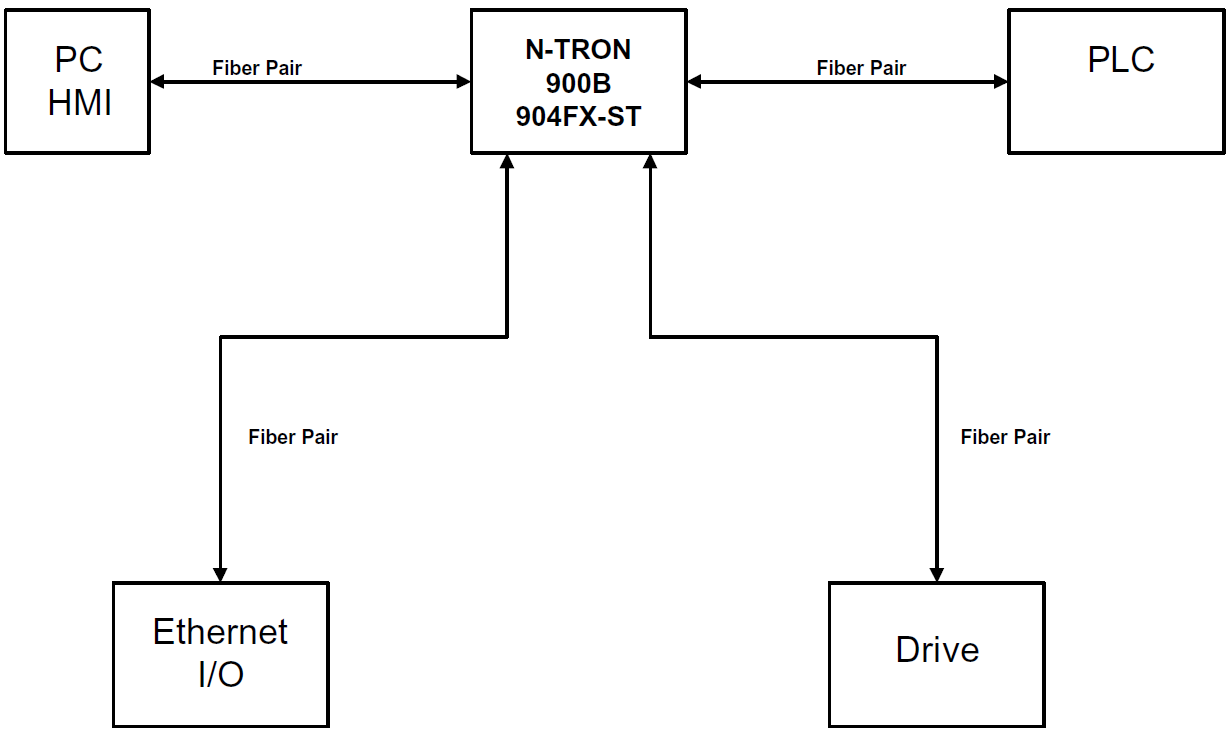

Star topology networks have been used effectively in data acquisition and control systems. Because the MTBF of a high-quality industrial switch is in excess of 2M hours, the likelihood of a switch failure or media failure is indeed remote. All N-TRON switches offer dual power supply inputs to eliminate the possibility of a single power supply failure bringing the network down.
Star topology also allows for the utilization of lower cost layer 2 switches and an order of magnitude speed improvement over Ring Topology. N-TRON 900 Series switches utilize a 2.6Gb/s backplane that is over 260 times faster than the 100Mb/s Ring.
Star topology can easily be implemented with fiber or copper, or a combination of both. The network is also simpler to maintain and troubleshoot, and it is far more open and adheres to 802.3 standards (thus allowing plug and play multi-vendor interoperability). This topology is shown implemented with N-TRON products in Figure 4.
Figure 4.
Limitations of the Star Topology include:
To build a fault-tolerant star network (no single point of failure) requires dual Ethernet ports be installed in the PC’s, and PLC’s. Every node would have a “home run” back to dual central high-density switches. As long as the fiber distances are under 2km in distances, this topology is superior in cost performance and reliability when compared to ring.

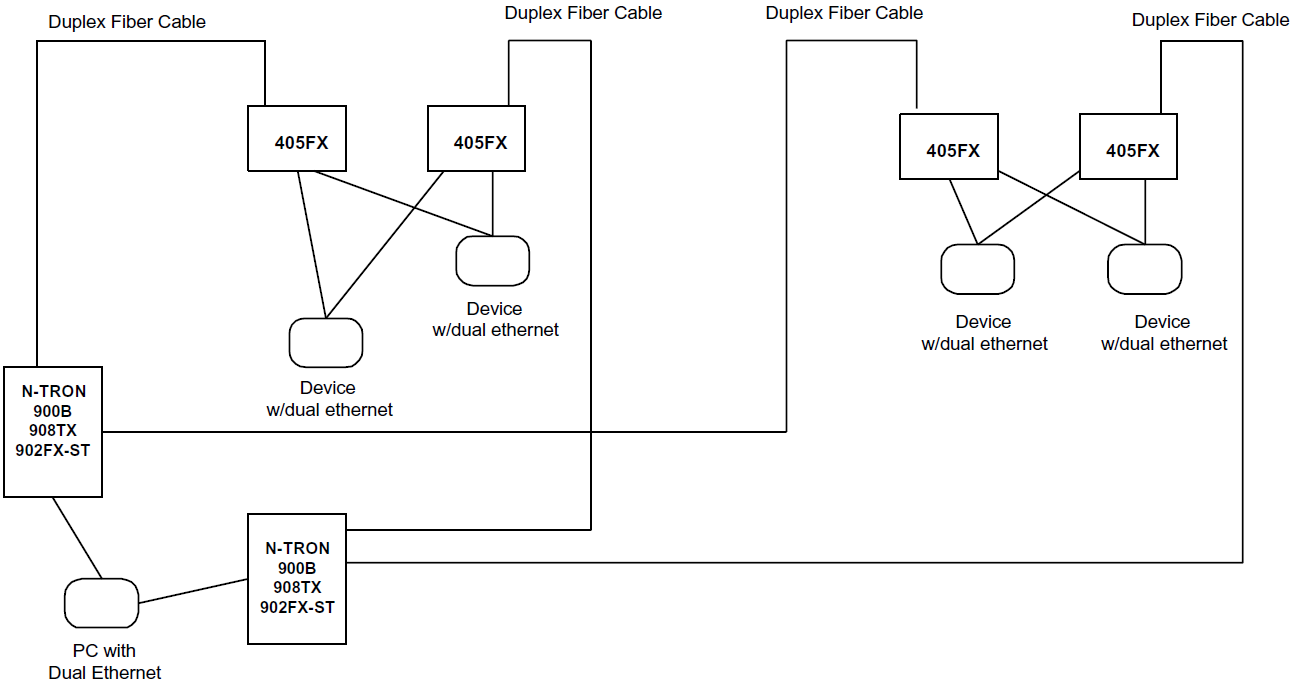

This topology is shown implemented with N-TRON products in Figure 5.
Figure 5.
In most instances, a redundant star with redundant Ethernet devices can be implemented at a lower cost point than redundant ring topology. This, coupled with an order of magnitude higher
bandwidth, makes it a technically superior (and more open) approach for most industrial networks. The exception is when the fiber optic runs become very long (> 2km) and the cost of the fiber (typically $1-2 per foot) is more expensive than the switches.
It is the customer's responsibility to review the advice provided herein and its applicability to the system. Red Lion makes no representation about specific knowledge of the customer's system or the specific performance of the system. Red Lion is not responsible for any damage to equipment or connected systems. The use of this document is at your own risk. Red Lion standard product warranty applies.
If you have any questions or trouble contact Red Lion Technical Support by clicking here or calling 1-877-432-9908.
