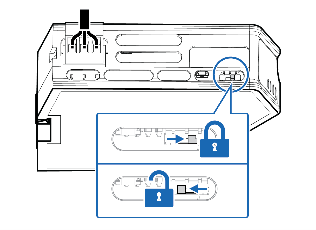

ABC3007-A, Anybus Communicator – Serial Master to EtherNet/IP adapterABC3007-AThe Anybus Communicator Serial Master to EtherNet/IP enables you to connect any RS-232/485 device or equipment to EtherNet/IP control systems., Anybus Communicators ensure reliable, secure, and high-speed data transfers between different industrial networks., Thanks to our intuitive web-based user interface, they're also incredibly easy to use.Intuitive user interfaceCybersecurityHigh performanceOptimized hardware designUse the intuitive web-based user interface to easily configure the Communicator via the drag-and-drop functionality or to analyze live data, export log files, and generate support packages.The secure boot protects against malware, while a security switch locks configurations to prevent unauthorized changes., Ports used in production are disabled to add another layer of security.Powered by the award-winning NP40 network processor and high-end components, the Communicator meets the constantly growing demand for more data to be transferred faster.The Communicator has forward-facing ports and is designed for IP20 and DIN-rail mounting, enabling you to install it with ease, close to connected devices, thereby reducing wiring requirements.ethernetip;modbusrtu;serial, ab0afe683b6442e380bc7f7ba77b9ce9, Anybus, Anybus Communicator – Serial Master to EtherNet/IP adapter
ChangeLog - ABC3007 ABC3007 - 1.12.01 Ethernet/IP v1.7 - ODVA CT19 conform Category Description Comment Bug fix Incorrect LED timing., swap / endian conversion ABC3007 - 1.09.01 Category Description Comment ChangeLog - ABC3007 2 HMS Industrial Networks Bug fix RS485 driver remains active up to 1 character after end of frame RS485 driver remains active up to 1 character after end of frame, causing collision if a modbus slave device responds quicker than the specified 3.5 characters delay required by the modbus specification Bug fix Hostname change require powercycle on cfg port with SHICP The Hostname settings were not applied correctly when modified using HMS Ipconfig Bug fix DNS1 and DNS2 address was always 0.0.0.0 after power cycle Improveme nt EDS catalog was always ABC3007, but is used for other article numbers as well Catalog name in Studio 5000 changed to ABCxxxx when using new EDS file ABC3007 - 1.08.01 Support hardware without unused security chip ABC3007 - 1.07.01 EDS file is now inside a zip file ABC3007 - 1.06.02 Minor bugfix in configuration file version handling Category Description, on customer specific order codes ABC3007 - 1.05.01 Category Description Comment Bug fix Turnaround delay could not be set to 0 Turnaround delay could not be set to 0 (disabled), it is now possible ABC3007 - 1.04.01 Modbus RTU Master - Ethernet/IP - Full Anybus Communicator replacement Category Description Comment Bug fix Various web bug fixes Various bug fixes in the user interface ChangeLog - ABC3007 4 HMS Industrial Networks New feature Unlocked article ABC3090 support added Allows the user to use SER-Ethernet/IP, S E R - P ROFINET, SER-Modbus TCP Firmware i ABC3090 New feature General data area Allows the user to store data in a general data area without mapping to slave network for, ex., the user to enable/disable serial nodes using a register from the slave network New feature Broadcast node Allows the user to configure node 0 as a broadcast node New feature Added ADD and XOR checksums Allows the user to use ADD and XOR checksums and one’s and two’s complement on all checksums types New feature Acknowledge and negative acknowledge Allows the user to map a positive feedback acknowledge to a value and a separate negative acknowledge feedback to a value ABC3007 - 1.03.02 New build with updated Ethernet/IP stack ABC3007 - 1.03.01 Category Description Comment New feature Touch algorithm for class 3 control EIP Class 3 connection can act as controlling connection ChangeLog - ABC3007 2023-03-03 5 HMS Industrial Networks New feature Changed minimum update time for serial transactions to 3 ms Allows the user to set minimum update time for serial transactions to 3 ms instead of 10ms ABC3007 - 1.02.01 Category Description Comment Bug fix The serial, New feature Configurable byte swap / endian conversion Allows the user to use different byte orders on serial network and the slave network New feature Update mode "Cyclic" Allows the user to set up a transaction to be executed cyclically ABC3007 - 1.00.01 Modbus RTU Master - Ethernet/IP - MVP Category Description Comment New feature Standard Modbus RTU, RS232/RS485 support Allows the user to use the gateway as a Modbus RTU Client over RS232 and RS485 New feature Serial data monitor Allows the user to montor the serial traffic on RS232/RS485 ChangeLog - ABC3007 6 HMS Industrial Networks, ab0afe683b6442e380bc7f7ba77b9ce9, Anybus
ChangeLog - ABC3007 ABC3007 - 1.13.01 Added support for: Large serial frame, large variable data object, start / end characters, bugfixes Category Description Comment Bug fix Module could enter fatal during re-configuring., ABC3007 - 1.12.01 Ethernet/IP v1.7 - ODVA CT19 conform Category Description Comment Bug fix Incorrect LED timing., ChangeLog - ABC3007 2 HMS Industrial Networks Bug fix Fixed bug causing all input only connections to fail if no exclusive owner connection exists., by the modbus specification Bug fix Hostname change require powercycle on cfg port with SHICP The Hostname settings were not applied correctly when modified using HMS Ipconfig Bug fix DNS1 and DNS2 address was always 0.0.0.0 after power cycle Improveme nt EDS catalog was always ABC3007, but is used for other article numbers as well Catalog name in Studio 5000 changed to ABCxxxx when using new EDS file ABC3007 - 1.08.01 Support hardware without unused security chip ABC3007 - 1.07.01 EDS file is now inside a zip file ABC3007 - 1.06.02 Minor bugfix in configuration file version handling Category Description Comment Bug fix Incorrect gateway configuration version handling fixed ABC3007 - 1.06.01 Category Description Comment Bug fix Security LED did not operate correcty after startup Fixed an issue causing the security LED to indicate the wrong state Improveme nt Support hardware without unused security chip ChangeLog - ABC3007 4 HMS Industrial Networks Improveme, the user to enable/disable serial nodes using a register from the slave network New feature Broadcast node Allows the user to configure node 0 as a broadcast node New feature Added ADD and XOR checksums Allows the user to use ADD and XOR checksums and one’s and two’s complement on all checksums types New feature Acknowledge and negative acknowledge Allows the user to map a positive feedback acknowledge to a value and a separate negative acknowledge feedback to a value ABC3007 - 1.03.02 New build with updated Ethernet/IP stack ABC3007 - 1.03.01 Category Description Comment New feature Touch algorithm for class 3 control EIP Class 3 connection can act as controlling connection ChangeLog - ABC3007 6 HMS Industrial Networks New feature Changed minimum update time for serial transactions to 3 ms Allows the user to set minimum update time for serial transactions to 3 ms instead of 10ms ABC3007 - 1.02.01 Category Description Comment Bug fix The serial log rows, ab0afe683b6442e380bc7f7ba77b9ce9, Anybus
ChangeLog - ABC3007 ABC3007 - 1.11.02 Support hardware with either Broadcom and Texas PHY, Support LLDP, C o n f o r m a n c e 1 9 C a t e g o r y D e s c r i p t i o n C o m m e n t B u g f i x P o s s i b l e N U L L p o i n t e r a c c e s s i n t i m e r h a n d l i n g I n c r e a s e d s t a b i l i t y u n d e r e x t r e m e i n t e r r u p t l o a d B u g f i x ACD state could be stuck in conflict even after IP is recovered Fixed bug that could keep the Ethernet connection in conflicted state after Automatic Conflict Detection (checking if IP-address is already taken) was resolved Bug fix Navigation bar and mobile mode Navigation bar in web-gui is now automatically hidden on navigation in mobile mode Improvement Let CPU sleep during NULL tasks Reduces the power consumtion of the product New Feature Added LLDP support Allows the user to use Link Layer Discovery Protocol, which is gathering information about devices over ethernet ABC3007 - 1.10.02 Category Description, Comment Bug fix Disabled timeout = 0 was not allowed during import Allows the user to import a configuration with timeout = 0 without issues ABC3007 - 1.10.01 Category Description Comment Bug fix Full-duplex RS232 communication was not working in some HDL-releases Full-duplex for RS232 is now working in all HDL-releases Table of Contents ABC3007 - 1.11.02 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 ABC3007 - 1.10.02 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 ABC3007 - 1.10.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ., when using new EDS file ABC3007 - 1.08.01 Support hardware without unused security chip ABC3007 - 1.07.01 EDS file is now inside a zip file ABC3007 - 1.06.02 Minor bugfix in configuration file version handling Category Description Comment Bug fix Incorrect gateway configuration version handling fixed ABC3007 - 1.06.01 Category Description Comment Bug fix Security LED did not operate correcty after startup Fixed an issue causing the security LED to indicate the wrong state Improvement Support hardware without unused security chip Improvement EDS file changed to zip-file Allows for multiple files in one file Improvement Show the size to/from the serial network for each node Allows the user to see the configured size on each node on the Nodes and transaction page with the total number of bytes to and from the serial network Improvement Improve firmware update timeout error Improved the error message when updating firmware ChangeLog - ABC3007 2 HMS Industrial Networks, Data exchange control Allows the user to enable/disable serial nodes using a register from the slave network New feature Broadcast node Allows the user to configure node 0 as a broadcast node New feature Added ADD and XOR checksums Allows the user to use ADD and XOR checksums and one’s and two’s complement on all checksums types New feature Acknowledge and negative acknowledge Allows the user to map a positive feedback acknowledge to a value and a separate negative acknowledge feedback to a value ABC3007 - 1.03.02 New build with updated Ethernet/IP stack ABC3007 - 1.03.01 Category Description Comment New feature Touch algorithm for class 3 control EIP Class 3 connection can act as controlling connection New feature Changed minimum update time for serial transactions to 3 ms Allows the user to set minimum update time for serial transactions to 3 ms instead of 10ms ABC3007 - 1.02.01 Category Description Comment Bug fix The serial log rows are colored to indicate direction, New feature Configurable byte swap / endian conversion Allows the user to use different byte orders on serial network and the slave network New feature Update mode "Cyclic" Allows the user to set up a transaction to be executed cyclically ChangeLog - ABC3007 4 HMS Industrial Networks ABC3007 - 1.00.01 Modbus RTU Master - Ethernet/IP - MVP Category Description Comment New feature Standard Modbus RTU, RS232/RS485 support Allows the user to use the gateway as a Modbus RTU Client over RS232 and RS485 New feature Serial data monitor Allows the user to montor the serial traffic on RS232/RS485 ChangeLog - ABC3007 5 HMS Industrial Networks, ab0afe683b6442e380bc7f7ba77b9ce9, Anybus
ChangeLog - ABC3007 ABC3007 - 1.15.02 Added possiblity to change order of nodes Category Description Comment Minor bug Configuration port behavior issue when not using the configuration port When accessing the web using an industrial network port, the behaviour sometimes was not as expected., ABC3007 - 1.14.01 Added support for Ethernet/IP Legacy Mode Category Description Comment Bug fix Byte swapping sometimes not applied Fixed bug where byte swap was not always effective., ABC3007 - 1.12.01 Ethernet/IP v1.7 - ODVA CT19 conform Category Description Comment Bug fix Incorrect LED timing., correctly when modified using HMS Ipconfig Bug fix DNS1 and DNS2 address was always 0.0.0.0 after power cycle Improvement EDS catalog was always ABC3007, but is used for other article numbers as well Catalog name in Studio 5000 changed to ABCxxxx when using new EDS file ABC3007 - 1.08.01 Support hardware without unused security chip ChangeLog - ABC3007 4 HMS Industrial Networks ABC3007 - 1.07.01 EDS file is now inside a zip file ABC3007 - 1.06.02 Minor bugfix in configuration file version handling Category Description Comment Bug fix Incorrect gateway configuration version handling fixed ABC3007 - 1.06.01 Category Description Comment Bug fix Security LED did not operate correcty after startup Fixed an issue causing the security LED to indicate the wrong state Improvement Support hardware without unused security chip Improvement EDS file changed to zip-file Allows for multiple files in one file Improvement Show the size to/from the serial network for each node Allows, /disable serial nodes using a register from the slave network New feature Broadcast node Allows the user to configure node 0 as a broadcast node New feature Added ADD and XOR checksums Allows the user to use ADD and XOR checksums and one’s and two’s complement on all checksums types New feature Acknowledge and negative acknowledge Allows the user to map a positive feedback acknowledge to a value and a separate negative acknowledge feedback to a value ABC3007 - 1.03.02 New build with updated Ethernet/IP stack ChangeLog - ABC3007 6 HMS Industrial Networks ABC3007 - 1.03.01 Category Description Comment New feature Touch algorithm for class 3 control EIP Class 3 connection can act as controlling connection New feature Changed minimum update time for serial transactions to 3 ms Allows the user to set minimum update time for serial transactions to 3 ms instead of 10ms ABC3007 - 1.02.01 Category Description Comment Bug fix The serial log rows are colored to indicate direction, ab0afe683b6442e380bc7f7ba77b9ce9, Anybus
A video is presented on how the EtherNet/IP™ master simulator software EIPScan should be configured for an exchange of process data. , More specifically, a Class 1 connection is established to an Anybus Communicator. , APPLICABLE PRODUCTS EIPScan master simulator software ABC3007 Anybus Communicator - EtherNet/IP Adapteror ABC3090 Anybus Communicator - Common Ethernet with EtherNet/IP firmware loaded PRE-REQUISITES Connect the Anybus Communicator Ethernet config port X1 and download a configuration with 4 input and 8 output bytes of process data. , Connect the EtherNet/IP port X2.1 or X2.2 to your PC, as well. , VIDEO The video is also available for download., Video showing EIPScan configuration for cyclic data exchange with an Anybus Communicator, ab0afe683b6442e380bc7f7ba77b9ce9
This article describes how an EDS file for EtherNet/IP should be named., APPLICABLE PRODUCTS All HMS articles with EtherNet/IP network interface. , What is the convention for naming an EtherNet/IP™ EDS file?, An EtherNet/IP EDS file should be named as follows: VendorID + DeviceType + ProductCode + MajorRevision + “00.eds”Example: This is the default device identity information for an Anybus Communicator for EtherNet/IP, p/n ABC3007: Vendor ID 0x005A Device Type 0x000C Product Code 0x005D Major Revision 0x01 Therefore, the EDS file is named 005A000C005D0100.eds., What is the convention for naming an EtherNet/IP™ EDS file?, ab0afe683b6442e380bc7f7ba77b9ce9
Date of Publication: 2021-10-01 Head office: HMS Industrial Networks AB | Stationsgatan 37, Box 4126, SE-300 04 HALMSTAD |www.hms-networks.com Phone: +46 35 17 29 00 | Fax: +46 35 17 29 09 | Mailing address: P.O BOX 4126, SE 300 04 HALMSTAD Product Change Notification Dear Partner, Anybus appreciates your daily involvement and your long-term loyalty., Article number Description Replacement product AB7000 AB7007 AB7013 AB7028 AB7072 Anybus Communicator PROFIBUS DP-V0 Anybus Communicator EtherNet/IP Anybus Communicator PROFINET IO Anybus Communicator Ethernet Modbus-TCP Anybus Communicator EtherNet/IP or Modbus-TCP 2-port ABC3000 ABC3007 / ABC3090 ABC3013 / ABC3090 ABC3028 / ABC3090 ABC3007 / ABC3028 / ABC3090 Key Milestones 2022-01-01 2023-01-01 2023-09-01 2024-01-01 The Communicator Classic products listed above will be replaced by the new Communicator and enter lifecycle phase limited., Prices will be raised, lead times will increase, and no further enhancements will be done., The products listed above will enter lifecycle phase Exit Last time buy for the products listed above The products listed above will be Obsolete Reason for Change The new Communicator has been developed to meet customer requirements for enhanced performance, usability and security and will replace the products listed above., Lifecycle policy: https://www.anybus.com/support/anybus-product-life-cycle _______________________________ Fredrik Brynolf Product Manager Anybus Gateways, PCN 211001 - Anybus Communicators Lifecycle statement LTB, ab0afe683b6442e380bc7f7ba77b9ce9
This article describes the difference about Address format in Anybus Communicator transaction setting. , APPLICABLE PRODUCTS ABC3013, ABC3061, ABC3000, ABC3007, ABC3028 QUESTION There are 4 options in Address format, what is the difference between them? , ANSWER The 4 options in Address format represent the register address format, no matter which one is selected, it represents the same register address, but the format displayed in the attributes on the right of the transacton is different., For example, in the Read Holding Registers transaction, set the starting register address to 0: (1) Address format select "Address (0,1,2,...) ", the transaction starting register address is displayed as "Address 0", They all mean the first holding register, and you can use any one as you like. , What‘s the difference about Address format in Anybus Communicator transaction setting, ab0afe683b6442e380bc7f7ba77b9ce9
This article, it is explained how to use more than 500 Bytes with the Ethernet/IP gateway. , APPLICABLE PRODUCTS ABC4014-A ABC4012 ABC4011 ABC4091 ABC4090 ABC3090 ABC3007 PROBLEM It is not possible to assign more than 500 Bytes in Rockwell Studio 5000. , ANSWER The reason that it is not possible is simply Rockwell doesn't support large forward open service with Class 1 connections. , To be able to assign more than 500 bytes, it is necessary to use a Class 3 connection as it is explained in the video below. , How To - Set Up a EtherNet/IP Class 3 Connection in Studio 5000 , ab0afe683b6442e380bc7f7ba77b9ce9
A video is presented on how the open source EtherNet/IP™ master simulator software Ethernet/IP Explorer should be configured for an exchange of process data. , More specifically, a Class 1 connection is established to an Anybus Communicator. , APPLICABLE PRODUCTS ABC3007 Anybus Communicator - EtherNet/IP Adapteror ABC3090 Anybus Communicator - Common Ethernet with EtherNet/IP firmware loaded PRE-REQUISITES Connect the Anybus Communicator Ethernet config port X1 and download a configuration of 8 input and 4 output bytes of process data. , VIDEO The video is also available for download. , ADDITIONAL INFO Download Ethernet/IP Explorer, Video showing "Ethernet/IP Explorer" configuration for cyclic data exchange with an Anybus Communicator, ab0afe683b6442e380bc7f7ba77b9ce9
This article introduces how to import configuration file to ABC3xxx serial gateway and what things need to be noted., APPLICABLE PRODUCTS The gateway of ABC3xxx with serial interface. , PRE-REQUISITES The ABC3xxx series serial gateway allows configuration files to be imported into each other even if the gateway model is different., For example, if the configuration file of ABC3013 (PROFINET ->serial) is imported into ABC3007 (EtherNet/IP ->serial), the serial communication configuration can be imported normally, while the upper network configuration (PROFINET \ EtherNet/IP...) will not be imported., When the imported gateway configuration file does not match the actual gateway model, a network mismatch prompt will appear., Notes of importing configuration file to ABC3xxx serial gateway, ab0afe683b6442e380bc7f7ba77b9ce9
This article explains the limitations of the Anybus Linking devices and alternatives when RSLogix / Studio 5000 cannot be used for configuration. , APPLICABLE PRODUCTS Anybus Linking Devices (HMS-EN2SE-R, HMS-EN2MB-R, HMS-EN2PB-R) PRE-REQUISITES This Guide assume you have the following hardware and software installed: RSLogix / Studio 5000 version 20.01 or newer Anybus Linking Device How can I configure my Linking Device without RSLogix 5000?, The configuration is done via an Add-On Profile built into the program. , We offer variations of all three of these devices which can be configured either with their own included software or through a built-in webpage., The following devices can be substituted when RSLogix cannot be used: AB7072 for HMS-EN2SE-R (We have a new Serial Communicator here: ABC3007) AB9006 for HMS-EN2MB-R AB7800 for HMS-EN2PB-R ADDITIONAL INFO Anybus Linking Devices Anybus Gateway Index , How to configure Anybus Linking Device without RSLogix / Studio 5000, ab0afe683b6442e380bc7f7ba77b9ce9
Anybus Communicator ABC3007 Configuration Setup, ab0afe683b6442e380bc7f7ba77b9ce9
Anybus Communicator ABC3007 Test Setup, ab0afe683b6442e380bc7f7ba77b9ce9
1b51de05-22ce-6706-92f4-ff00001bbfd4---ABC3007-03---, ab0afe683b6442e380bc7f7ba77b9ce9

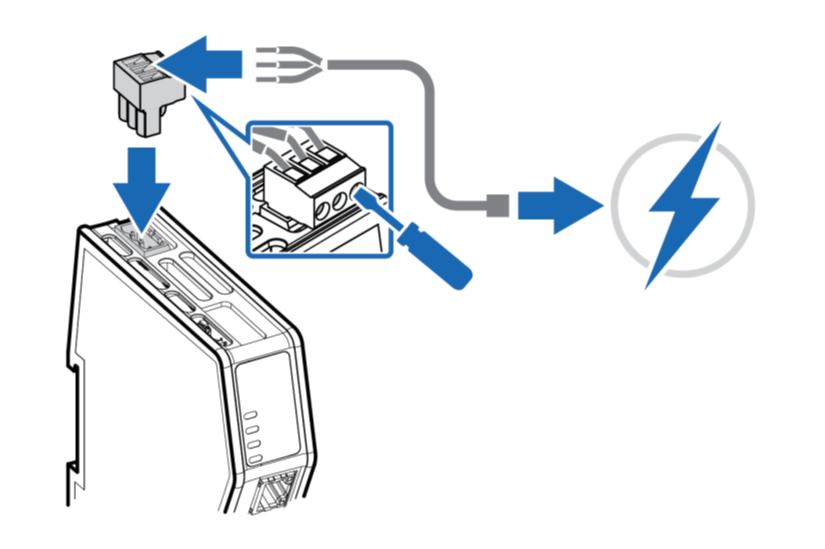

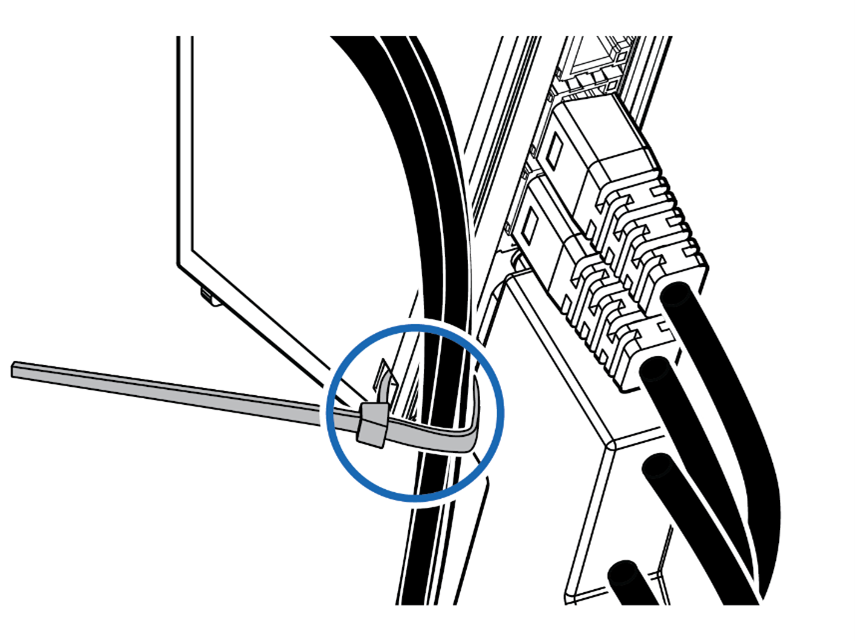

Those responsible for the use of the product must acquire sufficient knowledge in order to ensure that the product is used correctly in their specific application and that the application meets all performance and safety requirements including any applicable laws, regulations, codes and standards., NOTE As an alternative, you can set a static IP address within the same IP address range as the Communicator IP address on the computer accessing the Communicator built-in web interface., To be able to access the Communicator built-in web interface you may need to adjust the IP settings, choose one of the following methods: Option 1 | Set a static IP address on the PC On the PC accessing the Communicator built-in web interface, set a static IP address within the same IP address range as the Communicator IP address., Te c h n i cal Specifications Article identification ABC3007 Configuration connector RJ45 Communication connector RJ45 x 2 Serial connector 7-pin screw connector Power connector 3-pin screw connector Power supply 12-30 VDC, Reverse voltage protection and short circuit protection Power consumption Typical: 90 mA @ 24 V (2.2 W) Max: 3 W Storage temperature -40 to +85 °C Operating temperature -25 to +70 °C Humidity EN 600068-2-78: Damp heat, +40°C, 93% humidity for 4 days EN 60068-2-30: Damp heat, +25°C – +55°C, 95% RH, 2 cycles Vibration See datasheet Housing material Plastic, See datasheet for details Protection class IP20 Product weight 150 g Dimensions 27 x 144 x 98 mm (W x H x D) with connectors included Mounting DIN-rail Anybus ® Communicator ™ - EtherNet/IP ™ to Modbus RTU/Serial Technical Data Page 24 of 28 SP2791 Version 1.12 8., nodes are offline N/A Green/Red, flashing Power up self-test/ Firmware update/ Firmware recovery N/A N/A N/A Fatal Error and Exception Error Fatal error: A fatal error causes the Communicator firmware application to crash in an uncontrolled manner., Startup Guide - Anybus Communicator EtherNet/IP, ab0afe683b6442e380bc7f7ba77b9ce9, Anybus
