This document will discuss setting up an PAXT analog panel meter for the first time.
The PAXT analog panel meter can be configured to display temperature based on a thermocouple or RTD inputs. An optional dual or quad relay setpoint card can be added to give control for setpoint activated indication, or simple ON/OFF temperature control of your application.
PAXT0000
PAXT0010
None
Unit Wiring

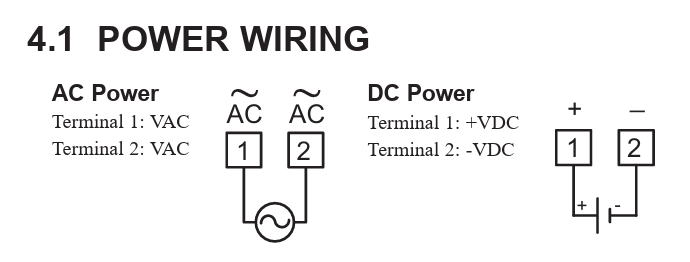

PAXT Power Wiring

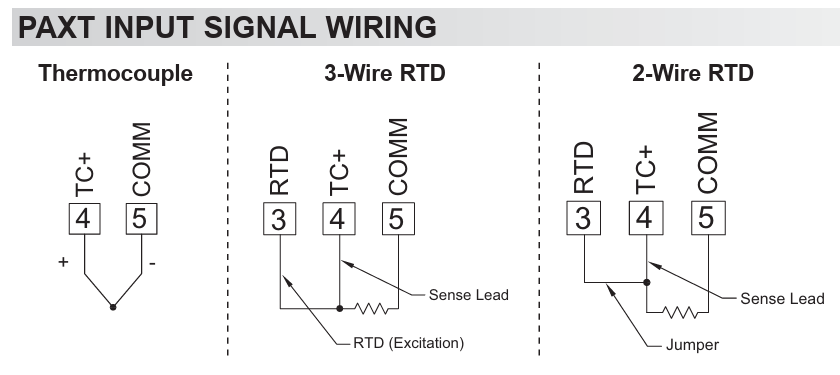

PAXT Input Wiring
Unit Setup
A few parameters in Menu 1-INP will need to be configured based on your input type and displayed temperature unit. Basic settings are listed below. See page 17-18 of the PAX analog product manual for more detail.
Menu 1-INP
RANGE-set for your input signal type
SCALE - set for your application temperature unit C or F
DECPT - set for the application display resolution
Optional setpoint relay card
The PAX analog input panel meter can be fitted with an optional setpoint activated relay card to offer basic indication functions, or simple ON/OFF process control.
If adding one of these option cards. Consult Menu 6-SPT, page 23-24 of the product manual for more information. Basic setup is outlined below.
Menu 6-SPT
SPSEL- set to the setpoint relay you are going to configure
ACT-set your output action type, Low or high side activation
SP- set for your process setpoint value
OUT-set your application output logic.
RST- set your reset action type.
The above are basic output settings only, there are optional settings in the product manual you may need to use based on your application. Consult the product manual for more information.
Additional Info
PAXT Product Manual Link
