How to setup the LD counter display for the first time

20 Jun 2025

This document will discuss setting up an LD series analog display for the first time.



The LD series of large display can be configured for count, length, or rate applications. There is a bank of DIP switches that will need to be set, based on application, under the right-hand end plate.  Consult the LD product manual for more information.



APPLICABLE PRODUCTS

LD2006P0

LD4006P0



PRE-REQUISITES

None



IN THIS ARTICLE





dip switches.PNG

DIP Switches


power wiring.PNG

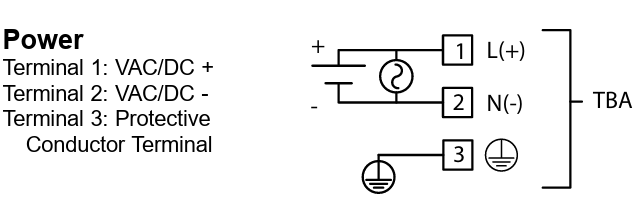

LD power supply connection

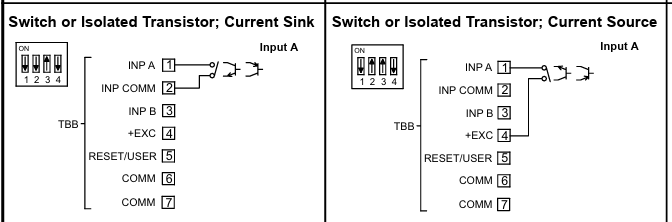

 Input wiring for contacts





encoder input.PNG

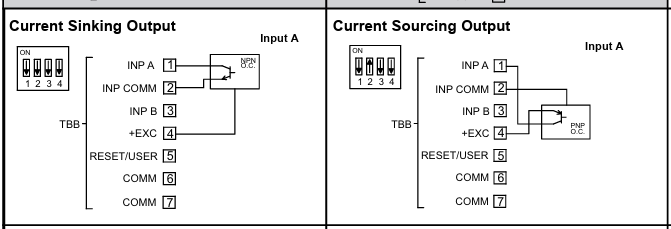

Input wiring NPN or PNP encoder signals.







Scaling the display



Method 1: Known Pulses per Unit

First, determine where you want the decimal point to be located.

0=1
0.0=10
0.00=100
0.000=1000
0.0000=10000

Now determine the number of pulses the counter will receive per engineering unit.

Engineering Unit – The units being represented on the display. For example, for a distance measurement application, the displayed engineering units may be in feet, inches, miles, etc.

To determine the scale factor, divide the desired decimal point location number by the number of pulses per engineering unit.

Example:

If you want to display 2 decimal positions (0.00) and you have 200 pulses per unit. Your scale factor would be 100/200=0.5



Method 2: Unknown Pulses per Unit

Start by programming the display decimal place to 0, and set the counter A scale factor to 1.000

Reset the counter to 0, and run a known length of material, until the desired unit has been achieved.

For example, if you have an application measuring feet, run the application until 1 foot has been measured.

The number that is displayed on the counter will be your pulses per unit because the scale factor has been set to 1.00, the decimal position was 0.



Now calculate the scale factor using the formula described below.



The unit is to display feet to 1/10th decimal place. After a distance of 1 foot has been traveled. The number of input pulses per foot will be displayed.  For feet to 1/10th decimal position, take 10 divided by your displayed pulse value.  To program the meter, set the display decimal position to 0.0. The counter scale factor to the example value below.



One foot of travel = 500 display pulses

Calculated scale factor is 10/500= 0.02000



Method 3: Rate Scaling



When scaling the LD unit to display rate.  You, generally, only need to know two values

  • Display unit time base, per second, minute, hour.
  • Number of input pulses per engineering unit.

Example. Programming the LD display for RPM, with 60 input pulses per rotation of a gear.

In menu 2-RATE

Program the rt-DSP value at 60. This is based on 60 seconds in a minute.

Program the rt-INP value at 60.  This is based on the number of input pulses per unit.

If your displayed time base is per second, hour, or if the input pulse rate is less than 10 pulses per unit. Reference page 9 of the Product manual for more scaling instructions.
