Please note
A PGMMOD05 programming unit will be required for setting up the IFM0001 signal conditioner.
Once setup, you do not need to keep it mounted to the module unless a local display is desired.
If you have multiple IFM0001 modules that require the same setup. You can save the configuration to the PGMMOD05 unit, then download it to other IFM0001 modules. This function is under the advanced menu, memory store/ memory load parameter.
The module power connections are not polarity sensitive.
APPLICABLE PRODUCTS
IFMR0036
IFMR0066
PRE-REQUISITES
IFMR0036
IFMR0066
IN THIS ARTICLE
Referenced below are the power, input signal, and output signal connections for the IFM0001 signal conditioner. These are application dependant, and if more information is required, consult pages 7-10 of the product manual.
IFM0001 input signal connections.

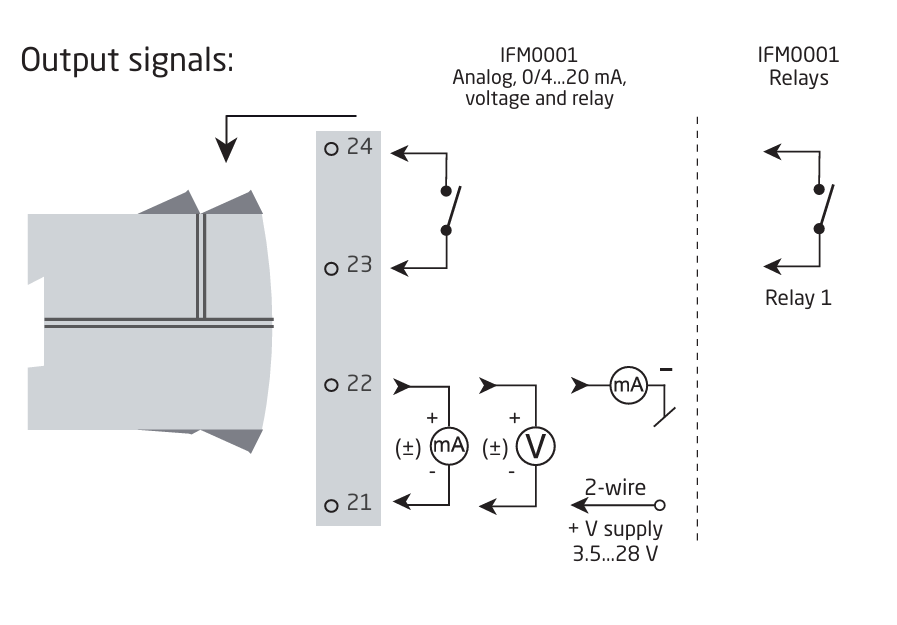

IFM0001 output connections
IFM0001 power connections
Note
Module power connections are not polarity sensitive.
Programming the module input, scale, and trip relay is referenced on page 27-29 of the product manual. You generally will need to configure the following parameters.
Basic parameter conversion
When converting from the IFMR unit to the IFM0001, the below parameters will need to be set.
Input type - IN.TYPE
Input excitation voltage - S.SUP (if required)
Input unit-IN.UNIT (Hz)
Input frequency- P.REV
Trip relay function- R1.FUNC
Trip relay contact logic- R1.CONT
Trip relay setpoint- R1.SETP
Trip relay action - ACT.DIR
Trip relay hysteresis- R1.HYS
Once the unit has been configured for the application. A long press of the OK button will exit configuration mode. It is suggested that you enter the advanced menu, memory save parameter, and save your configuration to the PGMMOD05 unit.
ADDITIONAL INFO
Link to IFMR product manual
Link to IFM0001 product manual
