This technical note presents how to connect G3 HMIs on a Unitelway network. This network is using a proprietary protocol from Schneider Telemecanique. The PLCs are also known as Square D or Modicon. As cabling is particular for Unitelway, this technical note will concentrate mainly on the connections between the HMI and the PLCs and between the PLCs. The example is based on a real application and has been tested.
Red Lion Controls CR1000 Human Machine Interface (HMI), CR3000 HMI, DA Series Data Station, Data Station Plus (DSP), G3 HMI, G3 Kadet HMI, Graphite® Controller, Graphite HMI, Modular Controller (MC), and ProducTVity Station™ (PTV)

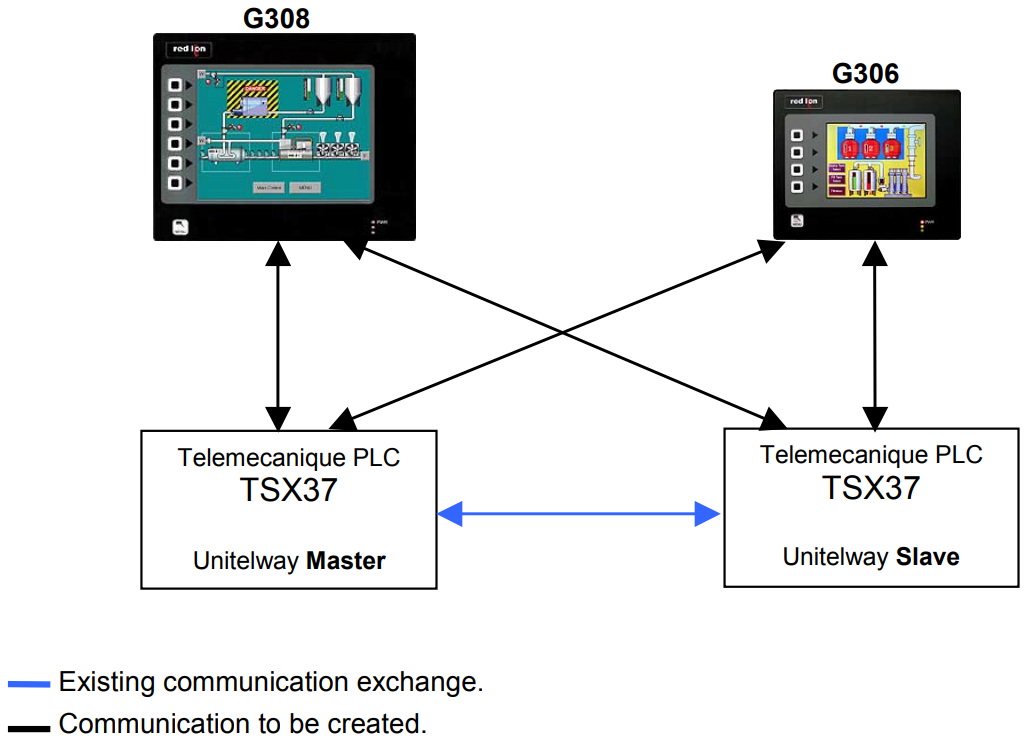

See Figure 1:
Figure 1.
As the Unitelway network supports only one master, both G3 will be slaves. Therefore, the communication driver Unitelway Slave will be used in Crimson 2.0 configuration.

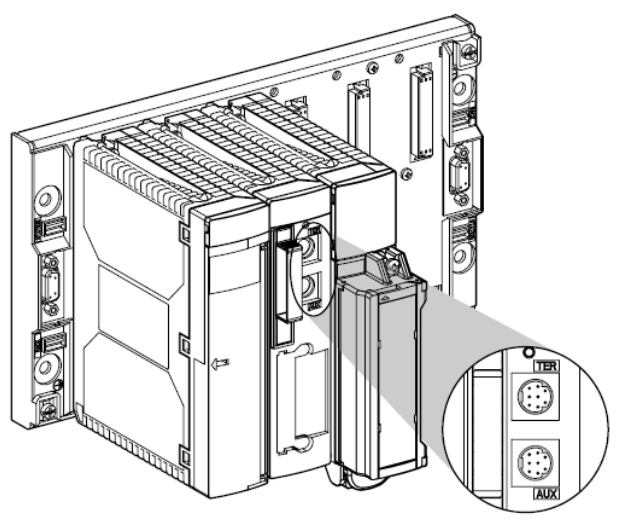

In order to get the data exchange shown above working, two cabling solutions are available. Telemecanique PLCs have 2 communication ports on the front panel, see Figure 2. They are actually on the same network and can be used for easy connections to create the network.
Figure 2.

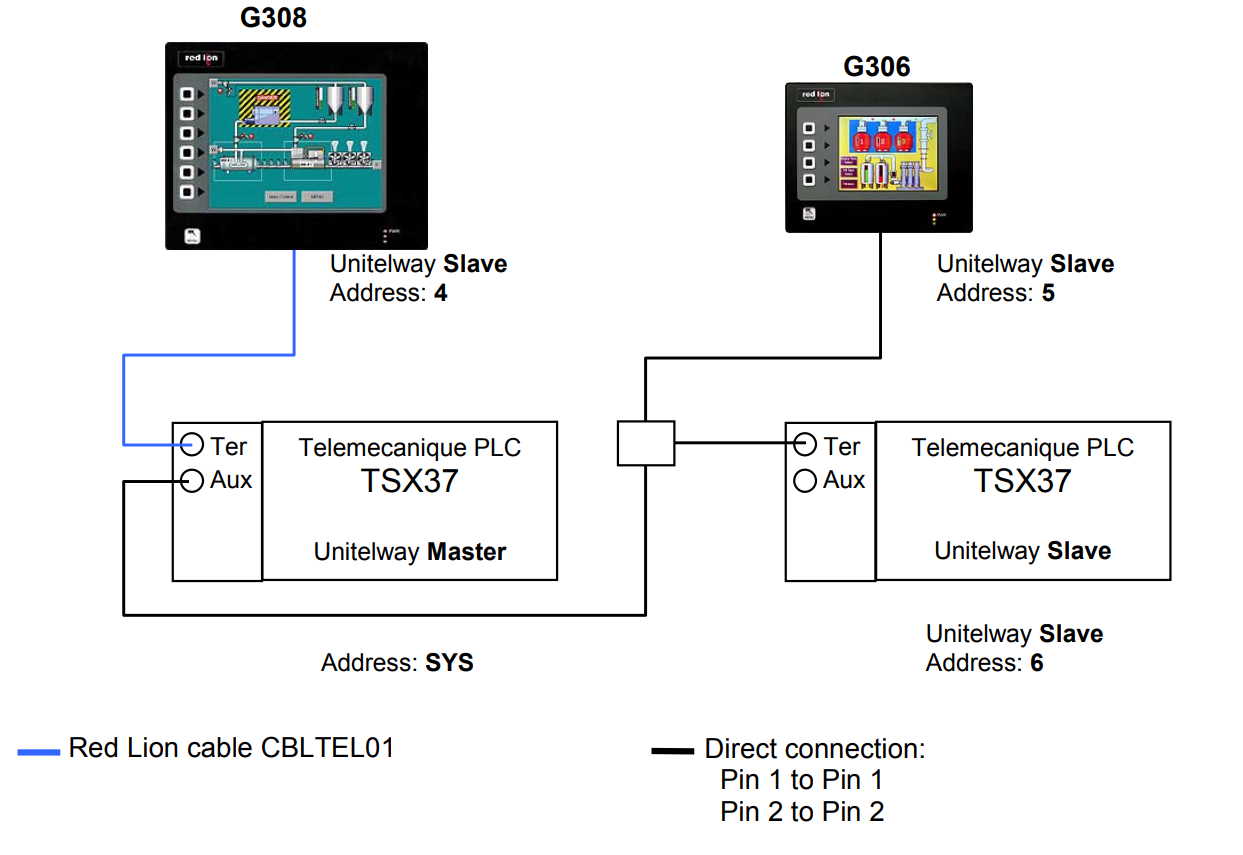

Figure 3 shows the connections made using Red Lion Cables CBLTEL01 (Cable for G3
in Slave mode). Details of the cables are shown after.
Figure 3.

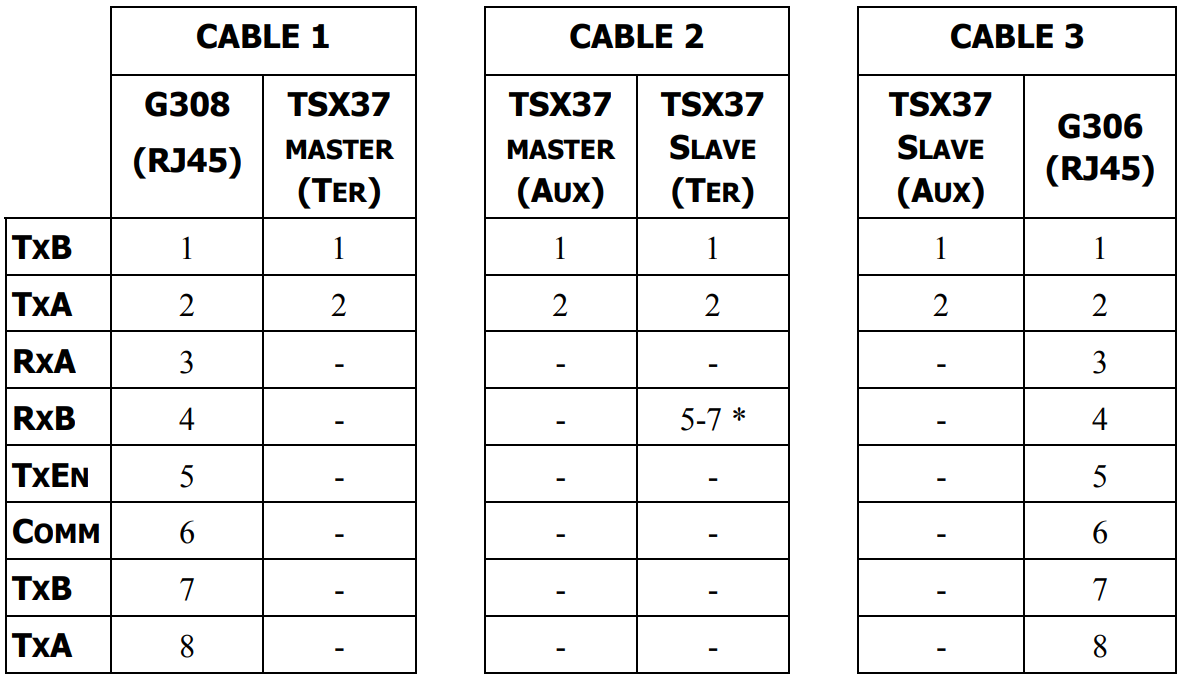

The cabling pinout is shown in Figure 4.
Figure 4.
* The above table jumper a bridge between Pin 5 and 7 on the Slave TSX37 terminal port. This bridge is to inform the PLC to act as a slave.

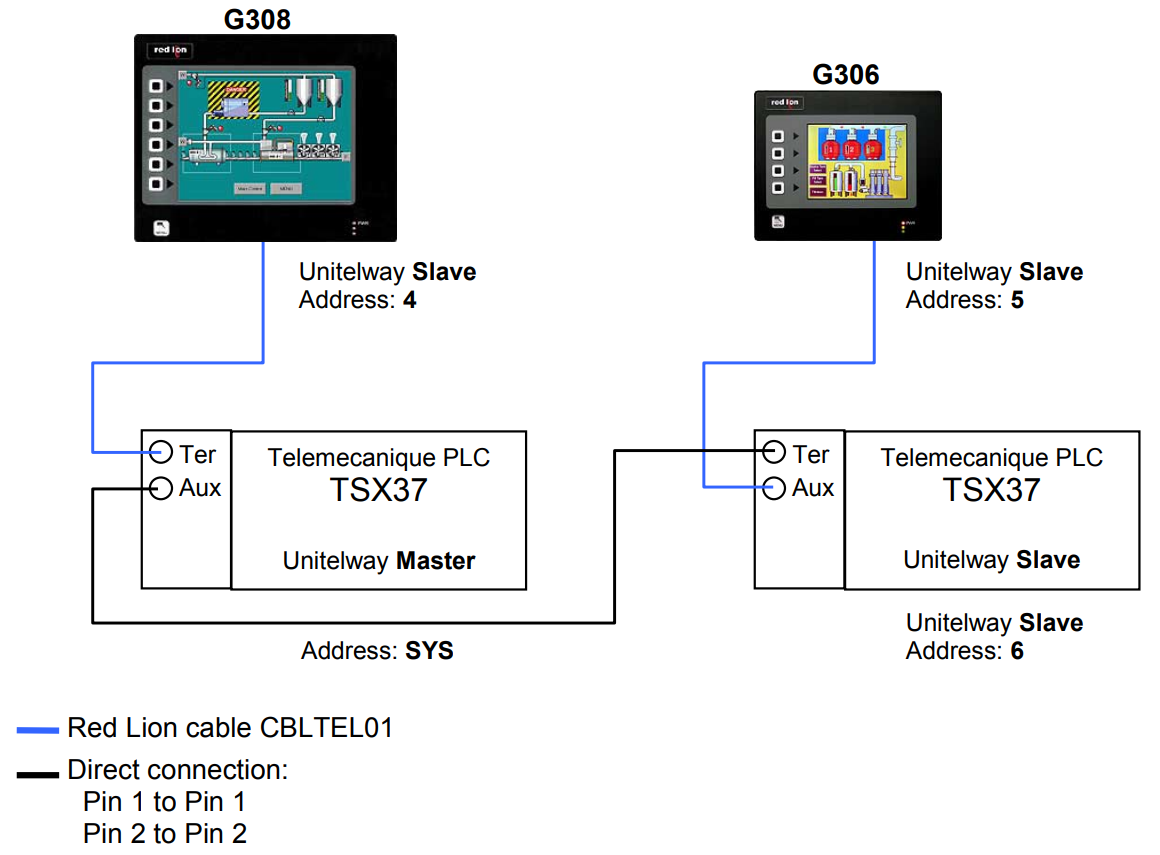

In this solution, cabling will be the same from a Pin-to-Pin point of view; only the connection point will be different. It will be as shown in Figure 5:
Figure 5.
In order to get this network up on running, the G3s have to be programmed as followed:

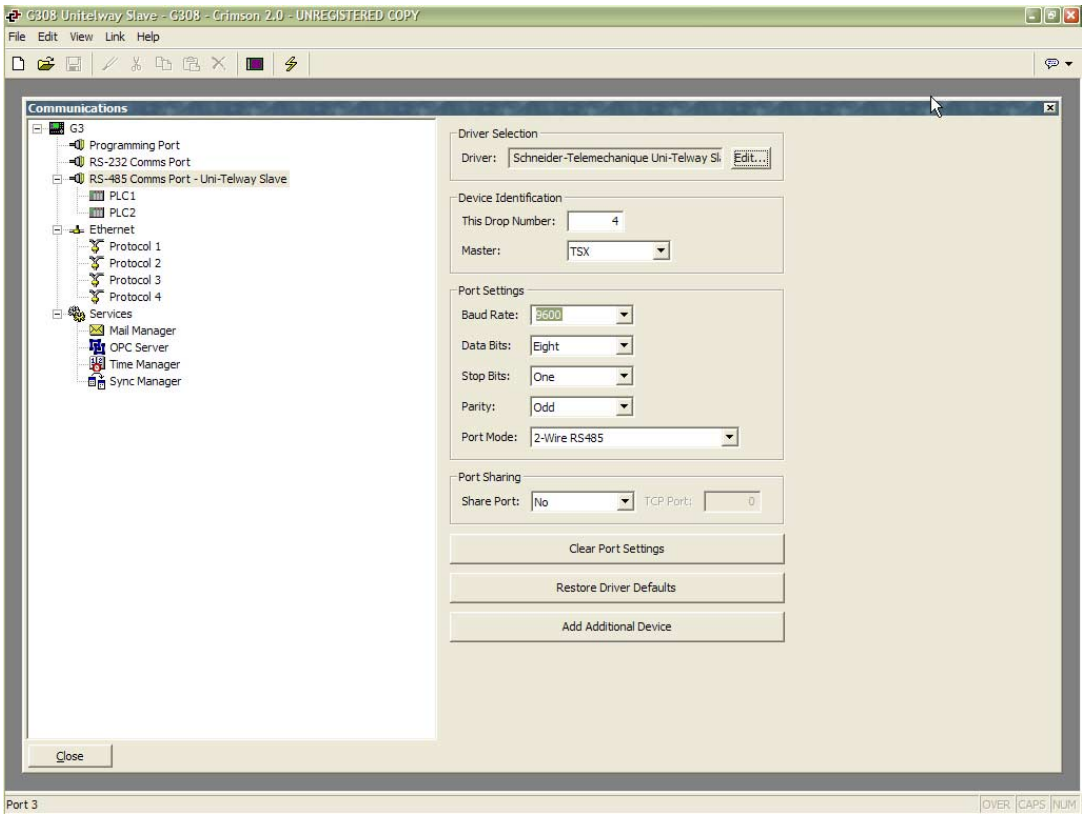

Referring to Figure 6:
- Click on the RS485 Comms port
- Select Schneider-Telemechanique Unitelway Slave protocol
- Choose right Baud Rate, parity and stop bits as defined by the network
- Define the TSX as a Master (in our example)
- Enter the G3 address on the network. This address has to be different from the other slaves and cannot be 1, 2 or 3 as they are reserved by the master.
Figure 6.
- Referring to Figure 7, the Target Drop Number indicates the address of the unit you wish to communicate with. An address of 0 will access the master. You can access other slaves as well if you enter their address.
Figure 7.
Finally, simply create Data Tags and map them to the PLC you want to access, you can visualize any data available in the Master or slaves PLCs.
