This document describes how to set up the Honeywell IPC620 driver in Crimson Software.
CR1000 HMI / CR3000 HMI / DA Series Data Station / Graphite® HMI / Graphite Controller / PTV / Data Station Plus / Modular Controller / G3 HMI / G3 Kadet HMI
Configuring the Honeywell IPC620 Serial Driver in Crimson.
Crimson 2.0 / Crimson 3.0 / Crimson 3.1

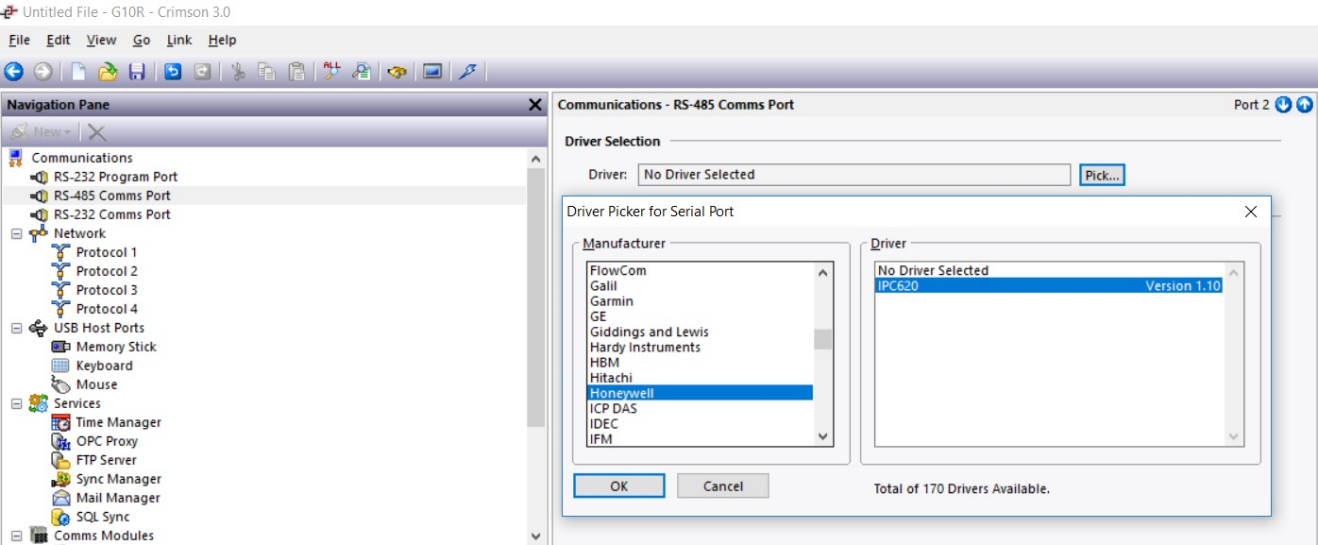

Referring to Figure 1:
1. Navigate to the Communications section.
2. Select the RS-485 Port.
3. Click on the Pick button.
4. Scroll to and select Honeywell under Manufacturer in the Driver Selection window.
5. Select IPC620 under Driver.
Figure 1.

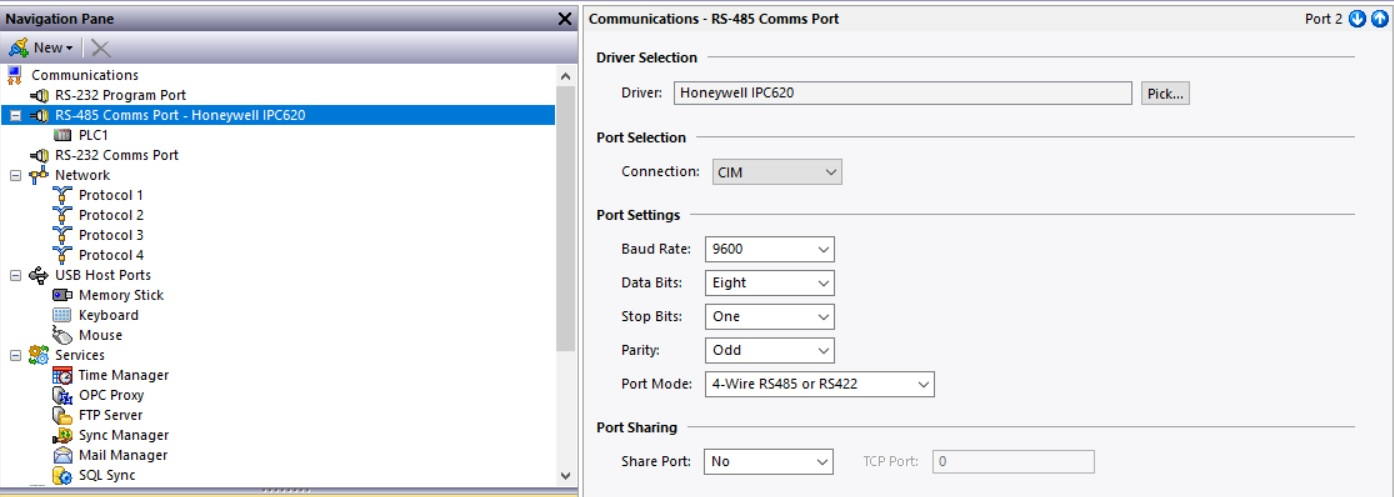

Referring to Figure 2, set up the port parameters to match the Honeywell device.
1. Port Selection
2. Port Settings
a. Baud Rate
b. Data Bits
c. Stop Bits
d. Parity
e. Port Mode
Figure 2.

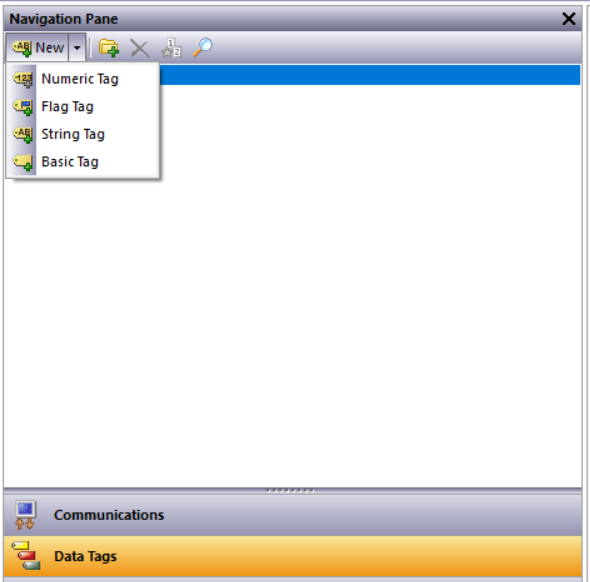

Referring to Figure 3:
1. Navigate to the Data Tags section.
2. Create a new Numeric tag.
Figure 3.
3. Select the new tag (Tag1).
4. Change the Source from Internal to PLC1.

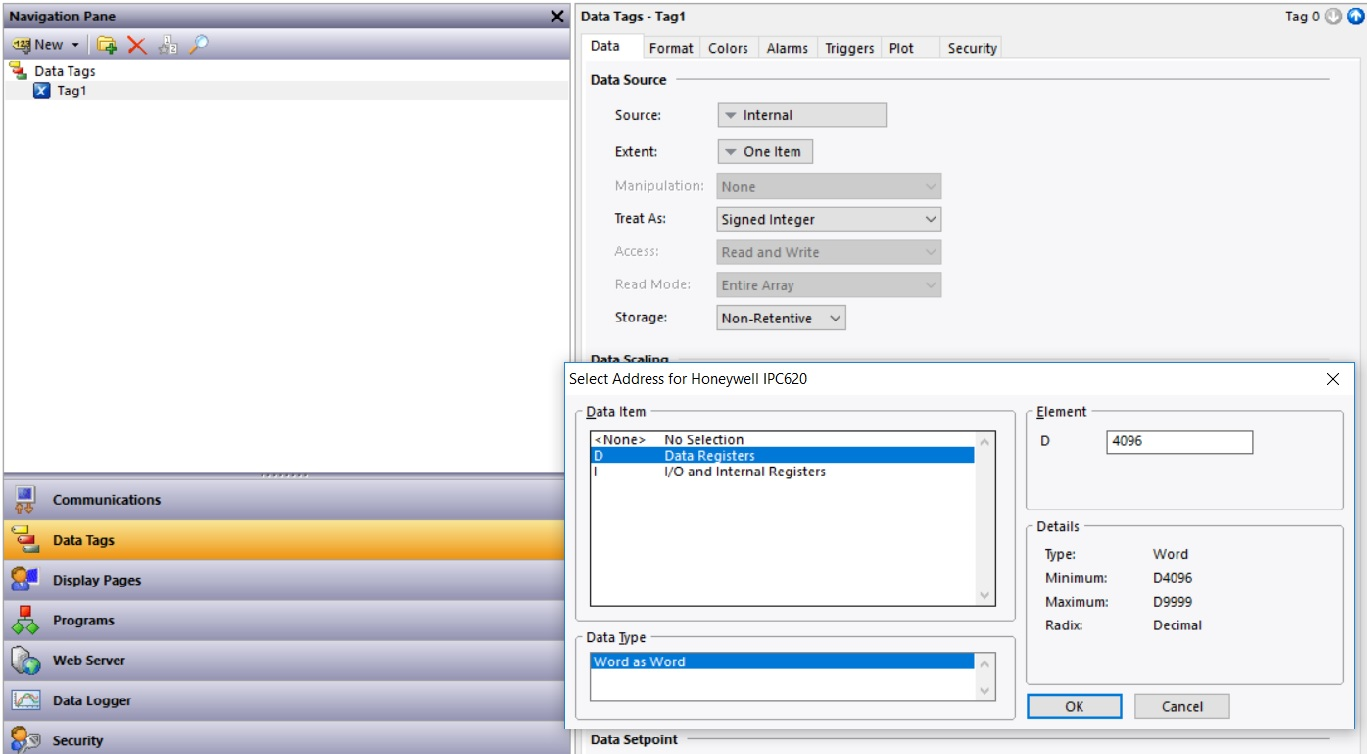

5. Select the appropriate Data Item, see Figure 4.
Figure 4.
NOTE: Consult the controller’s documentation for the mapping of individual registers and their functionality.
