Industrial Automation Tech Note 10 - TNIA10

Abstract:

This document describes the use of Raw Port drivers to send and receive ASCII data to compatible Red Lion Controls (RLC) products.

Products:

Red Lion Controls CR1000 Human Machine Interface (HMI), CR3000 HMI, Data Station Plus (Excludes LE), G3 HMI, G3 Kadet HMI, Graphite® Controller, Graphite HMI, Modular Controller (Excludes LE and V2), and ProducTVity Station™

Use Case:

Raw Port drivers are used when Crimson does not have a driver for a particular device, or when ASCII data needs to be transferred.

Required Software:

Crimson® 3.0 or 3.1

Required Operating System:

Microsoft Windows 2000, or above

Introduction

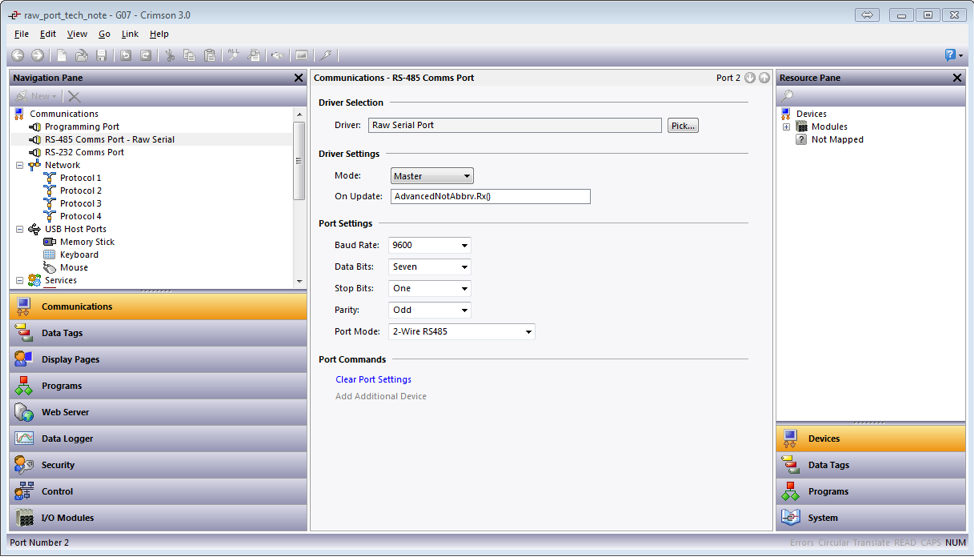

The port number is used as an argument in all of the functions associated with sending and receiving data through a raw port. In order to identify the port number, start Crimson and click on the Communications section of the Navigation pane. Click on the Communications - RS-485 Comms Port and click Pick... next to the Driver field, select <System> - Raw Serial Port, and then click OK. Refer to the upper right of the Editing Pane or the lower left of the Crimson window in the status bar; Port Number 2, as shown in Figure 1.


Figure 1.

When a Raw Driver is assigned to a port, the On Update parameter is used to define an action that occurs during every communications scan; this is the location that calls a program that acts as a receive routine.

When using TCP/IP, there are two drivers available: Raw TCP/IP Active and Raw TCP/IP Passive.  The Active driver is used when the Red Lion Device needs to establish a connection to the other device, it requires the IP address of the remote device and the TCP port that will be used. The Passive driver is used when the remote device will establish a connection with the Red Lion Device, it requires only the TCP Port to monitor for incoming connections.

The majority of the code examples that follow were sourced from the Crimson 3.0 database file that can be downloaded at the bottom of this page.

The first three (3) sections use the RLC Instrument protocol for their examples, specifically communicating to a PAXI. See page 25 of the PAXI datasheet/manual for the protocol specification: http://files.redlion.net/filedepot_download/213/5263.

Basic

Transmitting Fixed Strings

Transmitting a fixed string requires only one function and one line of code.

Send N01TA$

 PortPrint(2, "N01TA$");



Send 123<CR><LF> (123<carriage return><linefeed>)

 PortPrint(2, “123\r\n”);



Display Entire Received Message

To read a string from the port’s buffer, use the PortInput function.


input = PortInput(2, 0, 13, 500, 0);This will return any ASCII characters that precede a <CR>, if 500ms goes by without a <CR> then it will return a null string. In order to hold the last valid (non-null) received
string, an IF statement will be required to verify what was received before populating a tag.input = PortInput(2, 0, 13, 500, 0);

if(input != "") {

  Basic.Response = input;

    }



  Here is the code for a full receive routine:

 cstring input;

 input = PortInput(2, 0, 13, 500, 0);

 if(input != "") {

 Basic.Response = input;

 }



Intermediate

Transmitting Strings with Embedded Variables

In order to embed variables into a string transmission, the variable must be made into a string (if it is not already) and then concatenated with other strings before transmission.

PortPrint(2, "N1VM" + IntToText(Intermediate.Write, 10, 5) + "$");



or

 output = "N1VM" + IntToText(Intermediate.Write, 10, 5) + "$";

 PortPrint(2, output);



or

 output = "N1VM";

 output += IntToText(Intermediate.Write, 10, 5);

 output += "$";

 PortPrint(2, output);

or

This customer-submitted (thank you Paul) example of working with a Zebra printer using their ZPL commands.

Parsing Received String

As in the Basic section the buffer needs read and checked for a non-null string. Depending on the data format, different parsing techniques may be required.

 input = PortInput(2, 0, 13, 500, 0);

 if(input != "") {


1.  The first X characters are a portion of the transmission that needs to be separated:

 Node = Left(input, 2);

2.  The next portion of the transmission is X characters after the first space:

 space = Find(input, 32, 0);

 Mnemonic = Mid(input, space+1, 3);



3.  The final portion is the last 12 characters, but is padded with spaces:

 temp = Strip(Right(input, 12), ' ');

 Value = TextToInt(temp, 10);



Here is the code for a full receive routine:

 cstring input;

 cstring temp;

 int space;

 input = PortInput(2, 0, 13, 500, 0);

 if(input != "") {

            Intermediate.Node = TextToInt(Left(input, 2), 10);

            space = Find(input, 32, 0);

            Intermediate.Mnemonic = Mid(input, space+1, 3);

            temp = Strip(Right(input, 12), ' ');

            Intermediate.Value = TextToInt(temp, 10);

            }



Advanced

Cyclically Polling Parameters

If more than a single transmission is required to gather all of the needed data, a state machine can be used to cycle through the different transmissions.

switch(State) {

            // poll counter A

            case 0:

                        output = "N01TA$";

                        break;

            // poll rate

            case 1:

                        output = "N01TD$";

                        break;

            // poll setpoint 1

            case 2:

                        output = "N01TM$";

                        break;

            }



Interrupt Polling to Issue Write

If there is a need to write, the polling may need to wait while the write request is serviced, this can be done by using an IF statement before entering the state machine.

 // need to write?

 if(NeedToWrite) {

            NeedToWrite = 0;

            // generate output

            output = "N1VM";

            output += IntToText(Write, 10, 5);

            output += "$";

            // clear the port's buffer

            ClearRx(port);

            // send command

            PortPrint(2, output);

            // exit program

            return;

            }



Receive: Assuming Data Received is what was Requested

If the incoming data is assumed to be correct, or if there are no identifiers in the response, a similar state machine can be used:

 // populate correct tag based on what was requested

 switch(State) {

            // counter A

            case 0:

                        CountA = value;

                        break;

            // rate

            case 1:

                        Rate = value;

                        break;

            // setpoint 1

            case 2:

                        Setpoint1 = value;

                        State = -1;

                        break;

            }

 // increment state to poll the next value

 State ++;



Receive: Response Includes Identification of Data

If the incoming data includes identifiers in the response, they can be used to determine which tag to populate.

  // parse response

// Node Address is the first 2 characters

node = TextToInt(Left(input, 2), 10);

// the Mnemonic follows a space after the node

// find the space

space = Find(input, 32, 0);                     // could also use find(input, ' ', 0)

mnemonic = Mid(input, space+1, 3);

// the data is the last 12 bytes, padded with spaces, which need to be removed

temp = Strip(Right(input, 12), ' ');           // could also use strip(left(input, 12), 32);

value = TextToInt(temp, 10);

// populate correct tag based on what was received

if(mnemonic == "CTA") {

            CountA = value;

            }

else if(mnemonic == "RTE") {

            Rate = value;

            }

else if(mnemonic == "SP1") {

            Setpoint1 = value;

            }



Receive: Byte by Byte

Receiving byte by byte is required for ASCII protocols, but can also be used for troubleshooting or if the format of the response is unknown. The received data can be loaded into an array, or a string can be built from it, the code below does both.

  // this Rx routine will allow you to display all of the bytes received in a transmission

// declare locals

int i;

int j;

int in   = PortRead(3, 100);

// loop while there is data in the buffer, populating the array

while(in != -1) {

            Array[i++] = in;

            in = PortRead(3, 100);

            }

// if something was received, build a string

if(i > 0) {

            String = "";

            for(j = 0; j <= i; j ++)       {

                        String += Array[j];

                        }

            }



Raw UDP

Transmitting

Unlike the Raw TCP/IP drivers, the only configurable property is the port that it listens on. Part of the transmission includes both the target IP address, target UDP port, and byte count.

  // Target IP = 192.168.50.11

PortWrite(4, 192);

PortWrite(4, 168);

PortWrite(4, 50);

PortWrite(4, 11);

// Target Port = 0x1234

PortWrite(4, 0x12);

PortWrite(4, 0x34);

// Byte Count = 11

PortWrite(4, 0);

PortWrite(4, 11);

// UDP Data (0123456789<CR>)

PortPrint(4, "0123456789\r");



Receiving

Unlike the other raw port drivers, the UDP buffer contains more than just response data. It uses an “R” to identify the beginning of a response, followed by the source IP address, port it came in on, and the byte count.

  // Check for Frame

if( PortRead(4, 0) == 'R' ) {

            // Read Source IP

            RxIP  = PortRead(4, 0) << 24;

            RxIP |= PortRead(4, 0) << 16;

            RxIP |= PortRead(4, 0) <<  8;

            RxIP |= PortRead(4, 0) <<  0;

            // Read Source Port

            RxPort  = PortRead(4, 0) << 8;

            RxPort |= PortRead(4, 0) << 0;

            // Read Length

            RxCount  = PortRead(4, 0) << 8;

            RxCount |= PortRead(4, 0) << 0;

            // Read Data

            Fill(RxData[0], 0, 40);

            int n;

            for( n = 0; n < RxCount; n++ ) {

                        RxData[n] = PortRead(4, n);

                        }

            // Increment Sequence

            RxSeq++;

            }


Clearing Receive Buffer

Reading from the buffer removes the data from it, a while loop can be used to clear out old data.

 // loop until buffer is empty

 while(PortRead(2, 0) != -1) {}
