AWB5121-B, Industrial Wireless LAN RouterAWB5121-BThe Anybus Wireless Routers are ideal to provide your industry with high-speed WLAN connectivity.

Tekniske specifikationer Bestillingskoder AWB5121 (WLAN Router) AWB5221 (LTE Router) Ethernetstik RJ45 Strømforsyning 8 til 32 VDC Maks. 11,2 W Strømstik Aftageligt 4-benet stik til klemmerække 2 ben til strømforsyning 2 ben til tør relæudgang (maks. 0,5 A/24 VDC) WLAN 2,4 GHz Maksimal RF-overført effekt: IEEE 802.11b: 23 dBm ±2 dB IEEE 802.11g: 24 dBm ±2 dB IEEE 802.11n: 24 dBm ±2 dB WLAN 5 GHz Maksimal RF-overført effekt: IEEE 802.11a: 23 dBm ±2 dB IEEE 802.11n/ac: 22 dBm ±2 dB LTE Maksimal RF-overført effekt: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12: +23 dBm ±2 dB Mål 200 x 51 x 126 mm (B x H x D) uden DIN-monteringsbeslag Vægt 1.400 g Husets materiale Stål og aluminium IP-beskyttelsesgrad IP31 Montering Panelmontering eller DIN-skinnemontering Driftstemperatur -40 °C til +75 °C, 5-95 % ikke-kondenserende Yderligere tekniske data og oplysninger vedrørende installationen og brugen af dette produkt kan findes på www.anybus.com/support., Τεχνικές προδιαγραφές Κωδικοί παραγγελιών AWB5121 (δρομολογητής WLAN) AWB5221 (δρομολογητής LTE) Σύνδεσμος Ethernet RJ45 Τροφοδοτικό 8 έως 32 VDC Μέγιστο 11,2 W Σύνδεσμος τροφοδοσίας Αποσπώμενος τερματικός ακροδέκτης 4 πόλων 2 πόλοι για είσοδο ρεύματος 2 πόλοι για έξοδο ξηρού ηλεκτρονόμου (μέγ. 0,5 A/24 VDC) WLAN 2,4 GHz Μέγιστη μεταδιδόμενη ισχύς RF: IEEE 802.11 b: 23 dBm ±2 dB IEEE 802.11g: 24 dBm ±2 dB IEEE 802.11 n: 24 dBm ±2 dB WLAN 5 GHz Μέγιστη μεταδιδόμενη ισχύς RF: IEEE 802.11a: 23 dBm ±2 dB IEEE 802.11n/ac: 22 dBm ±2 dB LTE Μέγιστη μεταδιδόμενη ισχύς RF: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12: +23 dBm ±2 dB Διαστάσεις 200 x 51 x 126 mm (Π x Υ x Β) χωρίς εξάρτημα στερέωσης DIN Βάρος 1400 γρ., Techniniai duomenys Užsakymo kodai AWB5121 (WLAN maršruto parinktuvas) AWB5221 (LTE maršruto parinktuvas) Eterneto jungtis RJ45 Maitinimo šaltinis 8–32 V nuol. sr., Technische specificaties Bestelcodes AWB5121 (WLAN-router) AWB5221 (LTE-router) Ethernet-aansluiting RJ45 Voeding 8 tot 32 VDC Max. 11,2 W Stroomaansluiting 4-pins verwijderbaar klemmenblok 2 pinnen voor stroomtoevoer 2 pinnen voor droge relaisuitgang (max. 0,5 A / 24 VDC) WLAN 2,4 GHz Maximaal RF zendvermogen: IEEE 802.11 b: 23 dBm ±2 dB IEEE 802.11g: 24 dBm ±2 dB IEEE 802.11n: 24 dBm ±2 dB WLAN 5 GHz Maximaal RF zendvermogen: IEEE 802.11a: 23 dBm ±2 dB IEEE 802.11n/ac: 22 dBm ±2 dB LTE Maximaal RF zendvermogen: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12: +23 dBm ±2 dB Afmetingen 200 x 51 x 126 mm (B x H x D) zonder DIN-bevestigingsklem Gewicht 1400 g Materiaal behuizing Staal en aluminium IP- beschermingsklasse IP31 Bevestiging Paneelmontage of DIN-railmontage Bedrijfstemperatuur -40°C tot 75°C, 5 – 95% niet-condenserend Aanvullende technische gegevens en informatie met betrekking tot de installatie en het gebruik van dit product kunt u vinden op www.anybus.com/, Specificații tehnice Coduri pentru comenzi AWB5121 (router WLAN) AWB5221 (router LTE) Conector Ethernet RJ45 Alimentare cu energie 8 - 32 V c.c.

 CERTIFICATE OF COMPLIANCE Certificate Number E514162 Report Reference E514162-20200403 Issue Date 2022-MARCH-29 Bruce Mahrenholz, Director North American Certification Program UL LLC Any information and documentation involving UL Mark services are provided on behalf of UL LLC (UL) or any authorized licensee of UL., For questions, please contact a local UL Customer Service Representative at http://ul.com/aboutul/locations/ Page 1 of 2 Issued to: HMS INDUSTRIAL NETWORKS AB Box 4126 Halmstad SE 300 04 This certificate confirms that representative samples of AUDIO/VIDEO, INFORMATION AND COMMUNICATION TECHNOLOGY EQUIPMENT See addendum page for Models/Product Have been investigated by UL in accordance with the Standard(s) indicated on this Certificate., Only those products bearing the UL Mark should be considered as being UL Certified and covered under UL’s Follow-Up Services., CERTIFICATE OF COMPLIANCE Certificate Number E514162 Report Reference E514162-20200403 Issue Date 2022-MARCH-29 Bruce Mahrenholz, Director North American Certification Program UL LLC Any information and documentation involving UL Mark services are provided on behalf of UL LLC (UL) or any authorized licensee of UL., Industrial Secure Routing Switch AWB5020 AWB5121 AWB5221 AWB5321 Industrial Secure Routing Switch AWB5141 AWB5142 AWB5005

 EU - Declaration of Conformity The Manufacturer: HMS Industrial Networks AB Stationsgatan 37 SE-302 50 Halmstad Sweden www.hms.se Declares under our sole responsibility that the product: are hereby declared in conformity with essentials requirements of the following EU Directive(s) when installed accordingly with the installation instructions: 2014/53/EU RE-Directive (Radio Equipment Directive) 2011/65/EU RoHS Directive with amendment 2015/863 References to relevant harmonized standards used or references to the specifications in relation to which conformity is declared: Conformity to standards: Effective use of frequency spectrum (Art. 3.2) EN 300 328 V2.2.2 EN 301 893 V2.1.1 EN 302 502 V2.1.1 EMC (Art. 3.1 b) EN 61000-6-2:2005 EN 61000-4-2:2009 EN 61000-4-3:2006 + A1:2008 + A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2014 + A1:2017 EN 61000-4-6:2014 EN 61000-4-8:2010 EN 61000-6-4:2007 + A1:2011 EN 55032:2015 EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.0 (Draft) EN, 50121-1:2017 EN 50121-4:2019 Health and safety (Art. 3.1 a) EN 62368-1:2014 + A11:2017 EN 62311:2008 (WiFi) Halmstad, October 12th, 2021 Staffan Dahlström, Chief Executive Officer _________________________________ Type of Product: Model: Options: Wireless router AWB5 AWB5121

 UK - Declaration of Conformity The Authorised Representative: The Manufacturer: HMS Industrial Networks Ltd The Venture Centre, Sir William Lyons Road Warwick University Science Park Coventry CV4 7EZ, UK HMS Industrial Networks AB Stationsgatan 37 SE-302 50 Halmstad, Sweden www.hms.se Declares under our sole responsibility that the product: is hereby declared in conformity with essentials requirements of the following UK Legislation(s) when installed accordingly with the installation instructions: • The Radio Equipment Regulations 2017 • The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 References to relevant designated standards used or references to the specifications in relation to which conformity is declared: Conformity to standards: Effective use of frequency spectrum (Reg. 6.2) EN 300 328 V2.2.2 EN 301 893 V2.1.1 EN 302 502 V2.1.1 EMC (Reg. 6.1 b) EN 61000-6-2:2005 EN 61000-4-2:2009 EN 61000, -4-3:2006 + A1:2008 + A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2014 + A1:2017 EN 61000-4-6:2014 EN 61000-4-8:2010 EN 61000-6-4:2007 + A1:2011 EN 55032:2015 EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.0 (Draft) EN 50121-1:2017 EN 50121-4:2019 Health and safety (Reg. 6.1 a) EN 62368-1:2014 + A11:2017 EN 62311:2008 (WiFi) Coventry, October 12th, 2021 David Bradley-Folley, General Manager at HMS Industrial Networks Ltd _________________________________ Type of Product: Model: Options: Wireless router AWB5 AWB5121

Common limitations for wired connections and wireless alternatives i n industrial automation • In industrial data communication, situations can arise where the network cable is a limiting factor • Limitations m ay depend on whether the device to be connected is in motion, is in a hard -to-reach location, or that it simply becomes too costly or impractical to connect via cable Mind the gap • In many cases, it is possible to solve these problems by e stablishing a wireless bridge • For a wireless connection to be a good alternative, it needs to r e tain as m uch as possible of the characteristics of a wired connection: Wireless connections can solve these problems Easy to install and use Cost-efficient and reliable Transparent real-time-communication • Cables and connectors can be damaged by the wear and tear of machines in m otion or if they are exposed to strong v ibrations, shocks and blows • For example, the cables of an industrial r obot will wear out over time, and m ay fail causing downtime and production standstill • Industrial conveyor belts are another e xample where constant strong v ibrations significantly affect the function of cables and connectors Uptime and reliability • Physical access to the device to be connected can be an issue as it m ay be in motion, it m ay be in a hard - to-reach or potentially dangerous location, or it needs to be accessible from other m obile devices such as a handheld HMI or a laptop • For example, industries that handle a lot of raw materials m ay need to take r e gular readings of levels, quality, and m ore., Manual r e ading can be a safety r isk, time-consuming and impractical • The increase of IIoT where continuous m achine data is interpreted for optimized operation, predictive maintenance is driving the need to connect more things, r e gardless of what the conditions look like Easy access to data • Installing cable is e xpensive and m ay in some cases not e v e n be a feasible option • Installing new cable is a larger project and take s longer than e stablishing a wireless connection • Cost increases with scale where each node will drive additional cost for wiring, associated labor and m aintenance Cost-efficiency Anybus Wireless p o rtfolio The Anybus Wireless family The Anybus Wireless family The Anybus Wireless family The Anybus Wireless Family The Anybus Wireless family • Adds wireless connectivity • Hole mounted (M50) • Unique form factor • IP66/IP67 The Anybus Wireless Bolt • Bolt Ethernet • Ethernet → WiFi/BT • RJ45, PoE • Bolt CAN •, CAN → WiFi/BT • 18-pin • Bolt Serial • Serial → WiFi/BT • 18-pin • Bolt IoT • Ethernet → NB IoT/LTE-M • RJ45, PoE • Bolt LTE • Ethernet → LTE • RJ45, PoE Product versions • Surface mounted • Ethernet → WiFi/BT • M12 connectors • Physical UI • Cable r e placement The Anybus Wireless Bridge • Strong wireless platform • Hole mounted (M50) • Unique form factor • IP66 • WDS Bridging • WPA3 Enterprise security The Anybus Wireless Bolt II Bolt and Bridge accessories Infrastructure Products • Unmanaged L2 (AWB5001) • Managed L2 with PoE (AWB5005) • Managed L3 (AWB5011) Anybus Switches Unmanaged L2 switch • Full speed on all ports Non-blocking • Reduced environmental impact Ultra low power • Avoid single points of failure Dual PSU support • QoS/VLAN compatibility Tagged frame support Managed L2 PoE switch •One -cable connection PoE •4k video etc. 10 x Gbit ports •Fiber conversion •Galvanic separation 2 x SFP Ports, •Easy trouble shooting Port mirroring •Network Segmentation VLAN Managed L3 switch •Connect multiple LANs Routing •Protection against unwanted traffic L3 Filtering •4k video etc. 12 x Gbit ports •Fiber conversion •Galvanic separation 4 x SFP Ports •Easy trouble shooting Port mirroring •Network Segmentation VLAN • LTE Router (AWB5221) • Wi-Fi Router (AWB5121) Anybus Routers Anybus Access Points • IP30 (AWB5141) • DIN rail • IP67 (AWB5142) • Pole mount Use cases Industrial Bluetooth use case Industrial Wifi use case LTE 4G use case AGVs in greenhouse Anybus Wireless Bolts • MAC clone • AGV control Anybus Managed L2 PoE switch • Fiber connection Anybus IP30 AP • PoE powered IP cam • PoE powered Anybus IP67 AP • PoE powered Case Story: www.anybus.com/about-us/case- studies/infuser-disinfection -robot-has-robust- wireless-access-via-anybus-wireless-bolt Industrial desinfection robot using Bolt Athlete test equipment using Anybus Wireless

If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. 2.2 General Safety Caution Ensure that the power supply is turned off before connecting it to the equipment., This equipment contains parts that can be damaged by electrostatic discharge (ESD)., Press Submit button for the setting to take effect., Use a pointed object (such as a ballpoint pen) to press and hold the reset button for >10 seconds., future use WLAN Green On AP mode Green blinking STA connected Off STA disconnected Radio disabled Anybus ® Industrial WLAN/LTE Router Startup Guide SP2557 1.11 en-US Technical Data 24 (26) 7 Technical Data 7.1 Technical Specifications Order Codes AWB5121 (WLAN Router) AWB5221 (LTE Router) Cellular standards LTE Cat.4 2x2 MIMO, 4G/3G/2G Fall Back LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/ B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 Ethernet Ports LAN: 8 x 10/100Base-TX RJ45, Auto Negotiation, Auto MDI/ MDI-X WAN: 1 x 100/1000Base-T RJ45, Auto Negotiation, Auto MDI/MDI-X Operating temperature -40°C to 75°C , 5%-95% Non- Condensing Data speeds LTE: GPRS: DL: max. 85.6 kbps, UL: max. 85.6 kbps EDGE: DL: max. 236.8 kbps, UL: max. 236.8 kbps HSPA: DL: max. 42 Mbps, UL: max. 5.76 Mbps LTE-FDD Cat.4: DL: max. 150 Mbps, UL: max. 50 Mbps, 2x2 DL MIMO LTE-TDD Cat.4: DL: max. 130 Mbps, UL: max. 35 Mbps, 2x2 DL MIMO WLAN: 802.11ac

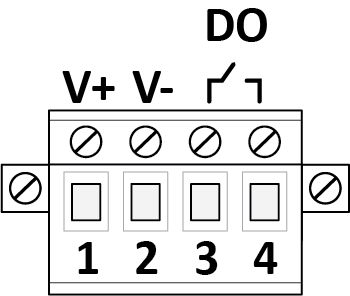

f99c2d05-22ce-6706-92f4-ff00001bbfd4---awb5121-attach-terminal-block---awb5121-attach-terminal-block

Port Function Speed 1–8 LAN 10/100 Mbit/s 9 Router mode: WAN Bridge mode: LAN 100 Mbit/s or 1 Gbit/s Fig. 5 WAN port in router mode Pin 10/100 Mbit/s 1 Gbit/s 1 TD+ DA+ 2 TD- DA- 3 RD+ DB+ 4 (reserved) DC+ 5 (reserved) DC- 6 RD- DB- 7 (reserved) DD+ 8 (reserved) DD- Industrial WLAN/LTE Router User Manual SCM-1202-150 1.10 en-US Installation 9 (42) 3.5 Antennas Fig. 6 Antenna connectors AWB5121 (WLAN) A WLAN 1 B WLAN 2 AWB5221 (LTE) C GNSS D Cellular 1/LTE-Main E Cellular 2/LTE-Aux If only one antenna is used for WLAN, the antenna must be connected to WLAN 1., A lower or upper extension channel will be set by the router based on the selected control channel., Default: 2346 (bytes) Beacon Interval The interval between broadcast packets., DES: Data Encryption Standard, applies a 58-bit key to each 64-bit block of data., DES: Data Encryption Standard, applies a 58-bit key to each 64-bit block of data.
