ABC3028-A, Anybus Communicator – Serial Master to Modbus TCP slaveABC3028-AThe Anybus Communicator Serial Master to Modbus TCP enables you to connect any RS-232/485 device or equipment to Modbus TCP control systems., Anybus Communicators ensure reliable, secure, and high-speed data transfers between different industrial networks., Thanks to our intuitive web-based user interface, they're also incredibly easy to use.Intuitive user interfaceCybersecurityHigh performanceOptimized hardware designUse the intuitive web-based user interface to easily configure the Communicator via the drag-and-drop functionality or to analyze live data, export log files, and generate support packages.The secure boot protects against malware, while a security switch locks configurations to prevent unauthorized changes., Ports used in production are disabled to add another layer of security.Powered by the award-winning NP40 network processor and high-end components, the Communicator meets the constantly growing demand for more data to be transferred faster.The Communicator has forward-facing ports and is designed for IP20 and DIN-rail mounting, enabling you to install it with ease, close to connected devices, thereby reducing wiring requirements.modbusrtu;modbustcp;rs232;rs232485;rs485;serial, ab0afe683b6442e380bc7f7ba77b9ce9, Anybus, Anybus Communicator – Serial Master to Modbus TCP slave

 ChangeLog - ABC3028 ABC3028 - 1.12.01 Added possiblity to change order of nodes Category Description Comment Bug fix Byte swapping sometimes not applied Fixed bug where byte swap was not always effective., ABC3028 - 1.11.01 Category Description Comment Bug fix Don’t mix code and data., Improved serial stability ChangeLog - ABC3028 2 HMS Industrial Networks Bug fix Fixed error if a message containing only 0xFF data is received on the Modbus/TCP port the module stops responding to Modbus/TCP messages., ABC3028 - 1.08.01 Support hardware with either Broadcom and Texas PHY Category Description Comment Bug fix Possible NULL pointer access in timer handling Increased stability under extreme interrupt load Bug fix ACD state could be stuck in conflict even after IP is recovered Fixed bug that could keep the Ethernet connection in conflicted state after Automatic Conflict Detection (checking if IP-address is already taken) was resolved Bug fix Navigation bar and mobile mode Navigation bar in web-gui is now automatically hidden on navigation in mobile mode Improvement Let CPU sleep during NULL tasks Reduces the power consumtion of the product ABC3028 - 1.07.02 Category Description Comment ChangeLog - ABC3028 2024-10-22 3 HMS Industrial Networks Bug fix Disabled timeout = 0 was not allowed during import Allows the user to import a configuration with timeout = 0 without issues ABC3028 - 1.07.01 Category Description Comment Bug fix Full-duplex RS232 communication was not working, ChangeLog - ABC3028 6 HMS Industrial Networks New feature Configurable byte swap / endian conversion Allows the user to use different byte orders on serial network and the slave network New feature Standard Modbus RTU, RS232/RS485 support Allows the user to use the gateway as a Modbus RTU Client over RS232 and RS485 New feature Serial data monitor Allows the user to montor the serial traffic on RS232/RS485 New feature Update mode "Cyclic" Allows the user to set up a transaction to be executed cyclically ChangeLog - ABC3028 2024-10-22 7 HMS Industrial Networks, ab0afe683b6442e380bc7f7ba77b9ce9, Anybus

 ChangeLog - ABC3028 ABC3028 - 1.09.01 Added support for: Large serial frame, large variable data object, start / end characters, bugfixes Category Description Comment Bug fix Fixed issue where an invalid message received on the modbus port could cause the module to stop responding to modbus queries., Improved error management Table of Contents ABC3028 - 1.09.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 ABC3028 - 1.08.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 ABC3028 - 1.07.02 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ABC3028 - 1.07.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ABC3028 - 1.06.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ., ABC3028 - 1.08.01 Support hardware with either Broadcom and Texas PHY Category Description Comment Bug fix Possible NULL pointer access in timer handling Increased stability under extreme interrupt load Bug fix ACD state could be stuck in conflict even after IP is recovered Fixed bug that could keep the Ethernet connection in conflicted state after Automatic Conflict Detection (checking if IP-address is already taken) was resolved Bug fix Navigation bar and mobile mode Navigation bar in web-gui is now automatically hidden on navigation in mobile mode Improveme nt Let CPU sleep during NULL tasks Reduces the power consumtion of the product ChangeLog - ABC3028 2 HMS Industrial Networks ABC3028 - 1.07.02 Category Description Comment Bug fix Disabled timeout = 0 was not allowed during import Allows the user to import a configuration with timeout = 0 without issues ABC3028 - 1.07.01 Category Description Comment Bug fix Full-duplex RS232 communication was not working, ABC3028 - 1.03.01 Category Description Comment Bug fix Turnaround delay could not be set to 0 Turnaround delay could not be set to 0 (disabled), it is now possible ChangeLog - ABC3028 4 HMS Industrial Networks Bug fix Various web bug fixes Various bug fixes in the user interface New feature Unlocked article ABC3090 support added Allows the user to use SER-Ethernet/IP, S E R - P ROFINET, SER-Modbus TCP Firmware i ABC3090 New feature General data area Allows the user to store data in a general data area without mapping to slave network for, ex., the user to enable/disable serial nodes using a register from the slave network New feature Broadcast node Allows the user to configure node 0 as a broadcast node New feature Added ADD and XOR checksums Allows the user to use ADD and XOR checksums and one’s and two’s complement on all checksums types New feature Acknowledge and negative acknowledge Allows the user to map a positive feedback acknowledge to a value and a separate negative acknowledge feedback to a value ABC3028 - 1.02.01 Modbus RTU Master - Modbus TCP - Full Anybus Communicator replacement Category Description Comment New feature Changed minimum update time for serial transactions to 3 ms Allows the user to set minimum update time for serial transactions to 3 ms instead of 10ms ChangeLog - ABC3028 2023-05-11 5 HMS Industrial Networks ABC3028 - 1.01.01 Endian conversion, bug fixes and GUI Category Description Comment Bug fix The serial log rows are colored to indicate direction Bug fix The, ab0afe683b6442e380bc7f7ba77b9ce9, Anybus

 ChangeLog - ABC3028 ABC3028 - 1.08.01 Support hardware with either Broadcom and Texas PHY Category Description Comment Bug fix Possible NULL pointer access in timer handling Increased stability under extreme interrupt load Bug fix ACD state could be stuck in conflict even after IP is recovered Fixed bug that could keep the Ethernet connection in conflicted state after Automatic Conflict Detection (checking if IP-address is already taken) was resolved Bug fix Navigation bar and mobile mode Navigation bar in web-gui is now automatically hidden on navigation in mobile mode Improvement Let CPU sleep during NULL tasks Reduces the power consumtion of the product ABC3028 - 1.07.02 Category Description Comment Bug fix Disabled timeout = 0 was not allowed during import Allows the user to import a configuration with timeout = 0 without issues ABC3028 - 1.07.01 Category Description Comment Bug fix Full-duplex RS232 communication was not working in some HDL-releases Full-duplex, for RS232 is now working in all HDL-releases New feature Disabled timeout = 0 (checkbox in gui) Allows the user to disable timeout using a checkbox, leading to set the node always online Table of Contents ABC3028 - 1.08.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 ABC3028 - 1.07.02 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 ABC3028 - 1.07.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 ABC3028 - 1.06.01 . . . . . . . . . . . . . . . . . . . . . . . . ., . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ABC3028 - 1.02.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ABC3028 - 1.01.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 ABC3028 - 1.00.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 ChangeLog - ABC3028 1 HMS Industrial Networks ABC3028 - 1.06.01 Category Description Comment Bug fix RS485 driver remains active up to 1 character, after end of frame RS485 driver remains active up to 1 character after end of frame, causing collision if a modbus slave device responds quicker than the specified 3.5 characters delay required by the modbus specification Bug fix Hostname change require powercycle on cfg port with SHICP The Hostname settings were not applied correctly when modified using HMS Ipconfig Bug fix DNS1 and DNS2 address was always 0.0.0.0 after power cycle New feature Process data monitor Allows the user to monitor the traffic between the serial and slave network in both directions including byte swap / endian conversion ABC3028 - 1.05.01 Support hardware without unused security chip ABC3028 - 1.04.02 Category Description Comment Bug fix Incorrect gateway configuration version handling fixed ABC3028 - 1.04.01 Category Description Comment Bug fix Security LED did not operate correcty after startup Fixed an issue causing the security LED to indicate the wrong state Improvement Support hardware, /disable serial nodes using a register from the slave network New feature Broadcast node Allows the user to configure node 0 as a broadcast node New feature Added ADD and XOR checksums Allows the user to use ADD and XOR checksums and one’s and two’s complement on all checksums types New feature Acknowledge and negative acknowledge Allows the user to map a positive feedback acknowledge to a value and a separate negative acknowledge feedback to a value ABC3028 - 1.02.01 Modbus RTU Master - Modbus TCP - Full Anybus Communicator replacement Category Description Comment New feature Changed minimum update time for serial transactions to 3 ms Allows the user to set minimum update time for serial transactions to 3 ms instead of 10ms ChangeLog - ABC3028 3 HMS Industrial Networks ABC3028 - 1.01.01 Endian conversion, bug fixes and GUI Category Description Comment Bug fix The serial log rows are colored to indicate direction Bug fix The nodes in the "Nodes & commands" list and, ab0afe683b6442e380bc7f7ba77b9ce9, Anybus

 ChangeLog - ABC3028 ABC3028 - 1.10.01 Added support for Modbus TCP Legacy mode Category Description Comment Bug fix Remove the unused "Representation" for the Checksum Removed the unused "Representation" field of the Checksum frame object., Improved Modbus TCP Server stability Table of Contents ABC3028 - 1.10.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 ABC3028 - 1.09.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 ABC3028 - 1.08.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ABC3028 - 1.07.02 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ABC3028 - 1.07.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ., . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 ABC3028 - 1.02.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 ABC3028 - 1.01.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 ABC3028 - 1.00.01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 ChangeLog - ABC3028 2023-07-18 1 HMS Industrial Networks Bug fix Old address is defended after DHCP has been enabled., ChangeLog - ABC3028 2 HMS Industrial Networks New Feature Frame Start / End Characters., nodes in the "Nodes & commands" list and in the home page status overview are sorted by their addresses Bug fix Fixed error when duplicating transactions that cannot be fully mapped New feature Frame objects available in the I/O Map The user can see different frame objects in the I/O Map ChangeLog - ABC3028 6 HMS Industrial Networks ABC3028 - 1.00.01 Modbus RTU Master - Modbus TCP - MVP Category Description Comment Bug fix Old address is defended after DHCP has been enabled., ab0afe683b6442e380bc7f7ba77b9ce9, Anybus

 Date of Publication: 2021-10-01 Head office: HMS Industrial Networks AB | Stationsgatan 37, Box 4126, SE-300 04 HALMSTAD |www.hms-networks.com Phone: +46 35 17 29 00 | Fax: +46 35 17 29 09 | Mailing address: P.O BOX 4126, SE 300 04 HALMSTAD Product Change Notification Dear Partner, Anybus appreciates your daily involvement and your long-term loyalty., Article number Description Replacement product AB7000 AB7007 AB7013 AB7028 AB7072 Anybus Communicator PROFIBUS DP-V0 Anybus Communicator EtherNet/IP Anybus Communicator PROFINET IO Anybus Communicator Ethernet Modbus-TCP Anybus Communicator EtherNet/IP or Modbus-TCP 2-port ABC3000 ABC3007 / ABC3090 ABC3013 / ABC3090 ABC3028 / ABC3090 ABC3007 / ABC3028 / ABC3090 Key Milestones 2022-01-01 2023-01-01 2023-09-01 2024-01-01 The Communicator Classic products listed above will be replaced by the new Communicator and enter lifecycle phase limited., Prices will be raised, lead times will increase, and no further enhancements will be done., The products listed above will enter lifecycle phase Exit Last time buy for the products listed above The products listed above will be Obsolete Reason for Change The new Communicator has been developed to meet customer requirements for enhanced performance, usability and security and will replace the products listed above., Lifecycle policy: https://www.anybus.com/support/anybus-product-life-cycle _______________________________ Fredrik Brynolf Product Manager Anybus Gateways, PCN 211001 - Anybus Communicators Lifecycle statement LTB, ab0afe683b6442e380bc7f7ba77b9ce9

  This article describes the difference about Address format in Anybus Communicator transaction setting.  , APPLICABLE PRODUCTS   ABC3013, ABC3061, ABC3000, ABC3007, ABC3028   QUESTION There are 4 options in Address format, what is the difference between them?  , ANSWER The 4 options in Address format represent the register address format, no matter which one is selected, it represents the same register address, but the format displayed in the attributes on the right of the transacton is different., For example, in the Read Holding Registers transaction, set the starting register address to 0: (1) Address format select "Address (0,1,2,...) ", the transaction starting register address is displayed as   "Address 0", They all mean the first holding register, and you can use any one as you like.      , What‘s the difference about Address format in Anybus Communicator transaction setting, ab0afe683b6442e380bc7f7ba77b9ce9

This article explains the how to use the Anybus Address mode in the Anybus Communicator - Modbus TCP server., APPLICABLE PRODUCTS ABC3028 ABC3128 ABC4011 ABC4016 ABC4017 ABC4018 PRE-REQUISITES A Modbus TCP Client Anybus Communicator with a Modbus TCP server interface HMS IPConfig QUESTION What is the default addressing mode in the Anybus Communicator - Modbus TCP server, and how to use the "Anybus Address Mode"?  , ANSWER Modbus Address Mode By default, the mode used for addressing in the Anybus Communicator is the Modbus Address Mode., This is the mode that is active by default when you don't enable the "Anybus Address Mode".  , Anybus Address Mode (legacy mode) This alternative addressing mode can be enabled under the Advanced settings tab on the communicators web interface.  , How to use the Anybus Address Mode in the new Anybus Communicator - Modbus TCP Server?, ab0afe683b6442e380bc7f7ba77b9ce9

This article explains why you could be getting a timeout error when you try to communicate with an Anybus Communicator Modbus TCP server., APPLICABLE PRODUCTS ABC3028 ABC3128 ABC4011 ABC4016 ABC4017 ABC4018 PRE-REQUISITES A Modbus TCP Client Anybus Communicator with a Modbus TCP server interface HMS IPConfig PROBLEM DESCRIPTION Whenever you try to establish a communication between your Modbus TCP Client PLC engineering tool or your Modbus TCP Client simulation tool, you get a timeout error.  , RESOLUTION If you have an Anybus Communicator with a Modbus TCP server interface, and you get a timeout error each time you try to communicate with it using your Modbus TCP client, then you should check the IP configuration of the Anybus Communicator., As you know, on the Anybus Communicator, apart from the two fieldbus/Industrial Ethernet ports, you also have a Config port, reserved for accessing the web interface for the configuration.  , We have the same IP address assigned to the Config and Modbus TCP server interfaces   The result is a timeout error each time we try to establish a Modbus TCP communication     Let's now assign a different IP address to the Modbus TCP server interface   We can see that the communication is now successful, Timeout error: I cannot communicate with my Anybus Communicator - Modbus TCP Server, ab0afe683b6442e380bc7f7ba77b9ce9

Now that’s possible with legacy mode for PROFINET, PROFIBUS and Modbus TCP!  , No need to change GSDML/GSD file and you can continue to use Anybus addressing mode on Modbus TCP., Hereby we inform you about the release of updated firmware and user interface for Anybus Communicator.  , Affected products:                       ABC3000, Serial Master – PROFIBUS IO Device ABC3013, Serial Master – PROFINET IO Device ABC3028, Serial Master – Modbus TCP Server ABC3090, Serial Master – Common Ethernet ABC4011, EtherNet/IP adapter - Modbus TCP server ABC4013, PROFINET IO device - EtherNet/IP adapter ABC4014, EtherNet/IP adapter - PROFIBUS DP device ABC4016, Modbus TCP server - EtherCAT slave ABC4017, PROFINET IO device - Modbus TCP server ABC4018, Modbus TCP server - PROFIBUS DP device ABC4020, PROFINET IO device - EtherCAT slave ABC4021, EtherCAT slave - PROFIBUS DP device ABC4023, PROFINET IO device  - PROFIBUS DP device ABC4090, Common ethernet - Common ethernet ABC4091, Common ethernet - PROFIBUS DP device Description:  The release(s) contains the following features and bugfixes: Availability: Firmware package(s) will be available on the product support page along with a change log., Updated manuals will be available soon.    , ab0afe683b6442e380bc7f7ba77b9ce9

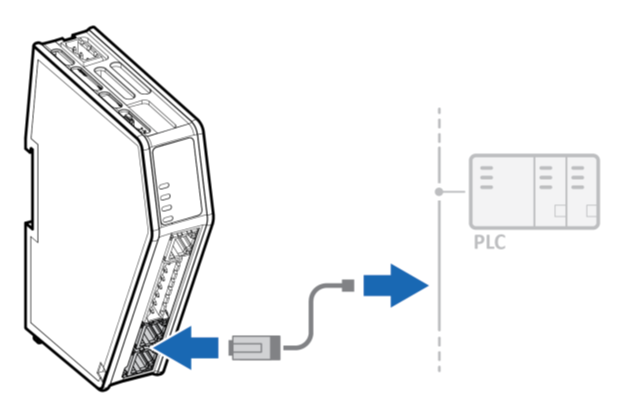

Those responsible for the use of the product must acquire sufficient knowledge in order to ensure that the product is used correctly in their specific application and that the application meets all performance and safety requirements including any applicable laws, regulations, codes and standards., TIP Helpful advice and suggestions. 1.3., NOTE As an alternative, you can set a static IP address within the same IP address range as the Communicator IP address on the computer accessing the Communicator built-in web interface., To be able to access the Communicator built-in web interface you may need to adjust the IP settings, choose one of the following methods: Option 1 | Set a static IP address on the PC On the PC accessing the Communicator built-in web interface, set a static IP address within the same IP address range as the Communicator IP address., Te c h n i cal Specifications Article identification ABC3028 Configuration connector RJ45 Communication connector RJ45 x 2 Serial connector 7-pin screw connector Power connector 3-pin screw connector Power supply 12-30 VDC, Reverse voltage protection and short circuit protection Power consumption Typical: 90 mA @ 24 V (2.2 W) Max: 3 W Storage temperature -40 to +85 °C Operating temperature -25 to +70 °C Humidity EN 600068-2-78: Damp heat, +40°C, 93% humidity for 4 days EN 60068-2-30: Damp heat, +25°C – +55°C, 95% RH, 2 cycles Vibration See datasheet Housing material Plastic, See datasheet for details Protection class IP20 Product weight 150 g Dimensions 27 x 144 x 98 mm (W x H x D) with connectors included Mounting DIN-rail Anybus ® Communicator ™ - Modbus TCP to Modbus RTU/Serial Technical Data Page 24 of 28 SP2860 Version 1.12 8., Startup Guide - Anybus Communicator Modbus TCP, ab0afe683b6442e380bc7f7ba77b9ce9, Anybus

bd6fde05-22ce-6706-92f4-ff00001bbfd4---ABC3028-01---, ab0afe683b6442e380bc7f7ba77b9ce9

AB6429-B YES 8a893fcc-6d16-4052-9b46-fb742b8774e8 AB6432-B YES 0605d16e-a8ae-4c98-82c7-07511a7bf719 AB6433-B YES c31048d1-1667-4f51-b7de-28043d04446a AB6434-B NO AB6446-B YES 9ea36ee6-62a4-49ee-9977-8fc955a2959c AB6455-B NO AB6476-B YES 5a5257c7-27fb-48f4-8c96-1fb3b6f07488 AB6484-B YES 914bec82-6a6d-4e6c-b3cd-c8694b6155d5 AB6487-B YES d9e4f04e-7617-4d4b-8507-58d6bfaf0c49 AB6506-B NO AB6507-B NO AB6511-C NO AB6517-B NO AB6518-B YES 73a30ade-8946-4331-b575-e1580f96398f AB6520-B YES cc7746fa-3e69-478f-894b-8f5010672c66 AB6526-B YES 1a8be2f7-c996-4cff-8df7-828463d81165 AB6600-C YES d99df5b7-25f2-4fe6-a119-980e6f62adfc AB6601-C YES 0b290aab-e272-4f37-81f0-cb5f1552bd35 AB6602-C NO AB6603-E NO AB6604-C NO AB6604-D NO AB6604-D-158 NO AB6604-E NO AB6605-C NO AB6605-D NO AB6605-D-205 NO AB6605-D-206 NO AB6605-E NO AB6606-C NO AB6607-C NO AB6607-D-224 NO AB6607-E NO AB6609-B NO AB6610-C NO AB6610-D NO AB6610-E NO AB6611-E NO AB6612-E NO AB6613-C YES f62f55f7, -a4b1-48e8-9c74-9c35d819fdba AB6634-E NO AB6635-C NO AB6635-D NO AB6635-E NO Head office: HMS Industrial Networks AB | Stationsgatan 37, Box 4126, SE-300 04 HALMSTAD |www.hms-networks.com Phone: +46 35 17 29 00 | Fax: +46 35 17 29 09 | Mailing address: P.O BOX 4126, SE 300 04 HALMSTAD AB6636-C NO AB6637-E NO AB6638-E NO AB6639-E NO AB6663-B YES 0a5d0e63-f0b7-4698-b5f4-b2ab78edfe77 AB6664-B YES ff071de6-84a1-4833-9add-3658f5e2220b AB6666-B NO AB6668-B NO AB6670-C NO AB6671-C NO AB6672-C NO AB6673-C NO AB6674-C NO AB6674-D NO AB6675-C NO AB6675-D NO AB6677-C NO AB6677-D NO AB6680-C NO AB6681-C NO AB6700-C YES 170883ac-ce99-4a81-baf9-253bb9367db1 AB6701-C YES f3c679b2-5ee7-41a7-8415-59ed91f0a5cb AB6703-C NO AB6703-D NO AB6703-E NO AB6704-C NO AB6704-D NO AB6704-E NO AB6705-C NO AB6705-D NO AB6705-E NO AB6707-C NO AB6707-D NO AB6707-D-224 NO AB6707-E NO AB6709-B NO AB6709-B-116 NO AB6709-C NO AB6710-E NO AB6711-E NO AB6712-E NO AB6734, -E NO AB6735-E NO AB6737-E NO Head office: HMS Industrial Networks AB | Stationsgatan 37, Box 4126, SE-300 04 HALMSTAD |www.hms-networks.com Phone: +46 35 17 29 00 | Fax: +46 35 17 29 09 | Mailing address: P.O BOX 4126, SE 300 04 HALMSTAD AB6738-E NO AB6739-E NO AB6742-C YES d0e146f8-9bea-4f80-9ad7-8e0c0eef1922 AB6776-C-112 NO AB6781-C YES a998b24c-516f-4816-aec5-d185ceb78c23 AB6787-C-136 NO AB6790-C NO AB6791-C NO AB6792-C NO AB6794-C NO AB6799-C NO AB6826-C YES 7328cdd8-9411-4a6d-87f8-cf0f3270df48 AB6901-C NO AB6904-C YES ad4f724a-3b23-411b-b243-0723c8d286a0 AB6905-C NO AB6906-C NO AB6907-C YES ec8b44f3-df6b-4d2e-a5be-8584281f42fb AB6908-C NO AB6909-C YES a10fd425-21eb-48ba-a297-5f02b8e5ab0e AB6911-C YES 98d6b4fc-293b-4685-8c44-4985f3a0c83e AB6915-C NO AB6916-D-224 NO AB6928-C NO AB6929-C NO AB6930-C NO AB6938-C-139 NO AB6941-C NO AB6942-C NO AB6946-C NO AB6949-C YES ed975b2e-a338-42c3-8cf1-97816d8e6b3e AB6957-C NO AB6960-C YES 23922b73-ffb4-45d9-ba37, -0559-49d6-bbb0-bf92d3e56287 AB9006-B YES c8c72884-e078-463c-bb57-2e8c182439af AB9007-B YES da342e6d-3633-4c41-b0af-c1c9729812ef AB9008-B YES 95667a98-c96e-45c1-b9b0-6445045d62f1 AB9077-C YES 2b397200-5848-432d-af1f-aa55e3b6bd20 AB9091-C YES d31fe825-f5de-4627-b478-d6adc3ad2f52 AB9092-C YES 52d64023-87fb-407a-8433-520111eec8bc ABC03011-A YES 7363c868-36a0-4176-89b8-d5044877de94 ABC3000-A ABC06011-A ABC06010-A YES ca0a6871-6ce9-4514-8246-7a6b68ff183d ABC3090-A YES 424429b2-8d9c-4336-8536-1dc83c0b04c4 ABC3090-A ABC3028-A ABC3013-A ABC3007-A ABC3061-A ABC05010-A ABC03010-A ABC05011-A ABC05012-A ABC05013-A YES 50ee6ba8-3e89-46a0-9f43-6ce9bfb3b186 ABC3100-A ABC3200-A ABC3300-A ABC4021-A ABC4018-A ABC4023-A ABC4091-A ABC4014-A YES 326c8fb7-fda6-4779-8dfb-d94af8c8f755 Head office: HMS Industrial Networks AB | Stationsgatan 37, Box 4126, SE-300 04 HALMSTAD |www.hms-networks.com Phone: +46 35 17 29 00 | Fax: +46 35 17 29 09 | Mailing address: P.O BOX 4126, , SE 300 04 HALMSTAD ABC04005-A ABC3107-A ABC3113-A ABC3128-A ABC3161-A ABC3190-A ABC3207-A ABC3213-A ABC3228-A ABC3261-A ABC3290-A ABC3307-A ABC3313-A ABC3328-A ABC3361-A ABC3390-A ABC4010-A ABC4011-A ABC4012-A ABC4013-A ABC4016-A ABC4017-A ABC4020-A ABC4022-A ABC4090-A YES 5b56d01e-c6d1-4c97-a408-7513cdf8e4bd ABE04001-B YES b42e6749-74a6-49a0-be53-0d27c24af8a3 ABE04005-B YES 6944540f-00df-4cd3-b461-2f92a904764d ABE04020-B YES d5cc4c0b-1e7a-483a-a73d-3135389f4e11 ABE04032-B YES 9fbf1997-ad58-4aa2-925f-6088b8415181 ABE04044-B YES 304584fd-b964-4342-a9af-cd22c296b917 ABE04050-B YES b346b791-c393-4ce1-8e5b-c120ff65333d ABE04053-B YES 447e72cd-5bfa-4410-877a-aeb96fd7a390 ABE04062-B YES 813a1316-0e78-4dd7-bcd6-62cce0410a1b ABE04063-B YES 6317513b-cf97-4bbf-a358-52a46572a50b ABE04225-B YES d7b69600-1fc3-413a-98ca-92fef0eb9878 ABE04341-B YES 456fd2e1-1b82-4103-8e2e-4a10602eb3da ABE71105-B YES e1fda975-7aa7-4d4b-9603-114a0cd17522 ABE71106-B YES f0fada78-3c12, ab0afe683b6442e380bc7f7ba77b9ce9

NOTE As an alternative, you can set a static IP address within the same IP address range as the Communicator IP address on the computer accessing the Communicator built-in web interface., In the Request field there are three Constants, a Node address and a Checksum field., In the Response field there are three Constants, a Node address, a Data field and a Checksum field., The address acts as an address to the data position, where the data is read from or written to., Te c h n i cal Specifications Article identification ABC3028 Configuration connector RJ45 Communication connector RJ45 x 2 Serial connector 7-pin screw connector Power connector 3-pin screw connector Power supply 12-30 VDC, Reverse voltage protection and short circuit protection Power consumption Typical: 90 mA @ 24 V (2.2 W) Max: 3 W Storage temperature -40 to +85 °C Operating temperature -25 to +70 °C Humidity EN 600068-2-78: Damp heat, +40°C, 93% humidity for 4 days EN 60068-2-30: Damp heat, +25°C – +55°C, 95% RH, 2 cycles Vibration See datasheet Housing material Plastic, See datasheet for details Protection class IP20 Product weight 150 g Dimensions 27 x 144 x 98 mm (W x H x D) with connectors included Mounting DIN-rail Technical Data Anybus ® Communicator ™ - Modbus TCP to Modbus RTU/Serial SCM-1202-162 Version 1.13 Page 155 of 160 15., User Manual - Anybus Communicator Modbus TCP, ab0afe683b6442e380bc7f7ba77b9ce9, Anybus
